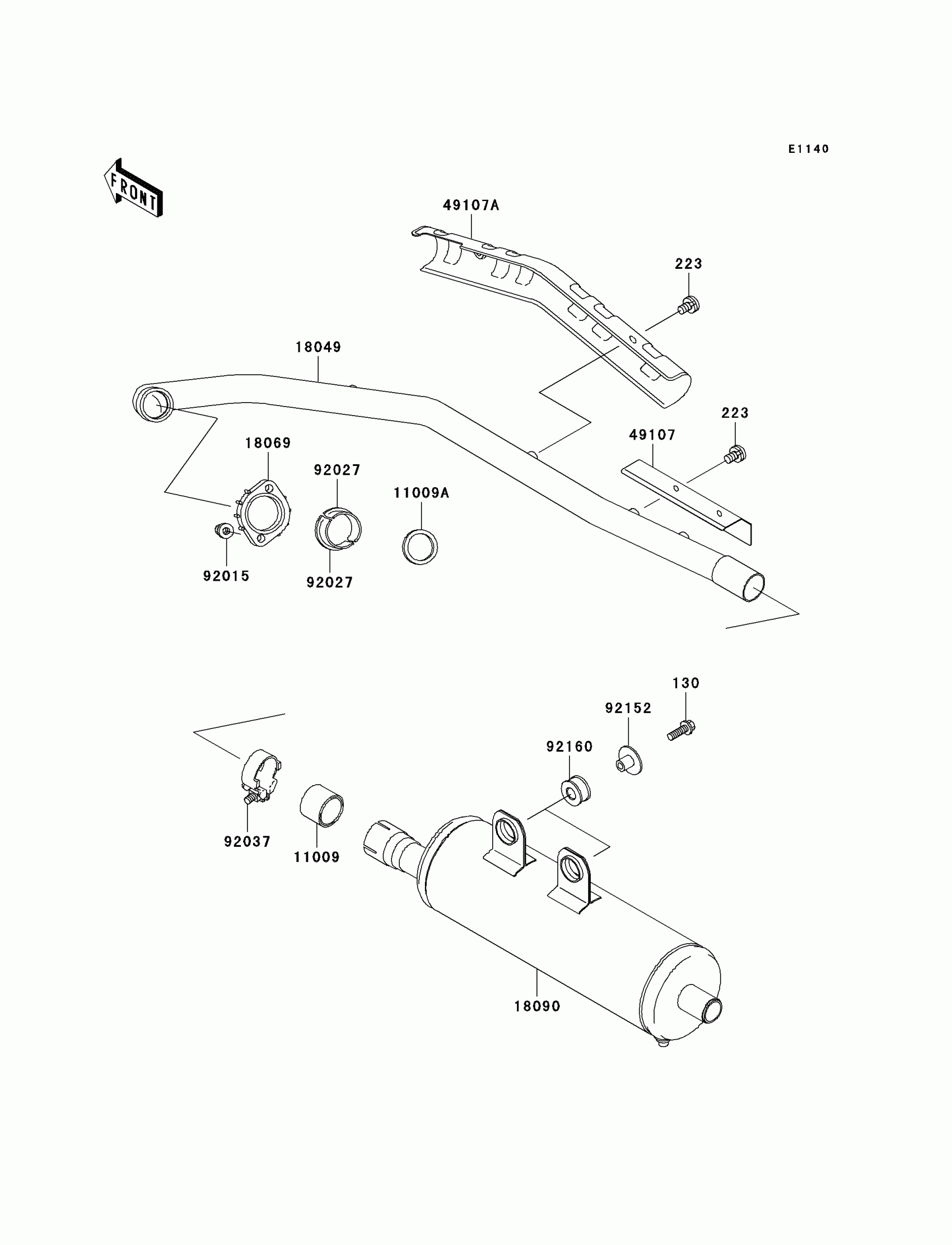

Kawasaki Prairie 300 Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X30

130J0830

Unavailable

223

SCREW-PAN-WS-CROS

223C0610

$3.14

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$18.50

11009A

GASKET,EXHAUST PIPE H

11009-1866

$6.29

18049

PIPE-EXHAUST

18049-1884

Unavailable

18069

HOLDER-EXHAUST PIPE

18069-1014

$14.19

18090

BODY-COMP-MUFFLER

18090-1675

$344.00

49107

COVER-EXHAUST PIPE

49107-1130

$37.51

49107A

COVER-EXHAUST PIPE

49107-1135

$59.02

92015

NUT,8MM

92015-1402

$3.57

92027

COLLAR,EXHAUST PIPE

92027-264

$3.60

92037

CLAMP,42MM

92037-1349

$9.84

92152

COLLAR,MUFFLER

92152-1152

$6.08

92160

DAMPER,MUFFLER

92160-1990

$3.98
