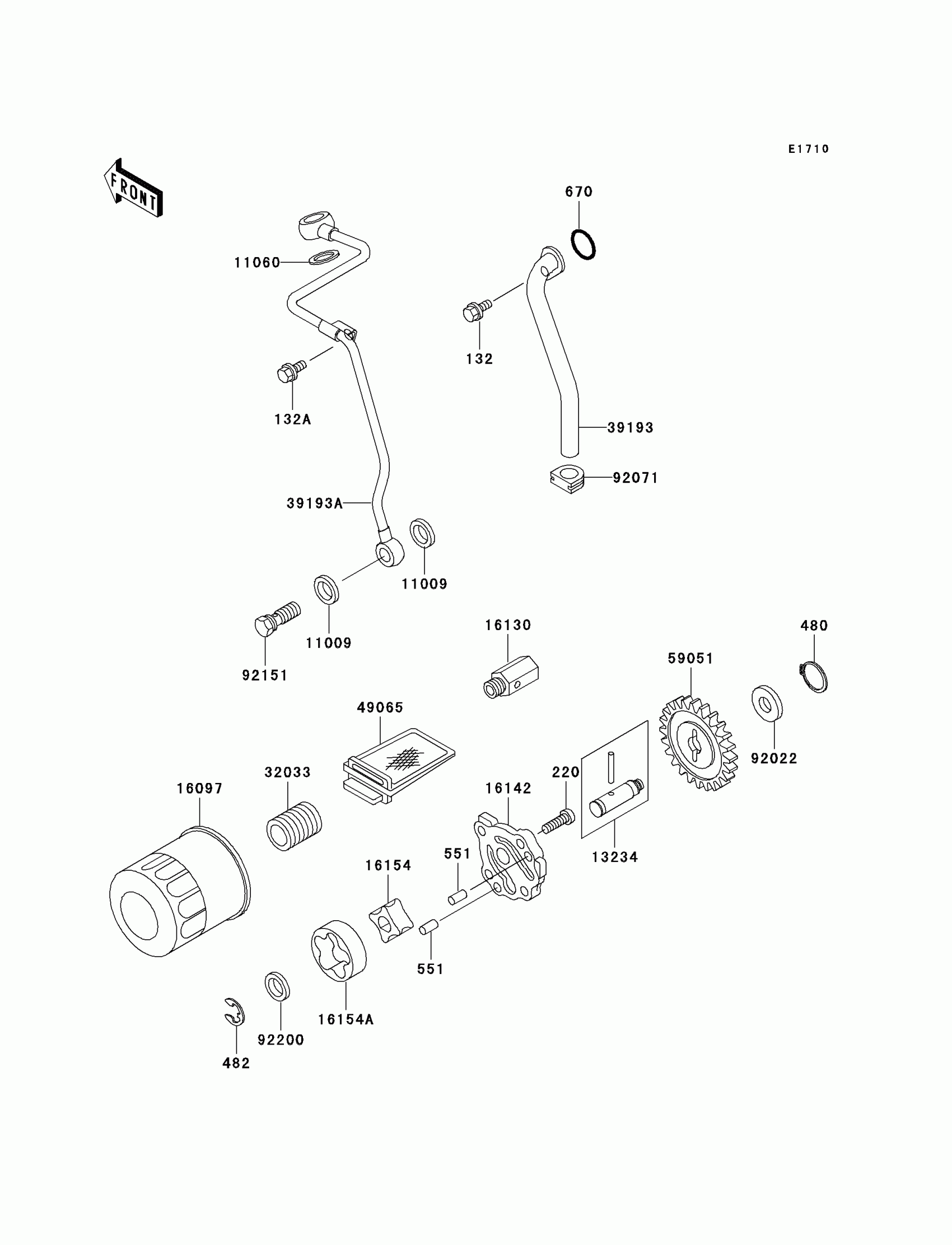

Kawasaki Prairie 300 Oil Pump/Oil Filter Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X10

132Y0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

551

PIN-DOWEL,6X12

551A0612

$0.78

670

O RING,12MM

670D2012

$2.19

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11060

GASKET,14X20X2

11060-1287

$2.36

13234

SHAFT-COMP

13234-1108

$8.03

16097

FILTER-ASSY-OIL

16097-1063

$11.00

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP

16142-1151

$40.40

16154

ROTOR-PUMP,INNER

16154-1120

Unavailable

16154A

ROTOR-PUMP,OUTER

16154-1121

Unavailable

32033

PIPE,OIL FILTER

32033-1535

$9.85

39193

PIPE-OIL

39193-1040

Unavailable

39193A

PIPE-OIL

39193-1041

$69.58

49065

FILTER-OIL

49065-1070

$13.36

59051

GEAR-SPUR,OIL PUMP,44T

59051-1362

$21.81

92022

WASHER,12.3X22X1.6

92022-1065

$3.58

92071

GROMMET

92071-1213

Unavailable

92151

BOLT,BANJO,10X23

92151-1349

Unavailable

92200

WASHER,7.7X13X1.0

92200-1107

Unavailable
