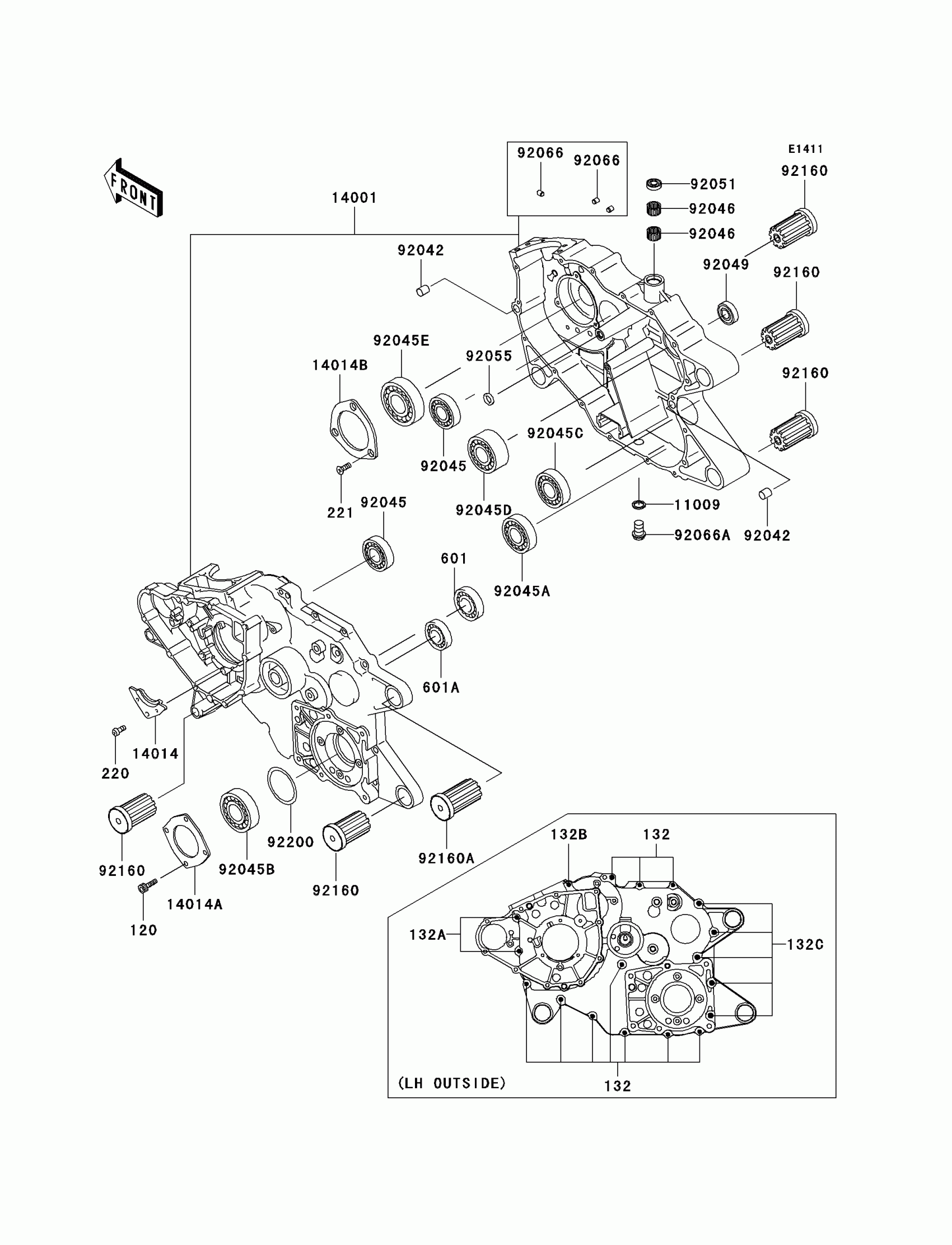

Kawasaki Prairie 300 Crankcase Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120P0616

Unavailable

132

BOLT-FLANGED-SMALL,6X35

132Y0635

Unavailable

132A

BOLT-FLANGED-SMALL

132Y0665

Unavailable

132B

BOLT-FLANGED-SMALL

132Y0685

Unavailable

132C

BOLT-FLANGED-SMALL,8X35

132Y0835

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

221

SCREW-CSK-CROS,6X16

221B0616

$0.54

601

BEARING-BALL

601A6204Z

$30.56

601A

BEARING-BALL

601A6302

$16.56

11009

GASKET

11009-2175

$0.90

14001

SET-CRANKCASE

14001-1242

$748.32

14014

PLATE,POSITIONING

14014-035

$4.61

14014A

PLATE-POSITION

14014-1108

$22.98

14014B

PLATE-POSITION

14014-1137

Unavailable

92042

PIN,DOWEL,12X14

92042-031

$4.93

92045

BEARING-BALL,6004TMB

92045-1118

$19.29

92045A

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92045B

BEARING-BALL,6305RHR4SH2

92045-1254

$47.67

92045C

BEARING-BALL,6204X15C

92045-1298

$22.32

92045D

BEARING-BALL,5206

92045-1329

$72.83

92045E

BEARING-BALL,63/32C3

92045-1364

$43.42

92046

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92049

SEAL-OIL,TC30458

92049-1451

$11.59

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,OD=18

92055-048

$3.66

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066A

PLUG,DRAIN

92066-2196

$2.98

92160

DAMPER,L=63.5

92160-1938

$25.75

92160A

DAMPER,L=70

92160-1939

$35.53

92200

WASHER,50X60.5X0.5

92200-1106

$9.98
