2002 Kawasaki Prairie 300 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

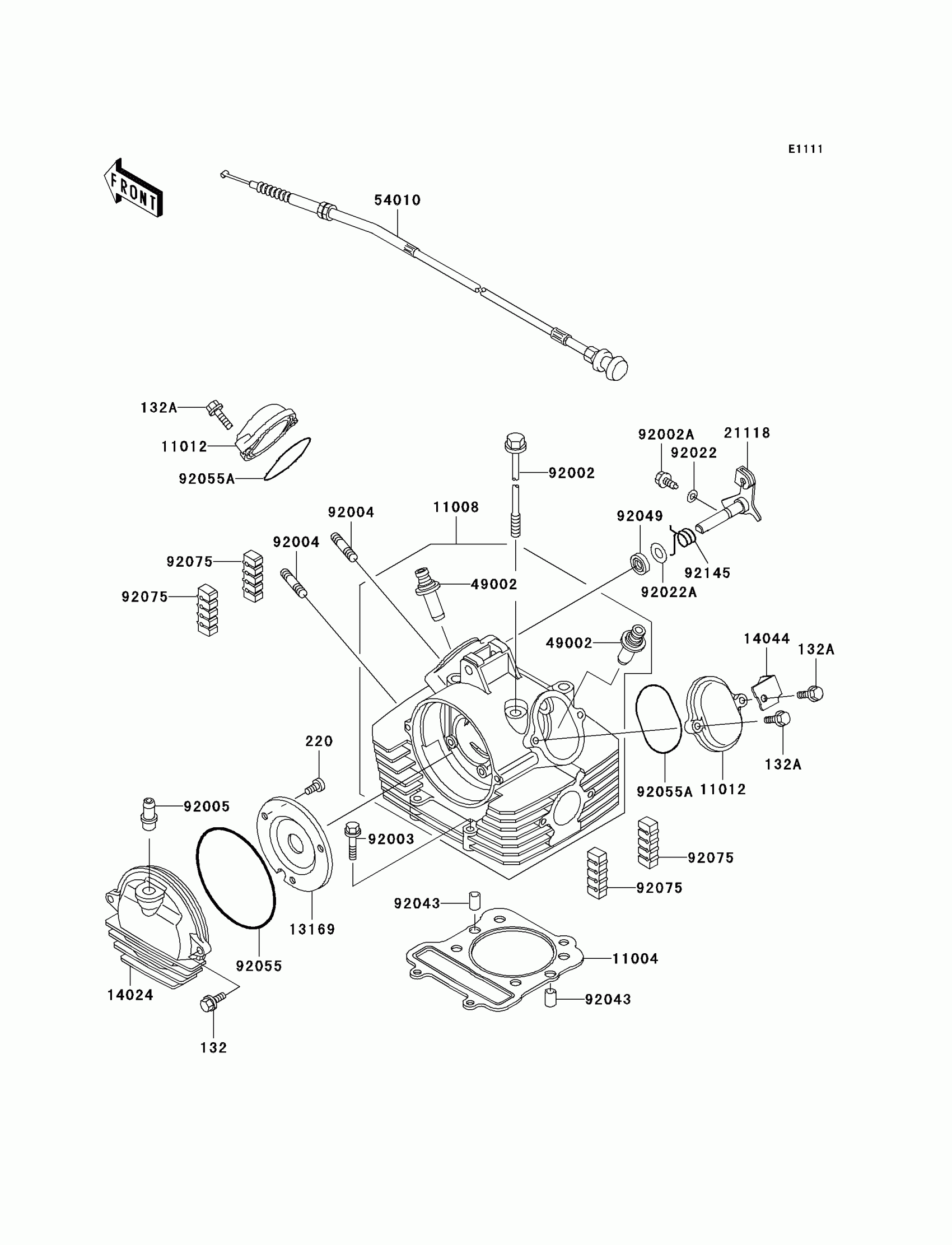

2002 Kawasaki Prairie 300 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132Y0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

220

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

11004

GASKET-HEAD

11004-1340

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1292

1
Out of stock

11012

CAP,ROCKER ARM

11012-1486

1
Out of stock

13169

PLATE,CAMSHAFT COVER

13169-1961

1
Out of stock

14024

COVER,CAMSHAFT

14024-1060

1

$70.35

In stock

14044

HOLDER-CABLE

14044-1095

1

$8.27

In stock

21118

DECOMPRESSOR

21118-1081

1
Out of stock

49002

GUIDE-VALVE

49002-1092

—
Out of stock

54010

CABLE,DECOMPRESSOR

54010-1113

1
Out of stock

92002

BOLT,8X233

92002-1515

1
Out of stock

92002A

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

1
Out of stock

92003

BOLT,6X32

92003-229

1
Out of stock

92004

STUD,8X30

92004-1121

1
Out of stock

92005

FITTING,BREATHER PIPE

92005-1124

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92022A

WASHER,10.2X20X0.5

92022-1649

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92049

SEAL-OIL,10X20X5

92049-1542

1
Out of stock

92055

"O" RING,99M/M

92055-107

1
Out of stock

92055A

RING-O,53.5X2.6

92055-112

1
Out of stock

92075

DAMPER

92075-1657

1
Out of stock

92145

SPRING

92145-1132

1
Out of stock
