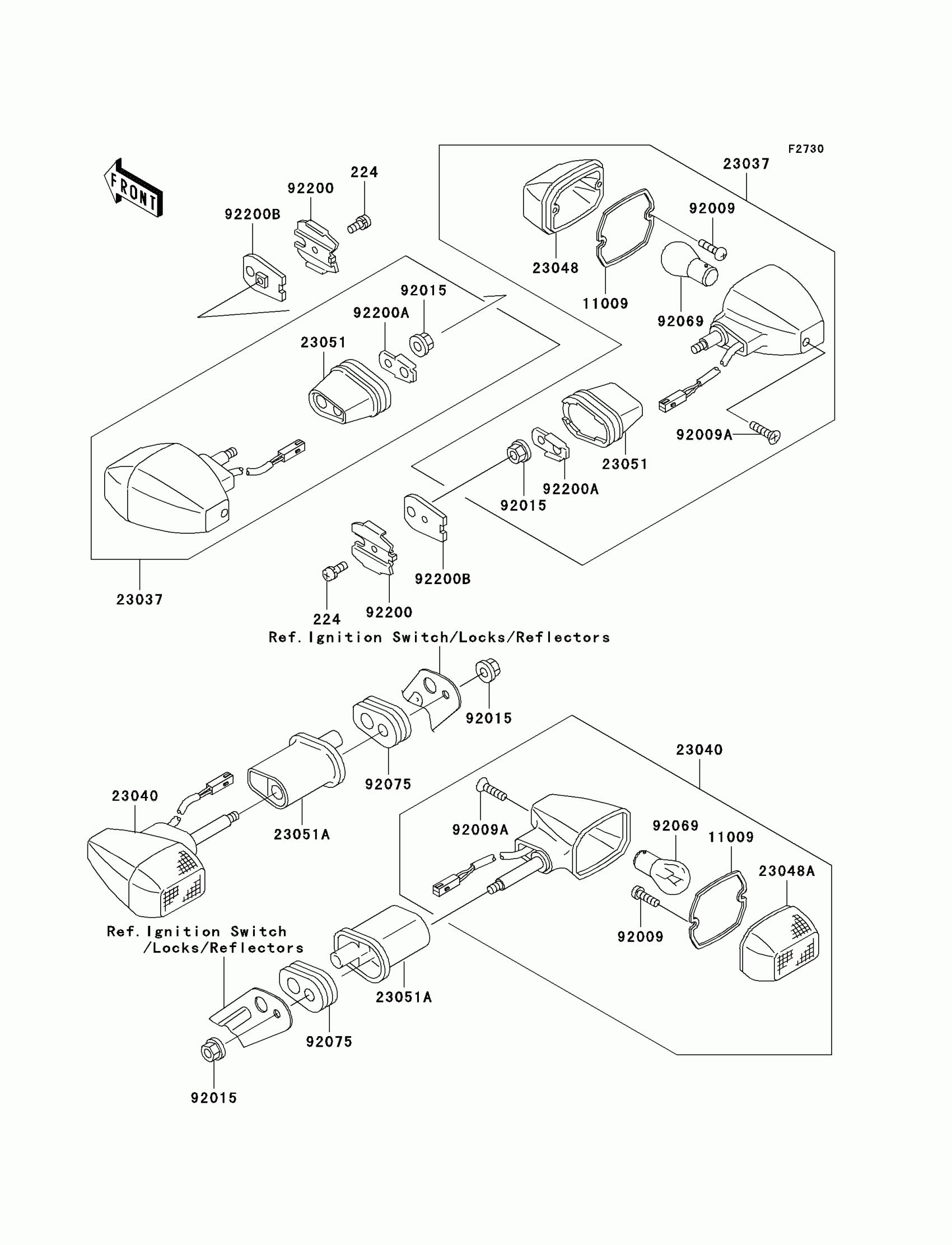

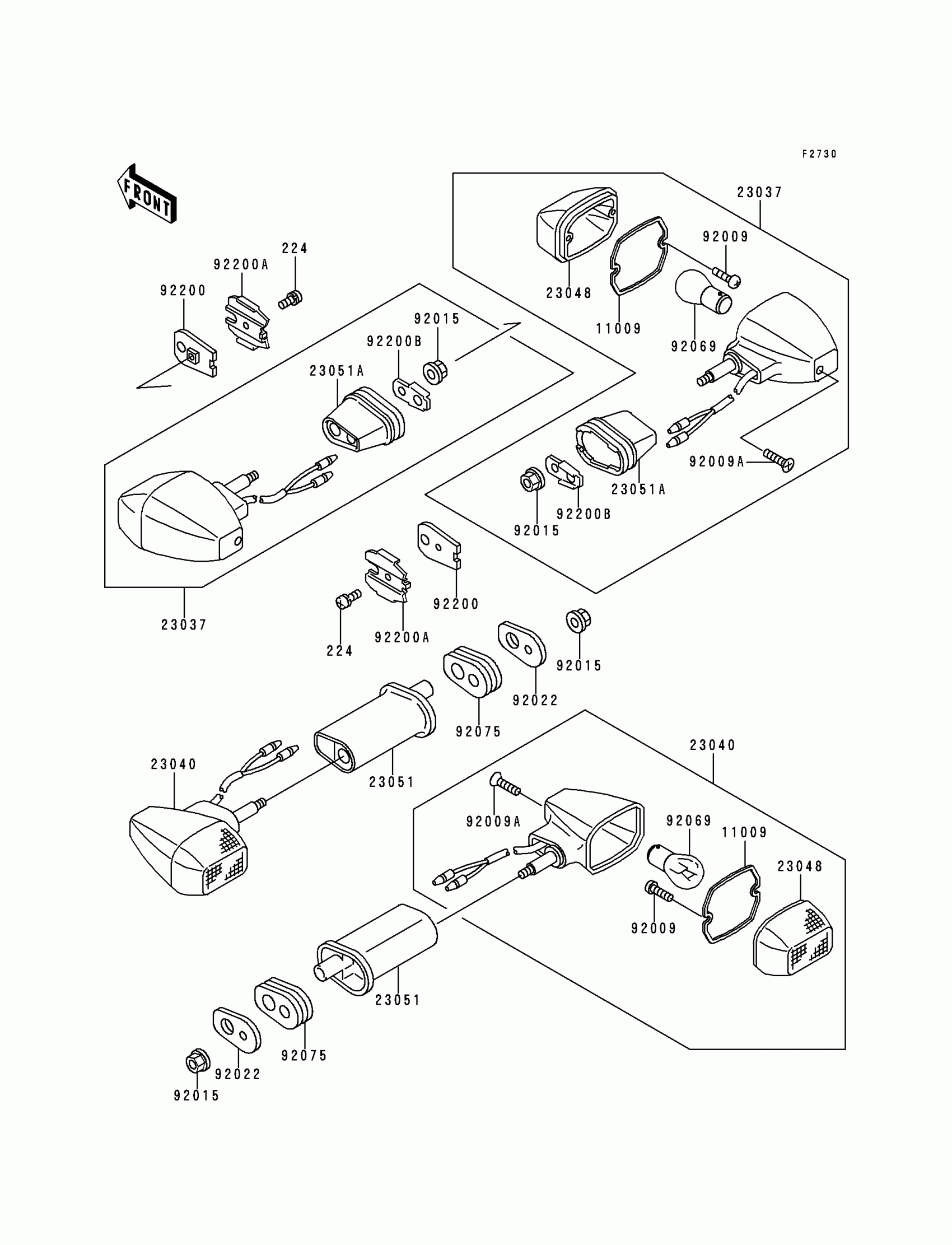

Kawasaki Ninja® ZX™-9R Turn Signals Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X8

224C0408

$2.79

11009

GASKET,SIGNAL LAMP

11009-1402

$4.18

23037

LAMP-ASSY-SIGNAL,FR

23037-1257

$58.40

23040

LAMP-SIGNAL,RR

23040-1195

Unavailable

23048

LENS-SIGNAL LAMP

23048-1054

$7.96

23051

BRACKET-SIGNAL LAMP

23051-1164

$8.70

23051A

BRACKET-SIGNAL LAMP,FR

23051-1207

$16.13

92009

SCREW,TAPPING,3X16

92009-1115

$1.30

92009A

SCREW,TAPPING,4X20

92009-1304

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,SIGNAL LAMP

92022-1672

$4.24

92069

BULB,12V 32CP(23W)

92069-055

$3.95

92075

DAMPER,SIGNAL LAMP

92075-1698

$7.30

92200

WASHER,SIGNAL LAMP

92200-1015

$4.72

92200A

WASHER,SIGNAL LAMP

92200-1016

$5.81

92200B

WASHER

92200-1021

$7.49
