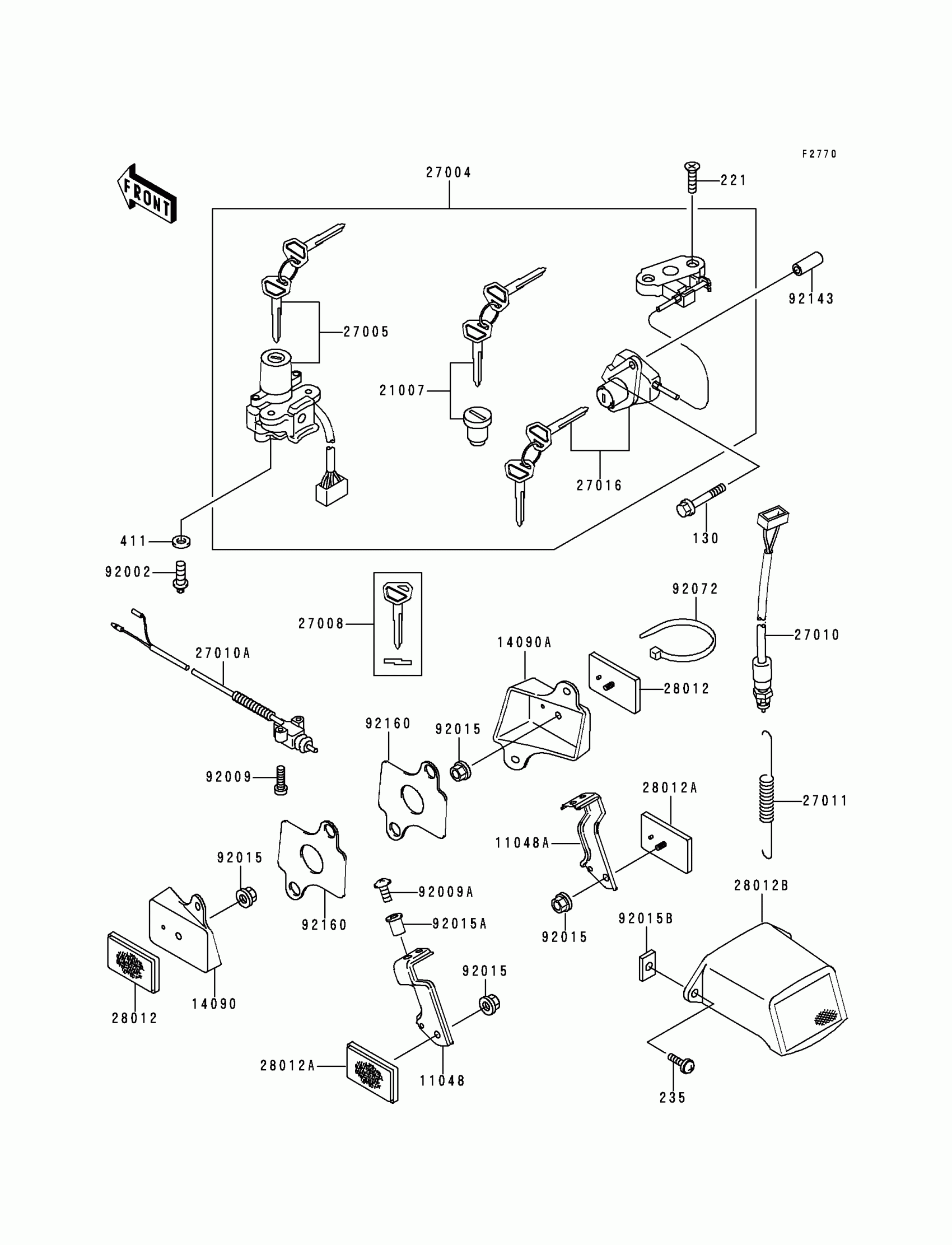

Find the part on the Ignition Switch/locks/reflectors diagram for your 1996 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

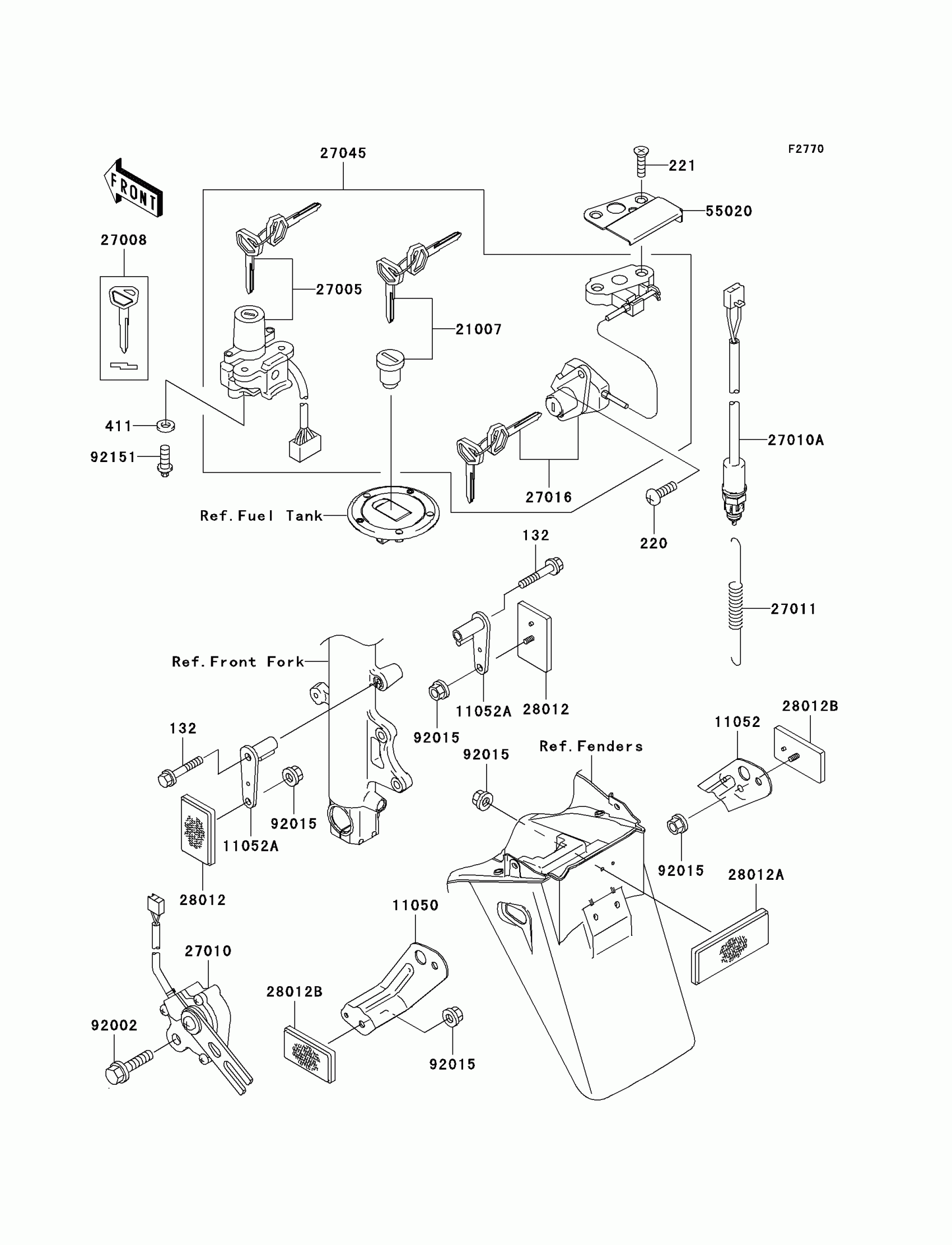

1996 Kawasaki Ninja® ZX™-9R Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X55,BLACK

130J0655

1
Out of stock

221

SCREW-CSK-CROS,6X28

221B0628

1
Out of stock

235

SCREW-PAN-WP-CROS,6X20

235C0620

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1
Out of stock

11048

BRACKET,REFLECTOR,RR,LH

11048-1783

1
Out of stock

11048A

BRACKET,REFLECTOR,RR,RH

11048-1784

1
Out of stock

14090

COVER,REFLECTOR,FR,LH

14090-1377

1
Out of stock

14090A

COVER,REFLECTOR,FR,RH

14090-1378

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5035

1
Out of stock

27004

SWITCH-ASSY

27004-5473

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-1180

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1170

1
Out of stock

27010

SWITCH,BRAKE LAMP

27010-1093

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1223

1
Out of stock

27011

SPRING,BRAKE LAMP SWITCH

27011-017

1
Out of stock

27016

LOCK-ASSY,SEAT

27016-5219

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

28012B

REFLECTOR-REFLEX,RR

28012-1066

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1
Out of stock

92009

SCREW,5X20

92009-1459

1
Out of stock

92009A

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92015B

NUT

92015-1918

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92143

COLLAR,6.8X10X42

92143-1072

1
Out of stock

92160

DAMPER,REFLECTOR

92160-1486

1
Out of stock
