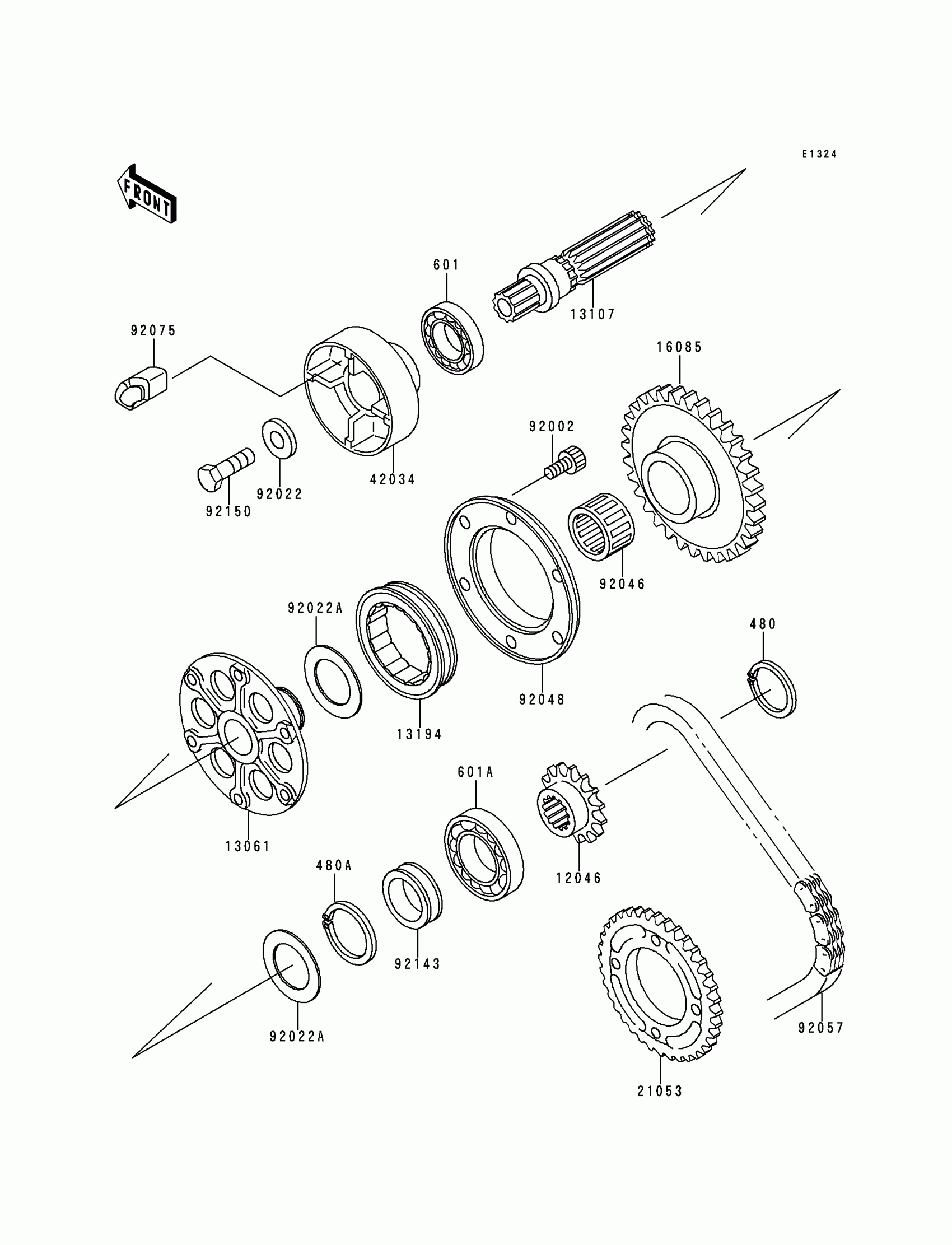

Kawasaki Ninja® ZX™-9R Generator Shaft Diagram

Description

Price

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.12

480A

CIRCLIP-TYPE-C,25MM

480J2500

$1.71

601

BEARING-BALL,#6203

601A6203

$11.12

601A

BEARING-BALL,#6204C3

601B6204

$10.76

12046

SPROCKET,DRIVEN,GENERATOR

12046-1127

$45.03

13061

BOSS,ONEWAY CLUTCH

13061-1197

$123.31

13107

SHAFT,ONEWAY CLUTCH

13107-1277

$191.81

13194

CLUTCH-ONEWAY

13194-1095

$169.42

16085

GEAR,ONEWAY CLUTCH

16085-1173

$121.35

21053

SPROCKET-ASSY

21053-1063

Unavailable

42034

COUPLING

42034-1055

$84.97

92002

BOLT,SOCKET,6X12

92002-1796

$3.72

92022

WASHER,8X22X3

92022-1518

$3.95

92022A

WASHER,25.3X32X0.5

92022-225

$4.37

92046

BEARING-NEEDLE,K253020S

92046-1022

Unavailable

92048

RACE,ONEWAY CLUTCH

92048-1068

$65.27

92057

CHAIN,GENERATOR,81RH2515M

92057-1322

$100.93

92075

DAMPER,COUPLING

92075-1790

$9.29

92143

COLLAR

92143-1466

$20.73

92150

BOLT,8X20

92150-1488

$8.44
