1996 Kawasaki Ninja® ZX™-9R Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1996 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

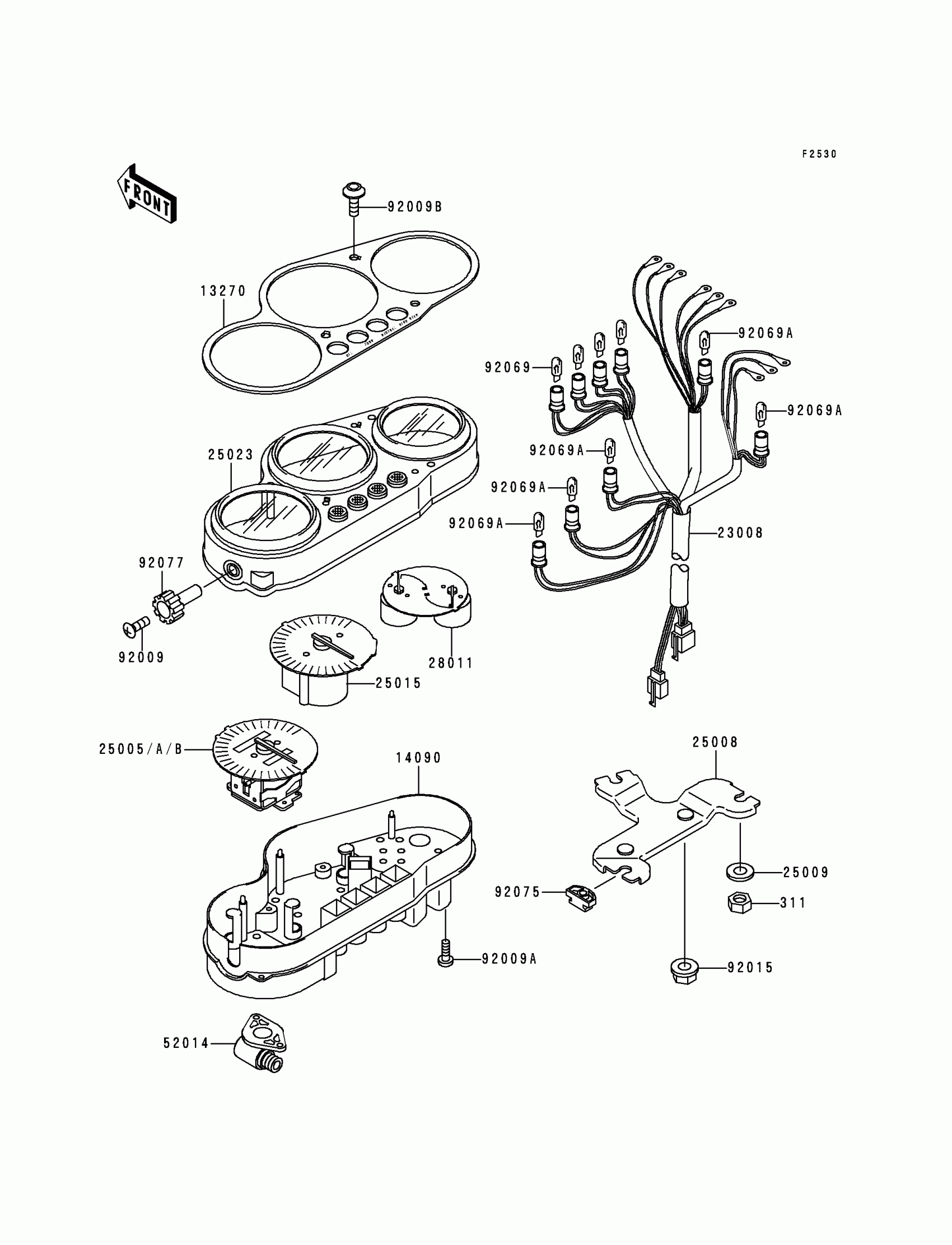

1996 Kawasaki Ninja® ZX™-9R Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX

311C0500

1
Out of stock

13270

PLATE,METER PANNEL

13270-1156

1
Out of stock

14090

COVER,METER HOUSING

14090-1402

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1528

1
Out of stock

25008

BRACKET-METER

25008-1202

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25015

TACHOMETER,X1000R/MIN

25015-1326

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1212

1
Out of stock

28011

METER,FUEL&TEMP

28011-1143

1
Out of stock

52014

ELBOW

52014-1081

1
Out of stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1593

1
Out of stock

92009B

SCREW,TAPPING,5X16

92009-1720

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92075

DAMPER,METER BRACKET

92075-1581

1
Out of stock

92077

KNOB,METER

92077-1073

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1552

1
Out of stock

25005B

SPEEDOMETER,MPH

25005-1563

1
Out of stock
