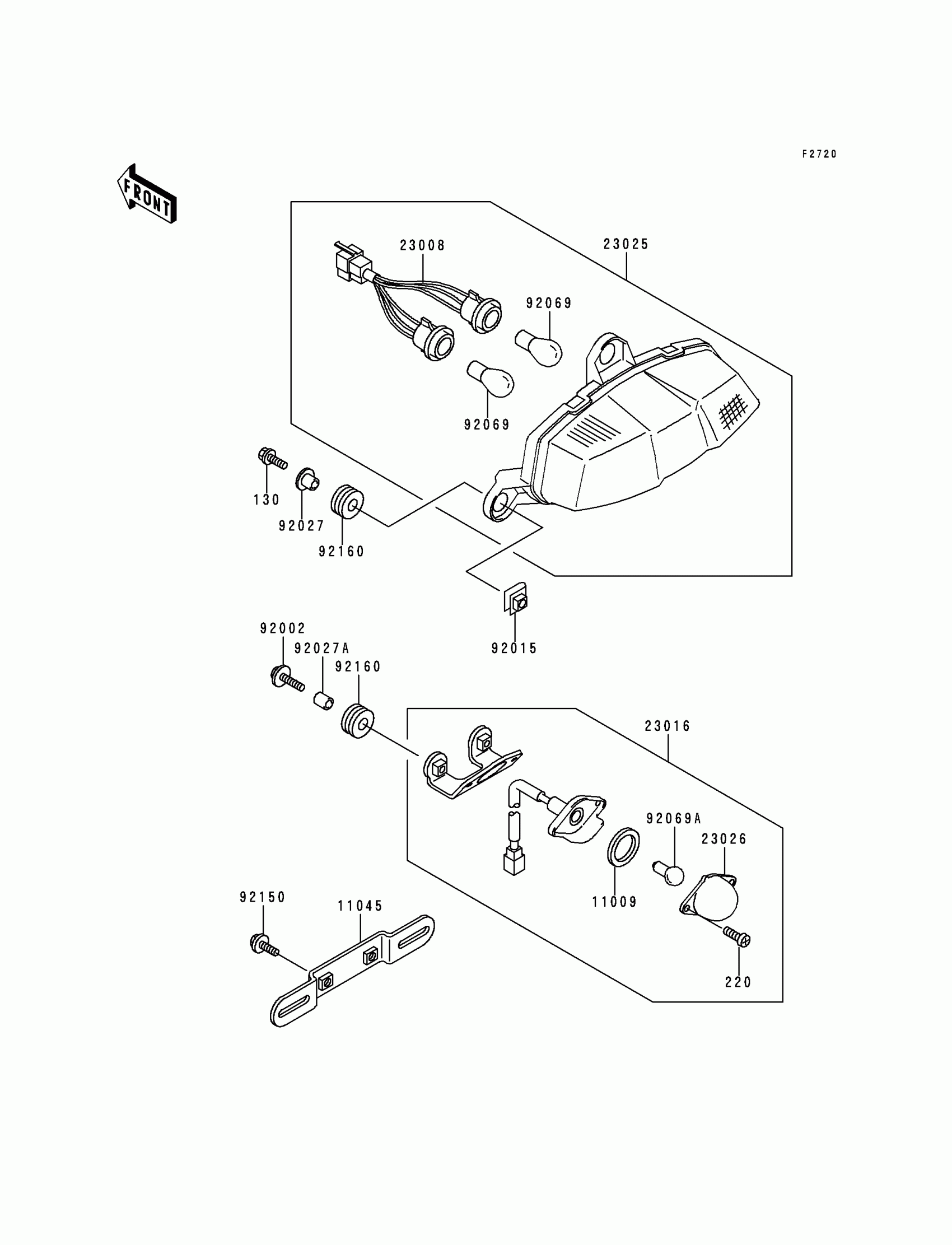

Kawasaki Ninja® ZX™-9R Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130H0625

Unavailable

220

SCREW PAN HEAD 4X10

220B0410

Unavailable

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.14

11045

BRACKET,LICENSE

11045-1387

$12.66

23008

SOCKET-ASSY,TAIL LAMP

23008-1413

$36.21

23016

LAMP-ASSY,LICENSE PLATE

23016-1053

$77.63

23025

LAMP-TAIL

23025-1238

$174.75

23026

LENS,LAMP

23026-1054

$9.02

92002

BOLT,6X25

92002-1135

$3.85

92015

NUT,6MM

92015-1094

$6.55

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92027A

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 27/8W

92069-059

$6.19

92069A

BULB,12V 8W

92069-1012

Unavailable

92150

BOLT,6X16

92150-1909

$3.42

92160

DAMPER

92160-1162

$3.81
