1996 Kawasaki Ninja® ZX™-9R Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1996 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

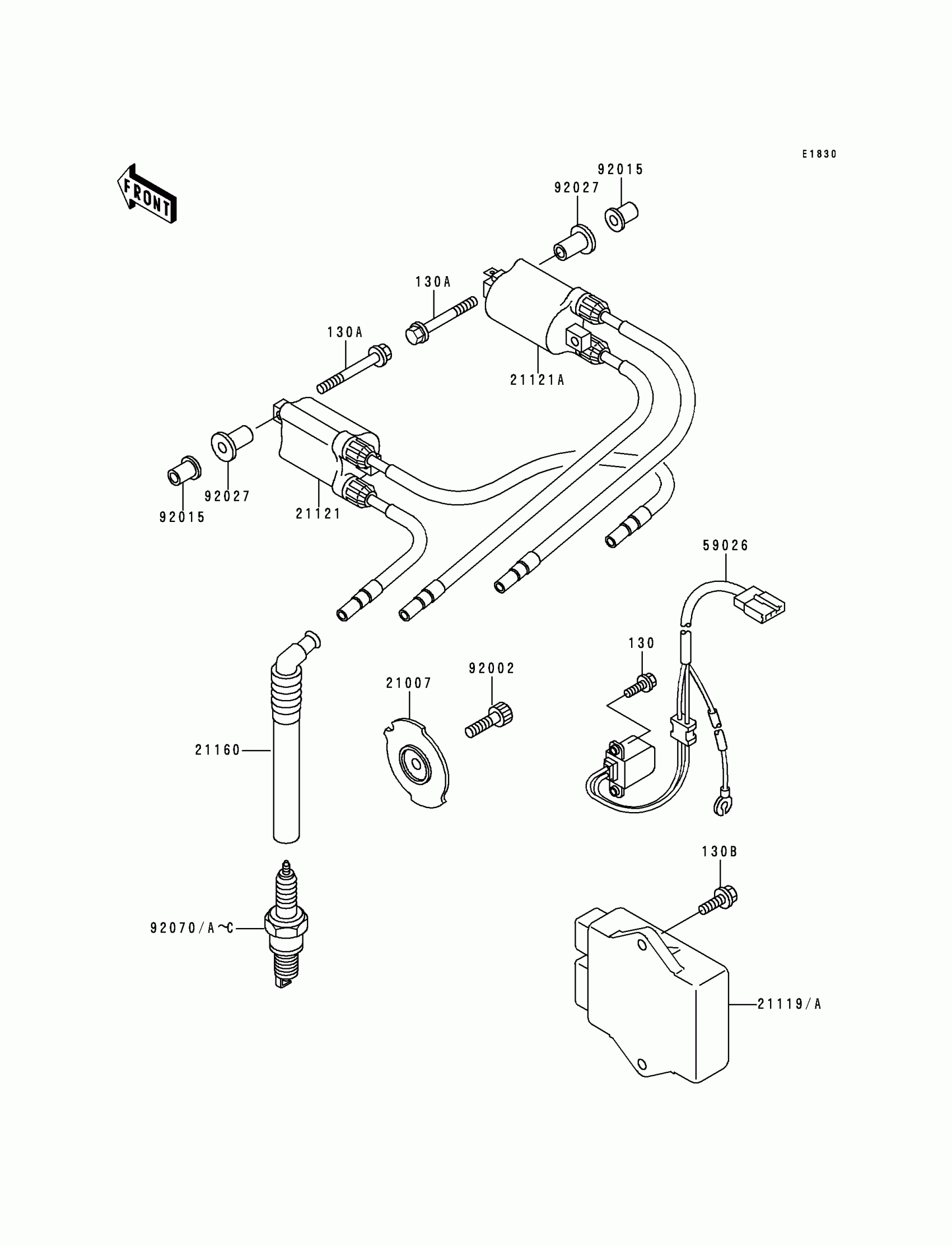

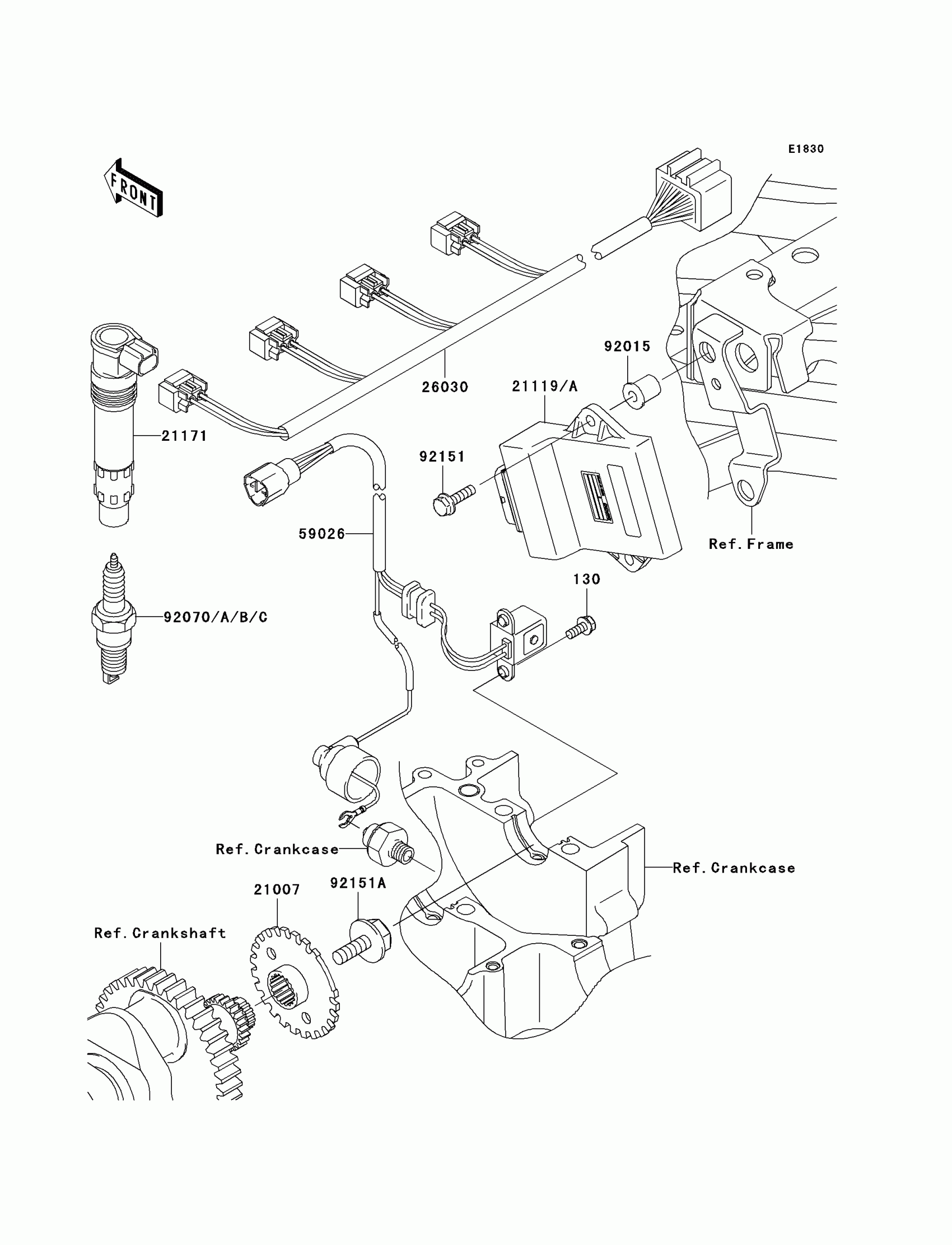

1996 Kawasaki Ninja® ZX™-9R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

130A

BOLT-FLANGED,6X45

130G0645

1
Out of stock

130B

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

21007

ROTOR,PULSING

21007-1222

1
Out of stock

21119A

IGNITER

21119-1444

1
Out of stock

21121

COIL-IGNITION,#1

21121-1237

1
Out of stock

21121A

COIL-IGNITION,#2

21121-1238

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1088

1
Out of stock

59026

COIL-PULSING

59026-1104

1
Out of stock

92002

BOLT,SOCKET,8X20

92002-1178

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92027

COLLAR

92027-195

1
Out of stock

92070

PLUG-SPARK,CR9EK(NGK)

92070-1145

1
Out of stock

92070A

PLUG-SPARK,CR8EK(NGK)

92070-1158

1
Out of stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock
