1993 Kawasaki Ninja® ZX™-11 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

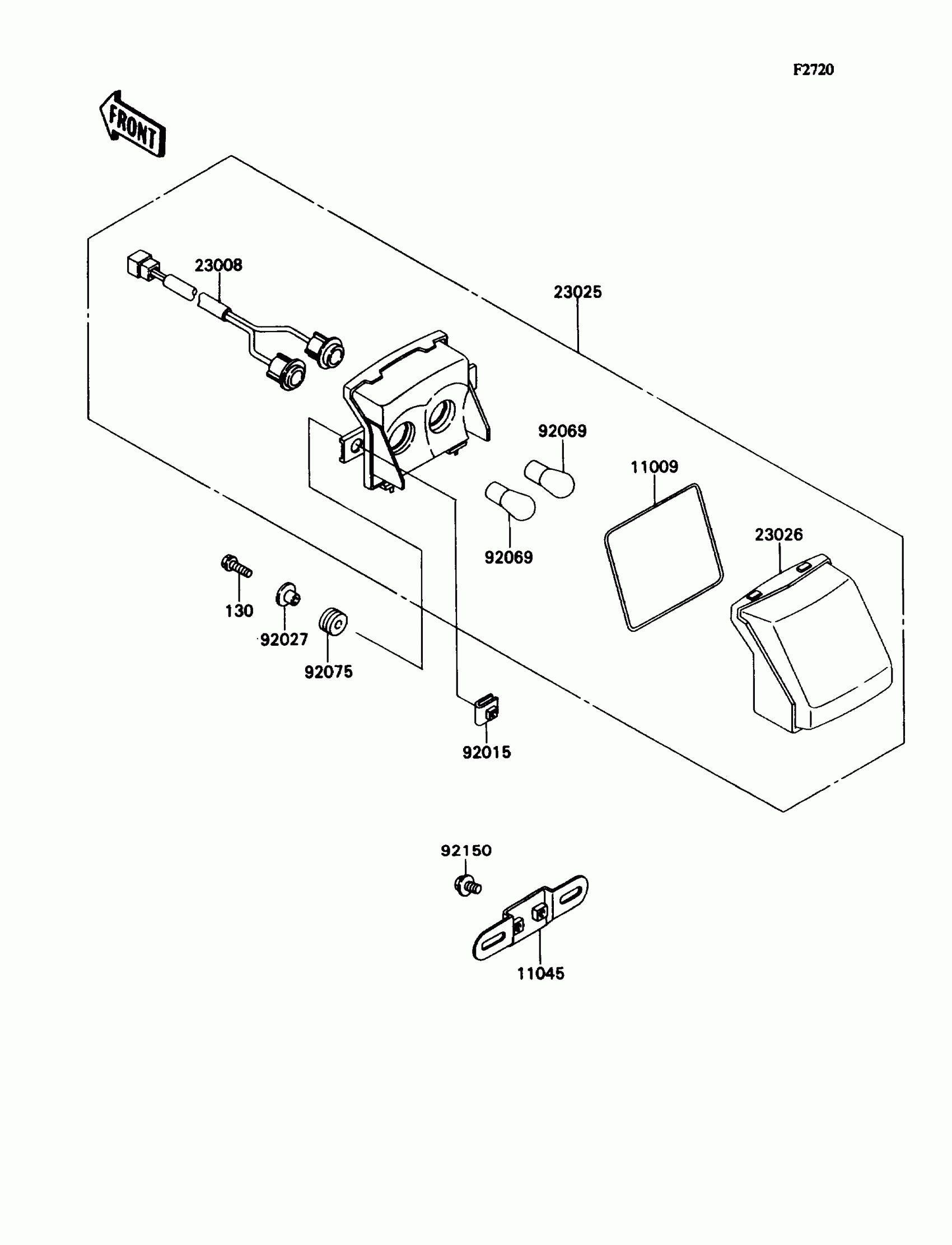

1993 Kawasaki Ninja® ZX™-11 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP LENS

11009-1875

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1
Out of stock

23008

SOCKET-ASSY,TAIL LAMP

23008-1364

1
Out of stock

23025

LAMP-TAIL

23025-1200

1
Out of stock

23026

LENS,TAIL LAMP

23026-1117

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

130

BOLT-FLANGED,6X25

130H0625

1
Out of stock
