1993 Kawasaki Ninja® ZX™-11 Ignition Switch Diagram

← All diagrams

Find the part on the Ignition Switch diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

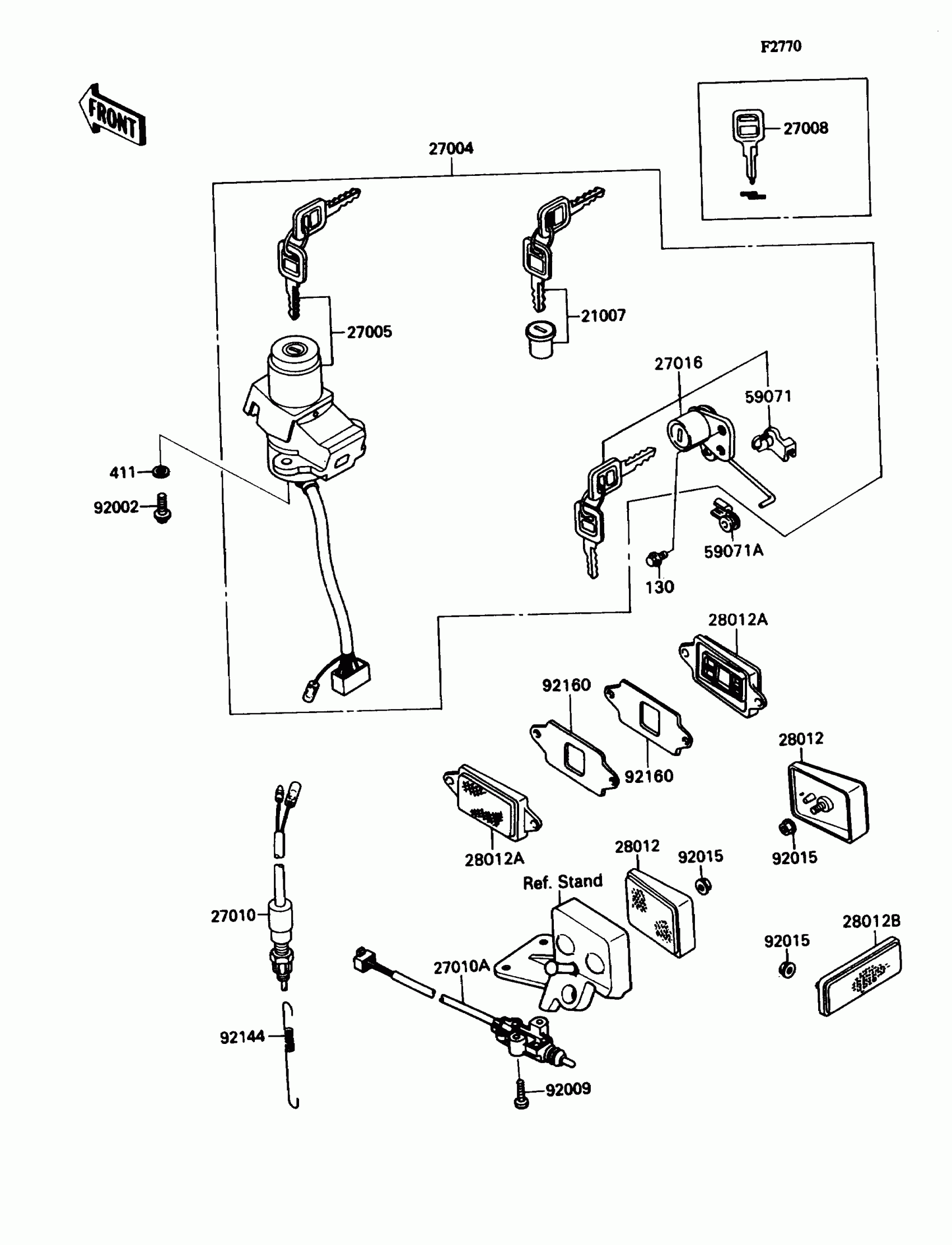

1993 Kawasaki Ninja® ZX™-11 Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,LOCK,TANK CAP

21007-5027

1
Out of stock

27004

SWITCH-ASSY

27004-5382

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5081

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,BRAKE LAMP

27010-1093

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1226

1
Out of stock

27016

LOCK-ASSY,SEAT

27016-5165

1
Out of stock

28012

REFLECTOR-REFLEX,RR

28012-1056

1
Out of stock

28012A

REFLECTOR-REFLEX,FR,SIDE

28012-1068

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

59071

JOINT

59071-1103

1
Out of stock

59071A

JOINT

59071-1125

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1
Out of stock

92009

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1283

1
Out of stock

92160

DAMPER,REFLECTOR

92160-1192

1
Out of stock

130

BOLT-FLANGED,5X10

130B0510

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1
Out of stock
