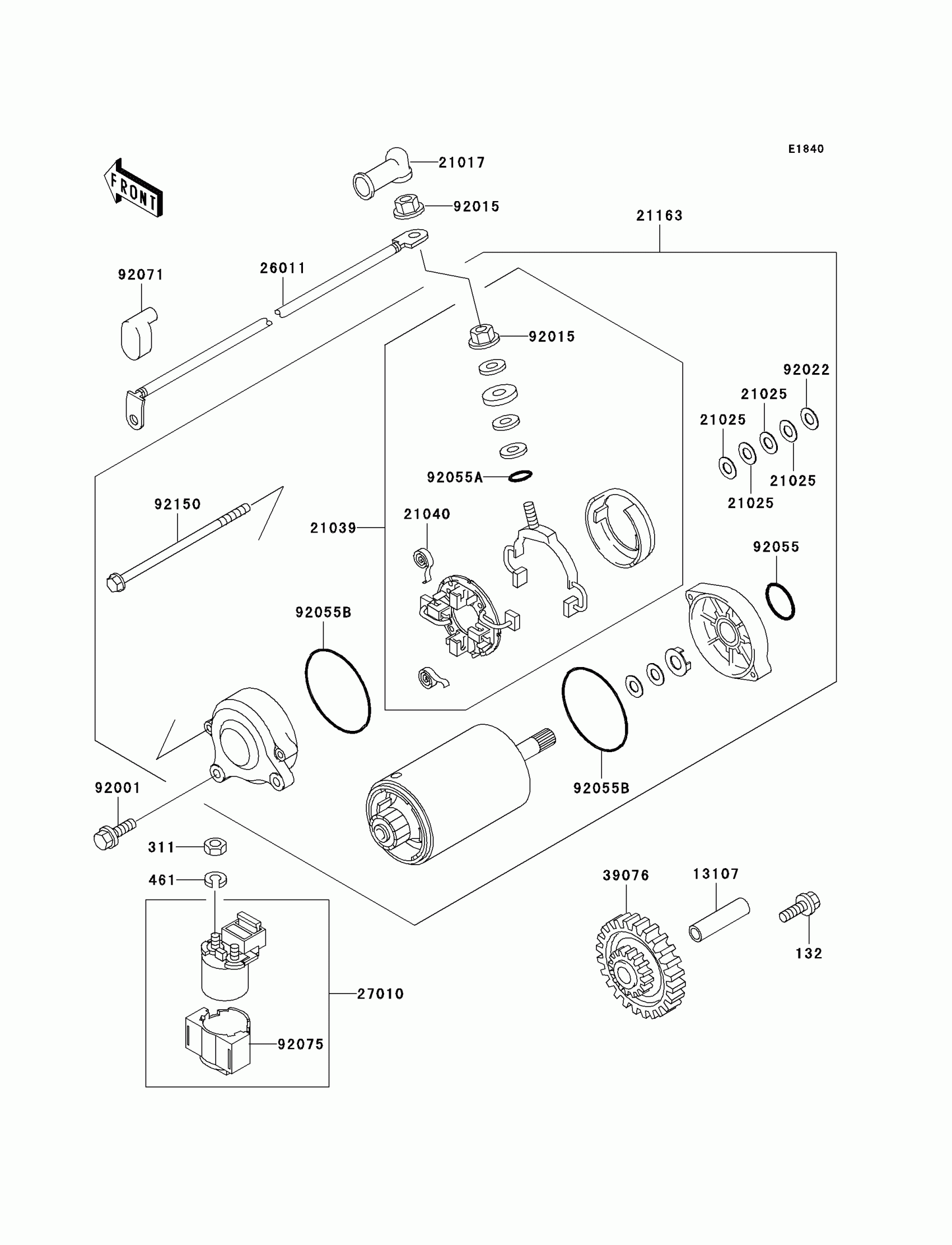

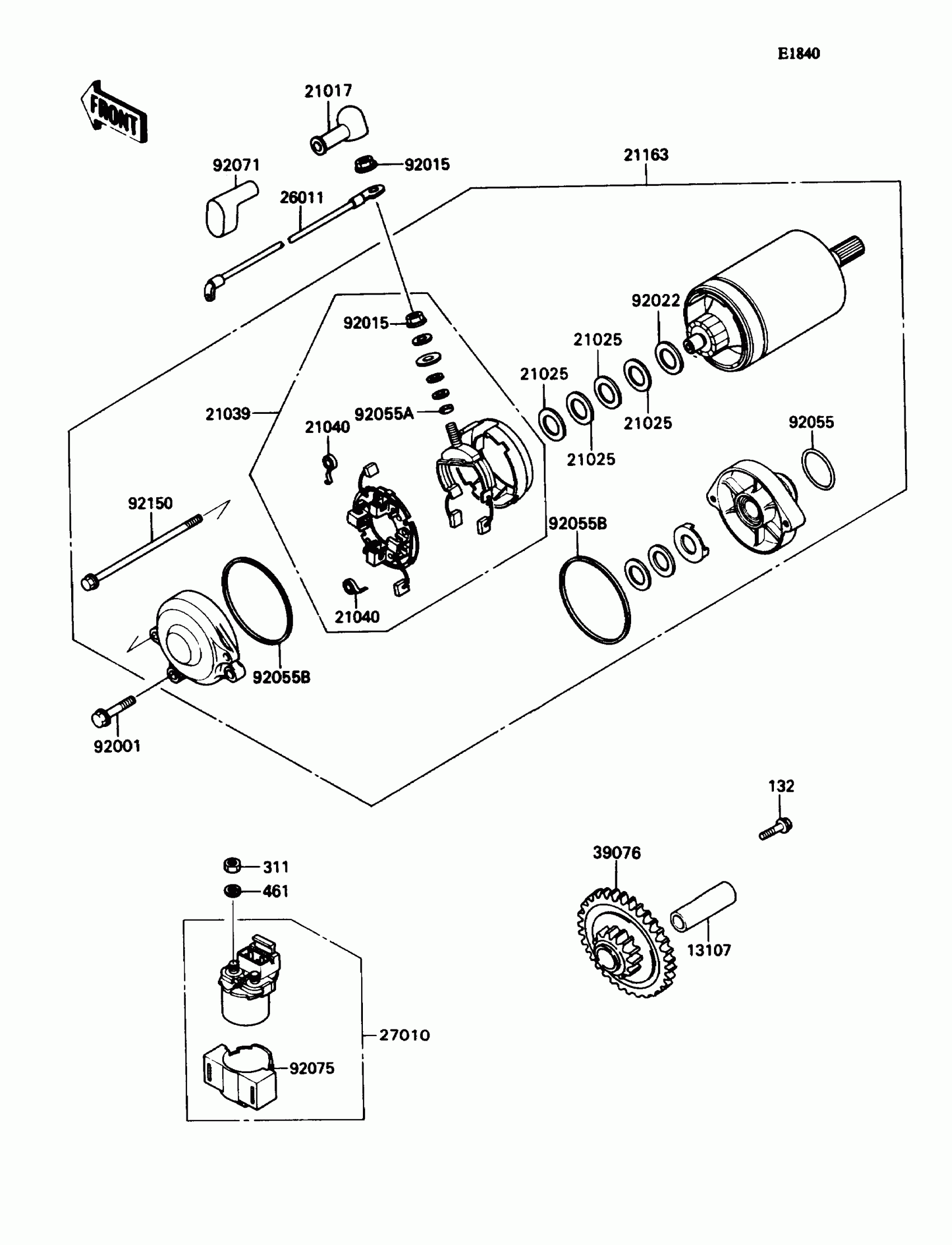

Kawasaki Ninja® ZX™-11 Starter Motor Diagram

Description

Price

13107

SHAFT,IDLE GEAR

13107-1106

$15.76

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21039

BRUSH,CARBON

21039-1060

$85.95

21040

SPRING-BRUSH

21040-1055

$8.24

21163

STARTER-ELECTRIC

21163-1161

$546.12

26011

WIRE-LEAD,STARTER MOTOR

26011-1479

Unavailable

27010

SWITCH,MAGNETIC

27010-1254

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-1061

$128.21

92001

BOLT,6X20

92001-1947

$3.88

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92071

GROMMET,TERMINAL

92071-1130

$10.85

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

92150

BOLT,5X110

92150-1143

$9.68

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

311

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
