1993 Kawasaki Ninja® ZX™-11 Ignition Coil Diagram

← All diagrams

Find the part on the Ignition Coil diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

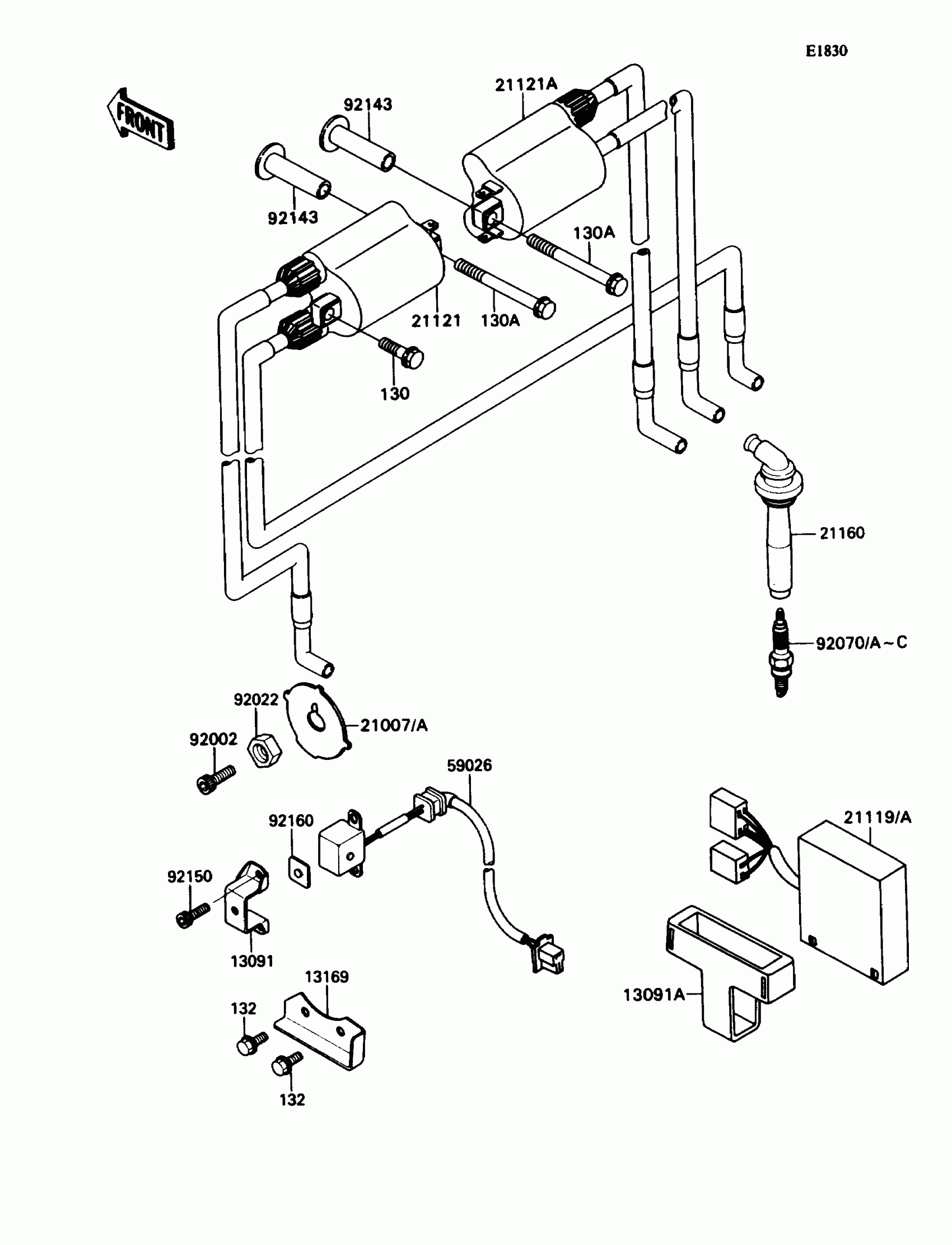

1993 Kawasaki Ninja® ZX™-11 Ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER

13091-1562

1

$8.73

In stock

13091A

HOLDER,IGNITER

13091-1670

1
Out of stock

13169

PLATE,CHAIN GUIDE

13169-1748

1

$14.63

In stock

21007A

ROTOR,PULSING

21007-1214

1

$39.79

In stock

21119A

IGNITER

21119-1303

1

$752.57

In stock

21121

COIL-IGNITION,#1

21121-1166

1
Out of stock

21121A

COIL-IGNITION,#2

21121-1167

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1075

1

$49.18

In stock

59026

COIL-PULSING

59026-1101

1
Out of stock

92002

BOLT,SOCKET,8X25

92002-1442

1

$4.01

In stock

92022

WASHER,ROTOR

92022-1497

1

$9.29

In stock

92070

PLUG-SPARK,C9E(NGK)

92070-1142

1

$4.54

In stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92143

COLLAR

92143-1428

1

$15.71

In stock

92150

BOLT,SOCKET,5X14

92150-1180

1

$3.53

In stock

92160

DAMPER

92160-1091

1

$4.61

In stock

130

BOLT-FLANGED,6X30

130G0630

1
Out of stock

130A

BOLT-FLANGED,6X60

130G0660

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock
