1993 Kawasaki Ninja® ZX™-11 Electrical Equipment Diagram

← All diagrams

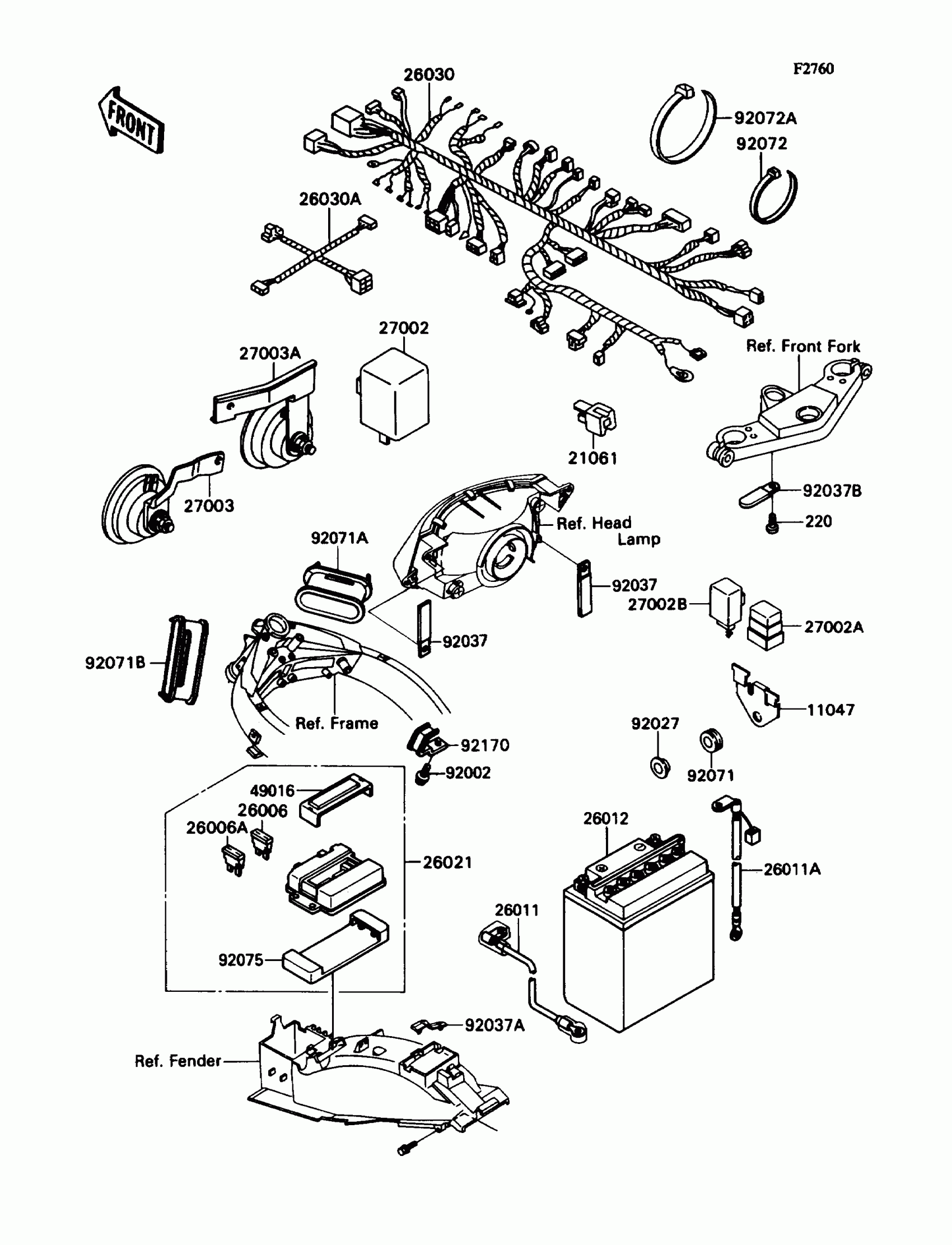

Find the part on the Electrical Equipment diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Ninja® ZX™-11 Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,RELAY

11047-1111

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1464

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1477

1
Out of stock

26012

BATTERY,12V 15AH,FB14L-A2(K)

26012-1224

1
Out of stock

26021

JUNCTION BOX

26021-1077

1
Out of stock

26030

HARNESS,MAIN

26030-1005

1
Out of stock

26030A

HARNESS,FR

26030-1006

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-1060

1
Out of stock

27002A

RELAY-ASSY,FUEL SENSOR

27002-1072

1
Out of stock

27002B

RELAY-ASSY,FUEL LAMP

27002-1073

1
Out of stock

27003

HORN,LH

27003-1320

1
Out of stock

27003A

HORN,RH

27003-1332

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1125

1
Out of stock

92002

BOLT,6X10

92002-1628

1
Out of stock

92002

BOLT,6X10

92002-1628

1
Out of stock

92027

COLLAR

92027-153

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037B

CLAMP,L=45

92037-1539

1
Out of stock

92071

GROMMET

92071-1115

1
Out of stock

92071A

GROMMET,HARNESS,RH

92071-1170

1
Out of stock

92071B

GROMMET,HARNESS,LH

92071-1180

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92072A

BAND,L=365

92072-1197

1
Out of stock

92075

DAMPER,JUNCTION BOX

92075-1688

1
Out of stock

92170

CLAMP,HARNESS

92170-1024

1
Out of stock

220

SCREW-PAN-CROS,5X10

220C0510

1
Out of stock
