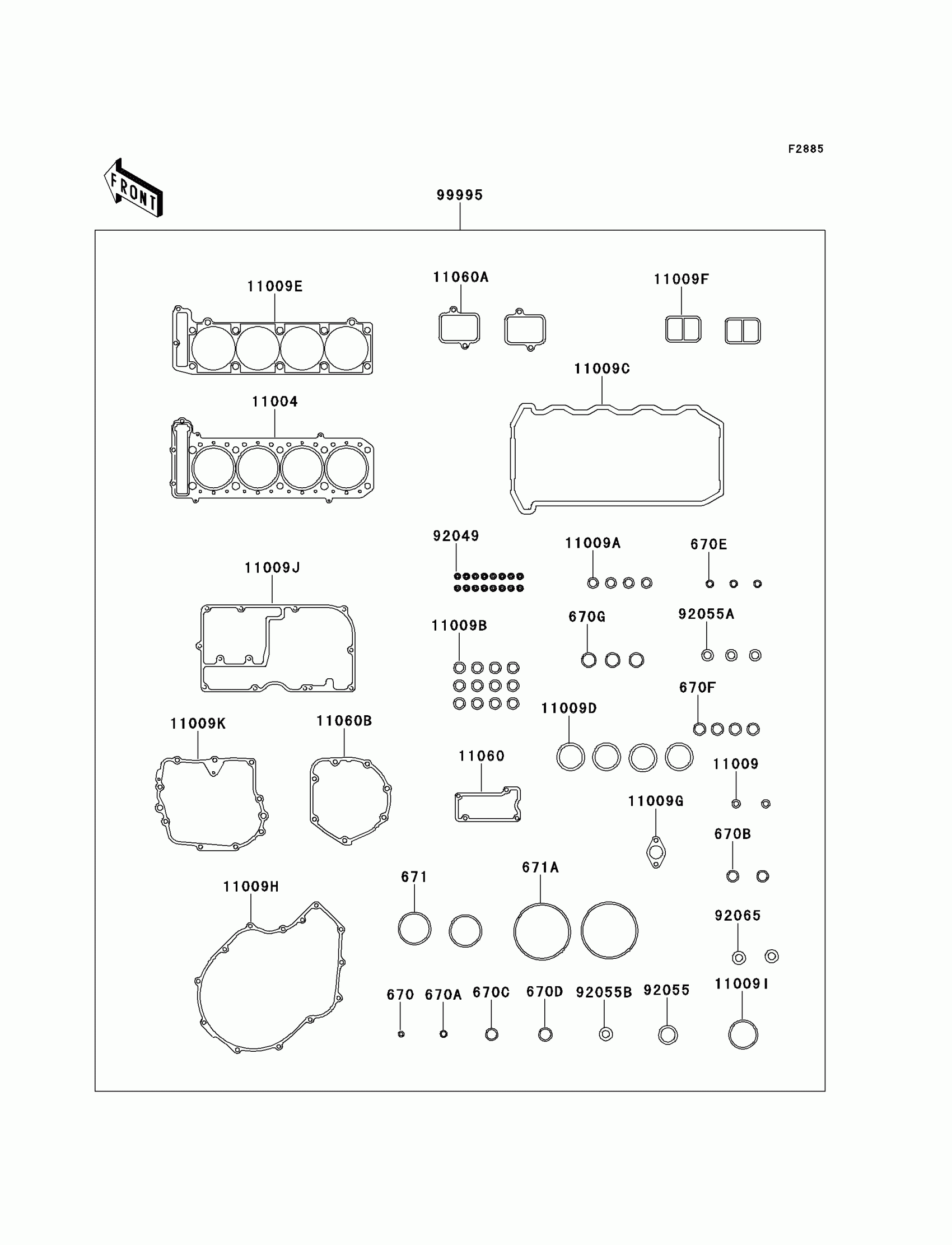

Kawasaki Ninja® ZX™-11 Gasket Kit Diagram

#

Description
Price

11004

GASKET-HEAD

11004-1248

$153.84

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

11009A

GASKET,12.5X18X1.5

11009-1376

$1.35

11009B

GASKET,14X19.5X1.4

11009-1461

$4.04

11009C

GASKET,HEAD COVER

11009-1724

$74.95

11009D

GASKET,EXHAUST PIPE H

11009-1840

$6.23

11009E

GASKET,CYLINDER BASE

11009-1847

$36.58

11009F

GASKET,REED VALVE

11009-1857

$8.25

11009G

GASKET,TENSIONER

11009-1858

$3.52

11009H

GASKET,CLUTCH COVER

11009-1860

Unavailable

11009I

GASKET,MUFFLER CONNECTING

11009-1888

$48.40

11009J

GASKET,OIL PAN

11009-1981

$22.69

11009K

GASKET,TRANSMISSION COVER

11009-1982

Unavailable

11060

GASKET,BREATHER BODY

11060-1339

Unavailable

11060A

GASKET,REED VALVE CAP

11060-1688

$3.77

11060B

GASKET,PULSING COVER

11060-1695

Unavailable

92049

SEAL-OIL,VSB58.558

92049-1218

$3.01

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,19.5MM

92055-077

$4.47

92055B

RING-O,20X2

92055-1146

$6.55

92065

GASKET,12X22X2

92065-097

$0.66

99995

GASKET-SET,ZX1100D/E/F

99995-1396

$519.71

670

O RING,6MM

670B1506

$0.98

670A

O RING,8MM

670B1508

$1.00

670B

O RING,15MM

670B2015

$1.08

670C

O RING,16MM

670B2016

$1.04

670D

O RING,18MM

670B2018

$1.08

670E

O RING,9MM

670D1509

$3.57

670F

O RING,16MM

670D2016

$1.24

670G

O RING,20MM

670D2020

$4.67

671

O RING,25MM

671B2525

$3.81

671A

O RING,90MM

671B2590

$7.54
