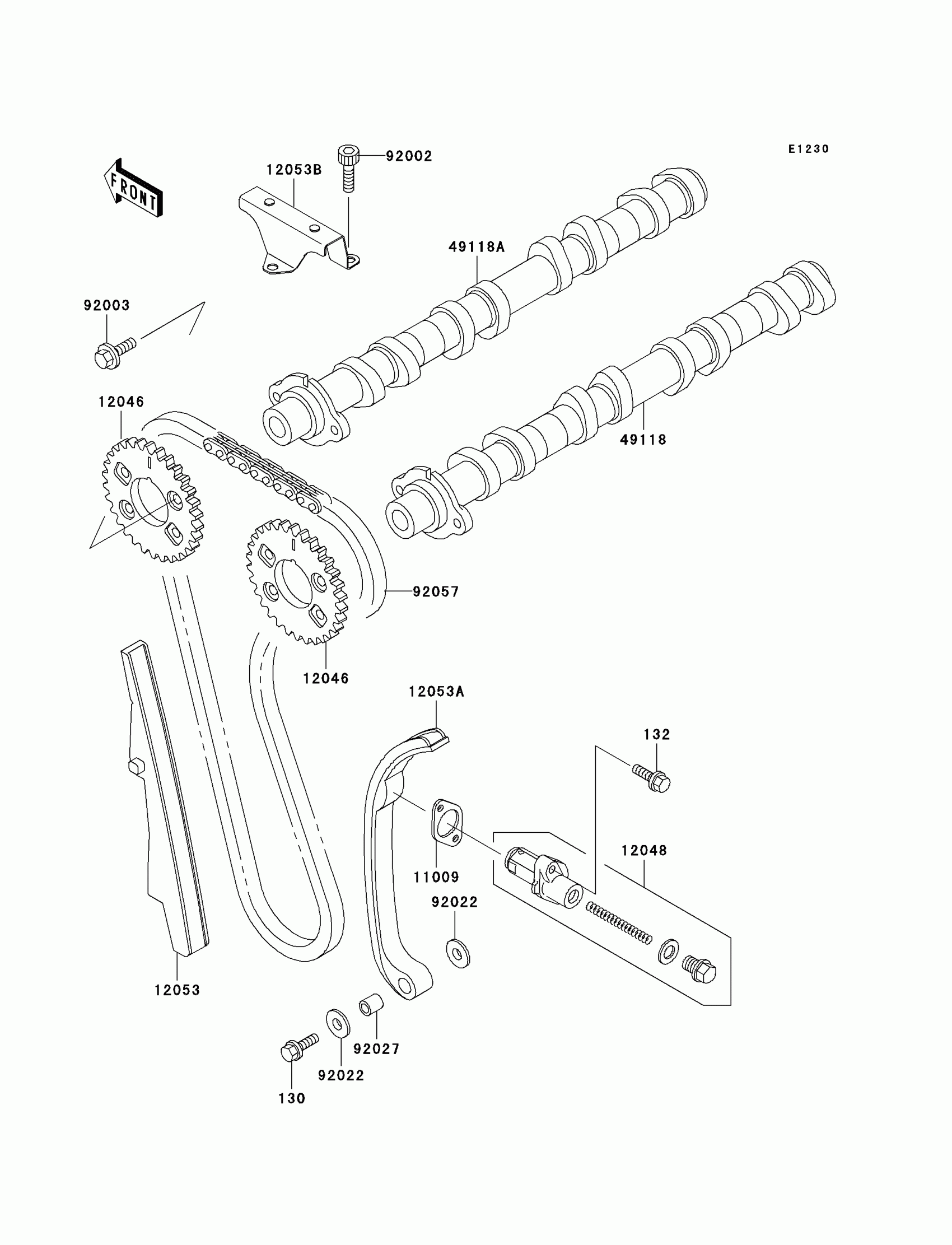

Kawasaki Ninja® ZX™-11 Camshaft(s)/Tensioner Diagram

Description

Price

130

BOLT-FLANGED,8X35

130G0835

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

11009

GASKET,TENSIONER

11009-1858

$3.52

12046

SPROCKET,CAMSHAFT,34T

12046-1112

$57.36

12048

TENSIONER-ASSY

12048-1113

$129.07

12053

GUIDE-CHAIN,FR

12053-1241

$53.83

12053A

GUIDE-CHAIN,RR

12053-1242

$74.81

12053B

GUIDE-CHAIN,UPP

12053-1243

$38.50

49118

CAMSHAFT-COMP,INTAKE

49118-1109

Unavailable

49118A

CAMSHAFT-COMP,EXHAUST

49118-1110

$570.04

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92003

BOLT,FLANGED,6X11

92003-208

$3.29

92022

WASHER,8.2X19X2

92022-1533

$4.85

92027

COLLAR,8.2X10.5X15.6

92027-1763

$5.76

92057

CHAIN,CAMSHAFT

92057-1255

$136.41
