1993 Kawasaki Ninja® ZX™-11 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

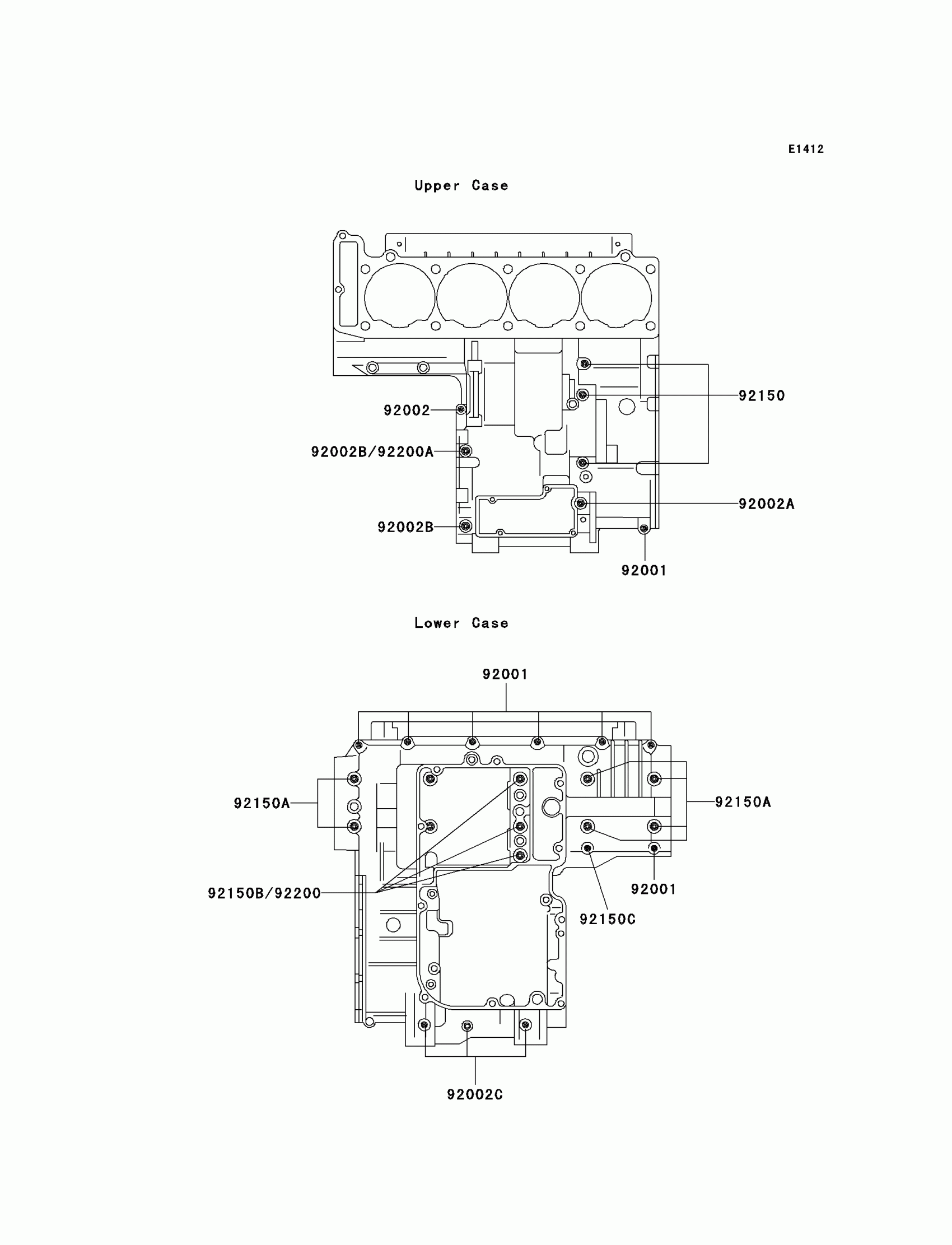

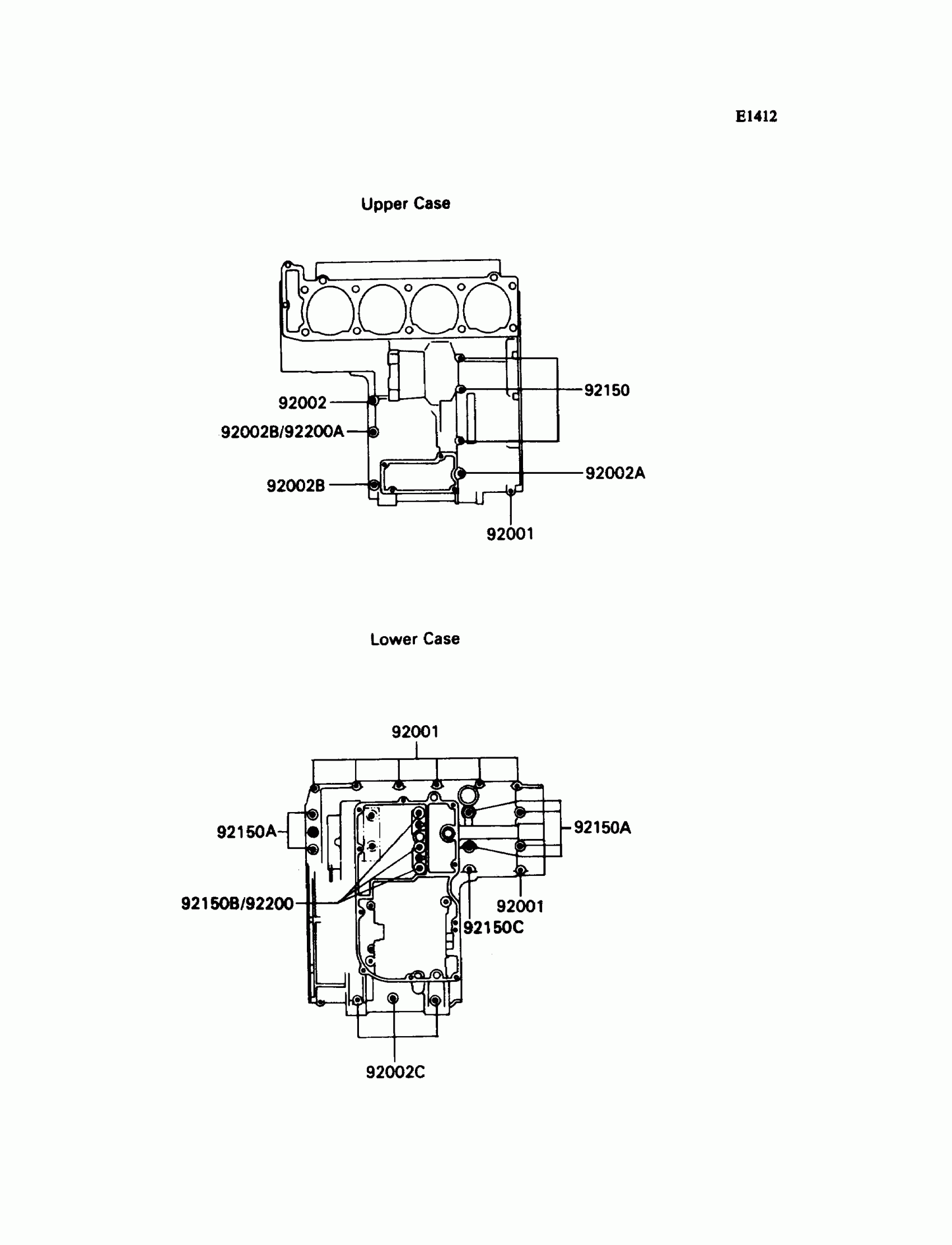

1993 Kawasaki Ninja® ZX™-11 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92001

BOLT,6X38

92001-1899

1
Out of stock

92002

BOLT,6X55

92002-1054

1
Out of stock

92002A

BOLT,6X85

92002-1306

1
Out of stock

92002B

BOLT,8X63

92002-1308

1
Out of stock

92002C

BOLT,6X120

92002-1654

1
Out of stock

92150

BOLT,6X115

92150-1140

1
Out of stock

92150A

BOLT,9X90

92150-1364

1
Out of stock

92150B

BOLT,9X140

92150-1365

1
Out of stock

92150C

BOLT,7X38

92150-1367

1
Out of stock

92200

WASHER,9.5X18X1.2

92200-1037

1
Out of stock

92200A

WASHER,8.5X16X1.2

92200-1063

1
Out of stock
