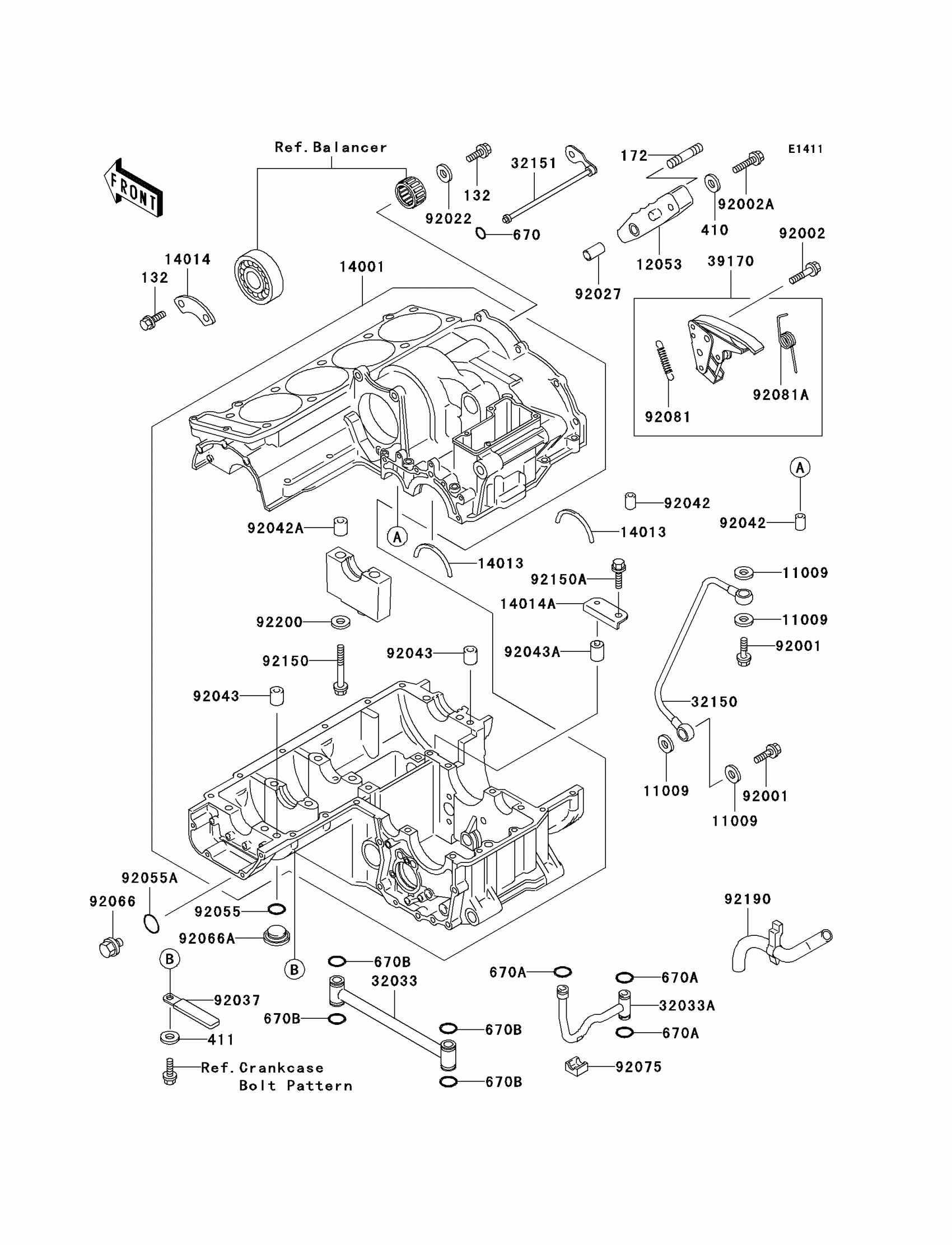

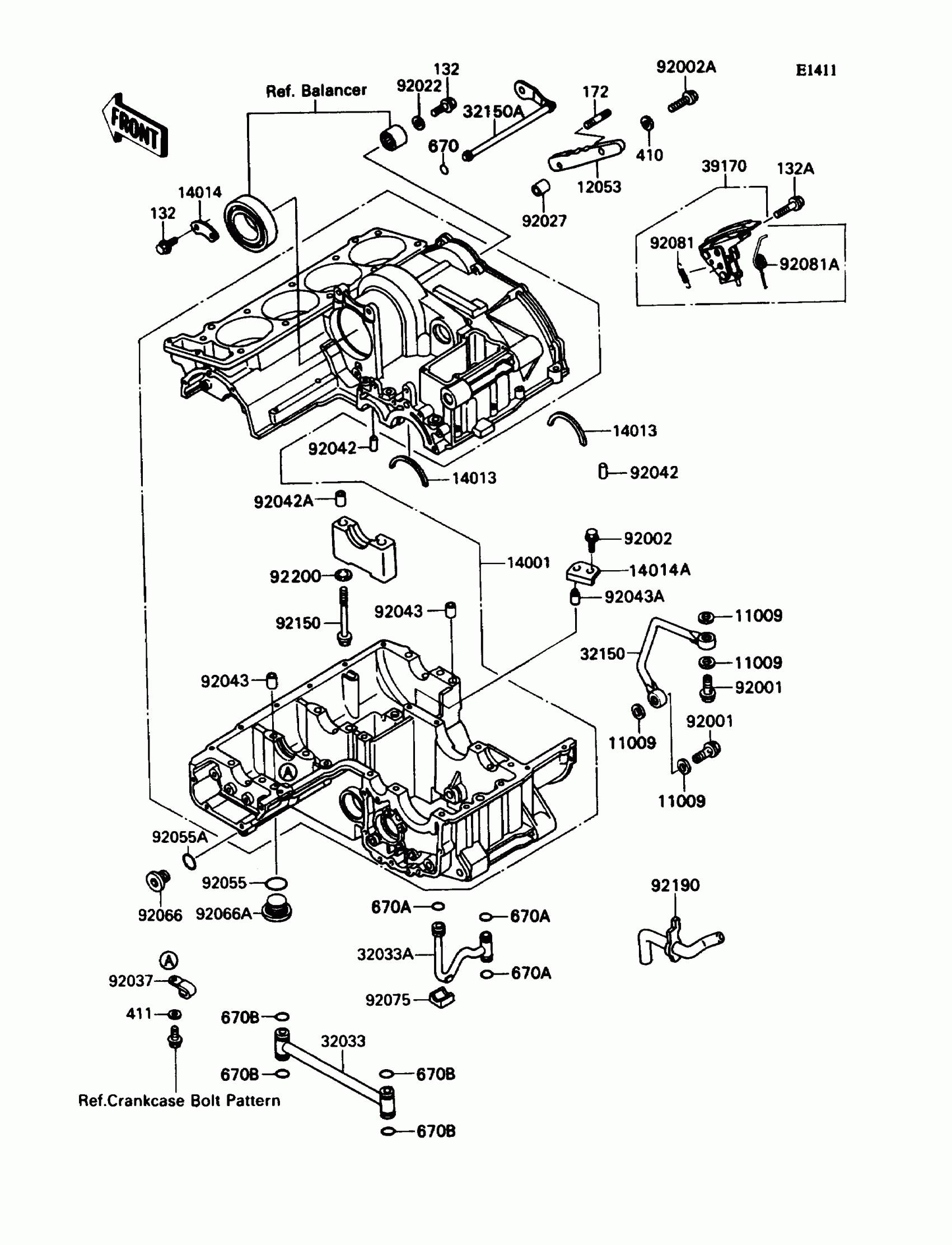

Kawasaki Ninja® ZX™-11 Crankcase Diagram

#

Description
Price

11009

GASKET,12.5X18X1.5

11009-1376

$1.35

12053

GUIDE-CHAIN

12053-1189

$18.31

14001

SET-CRANKCASE

14001-1073

Unavailable

14013

RING-POSITION,T=1.98

14013-1005

$3.78

14014

PLATE-POSITION

14014-1056

$13.39

14014A

PLATE-POSITION

14014-1101

$5.66

32033

PIPE,MAIN GALLARY

32033-1201

$52.23

32033A

PIPE

32033-1202

$39.12

32150

PIPE

32150-1033

$62.75

32150A

PIPE,OIL

32150-1660

$54.07

39170

TENSIONER-COMP

39170-1059

$199.66

92001

BOLT,BANJO,12X23

92001-1871

$16.05

92002

BOLT,6X12

92002-1563

$2.66

92002A

BOLT,6X25

92002-1609

$4.19

92022

WASHER,6X19.5X2

92022-1517

$1.90

92027

COLLAR,6.2X8.1X15

92027-1079

$3.03

92037

CLAMP,L=45

92037-1539

$4.42

92042

PIN,DOWEL,6X16

92042-016

$3.81

92042A

PIN,DOWEL,12X14

92042-031

$4.93

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,BALANCER

92043-1281

$9.29

92055

RING-O,25.7X2.4

92055-1136

$3.81

92055A

RING-O,20X2

92055-1146

$6.55

92066

PLUG,MAIN GALLERY,18X9,BLACK

92066-1096

$11.03

92066A

PLUG,25X8

92066-1161

$10.19

92075

DAMPER,PIPE

92075-1785

$4.46

92081

SPRING

92081-1668

Unavailable

92081A

SPRING

92081-1971

$7.29

92150

BOLT,9X90

92150-1364

$8.44

92190

TUBE,BREATHER

92190-1118

$34.17

92200

WASHER,9.5X18X1.2

92200-1037

$3.59

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable

172

BOLT-STUD,6X16

172G0616

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

411

WASHER PLAIN

411F0600

$0.95

670

O RING,6MM

670B1506

$0.98

670A

O RING,9MM

670D1509

$3.57

670B

O RING,16MM

670D2016

$1.24
