1995 Kawasaki Ninja® ZX™-11 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

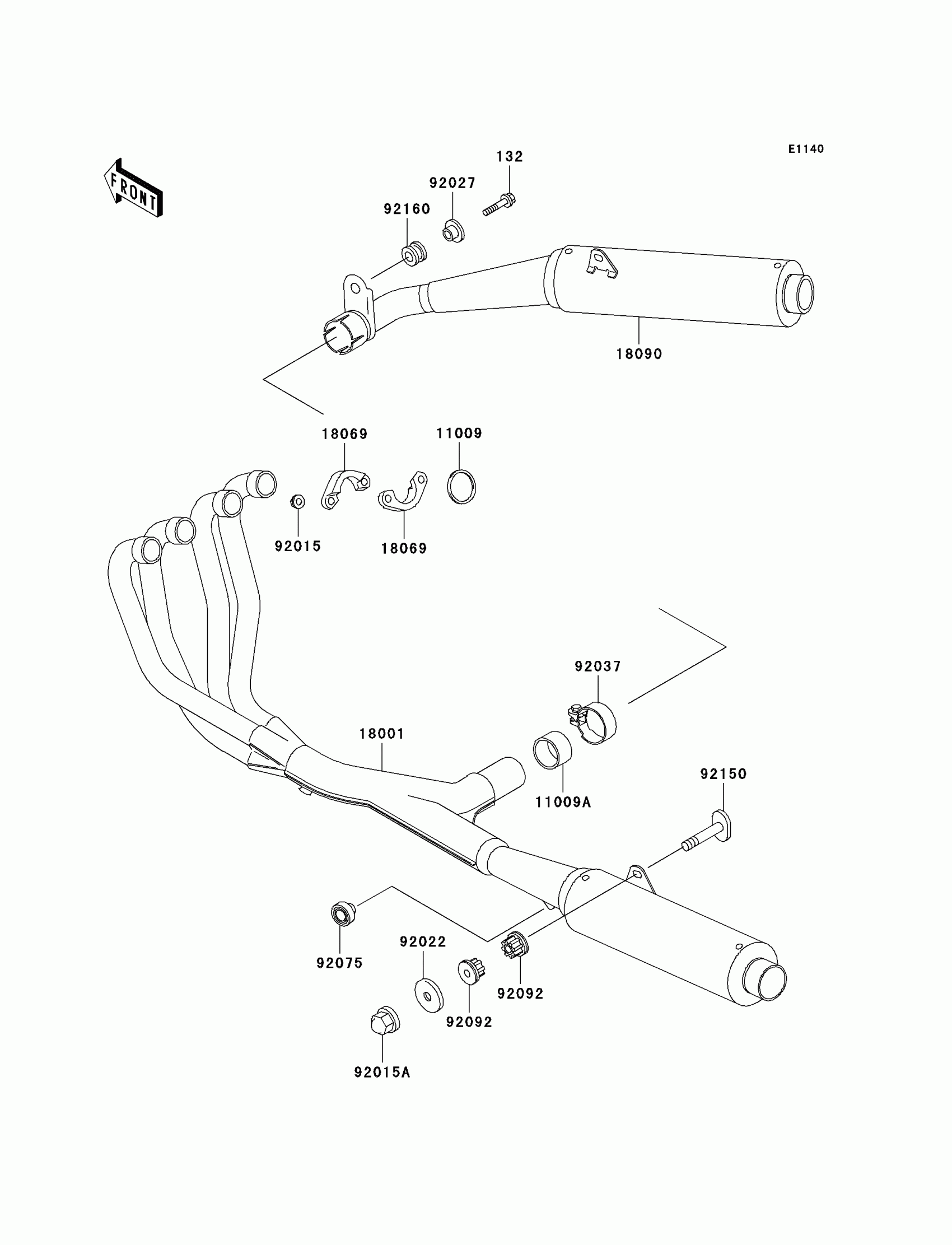

1995 Kawasaki Ninja® ZX™-11 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0835

1
Out of stock

11009

GASKET,EXHAUST PIPE H

11009-1840

1
Out of stock

11009A

GASKET,MUFFLER CONNECTING

11009-1888

1
Out of stock

18001

MUFFLER,LH

18001-1854

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1122

1
Out of stock

18090

BODY-COMP-MUFFLER,RH

18090-1277

1
Out of stock

92015

NUT,LOCK,8MM

92015-1380

1
Out of stock

92015A

NUT,10MM

92015-1649

1
Out of stock

92022

WASHER

92022-289

1
Out of stock

92027

COLLAR,FUEL TANK FITT

92027-1134

1
Out of stock

92037

CLAMP,POWER CHAMBER

92037-1537

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92092

BUSHING-RUBBER,MUFFLER

92092-1013

1
Out of stock

92150

BOLT,10X55

92150-1792

1
Out of stock

92160

DAMPER

92160-1007

1
Out of stock
