1995 Kawasaki Ninja® ZX™-11 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1995 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

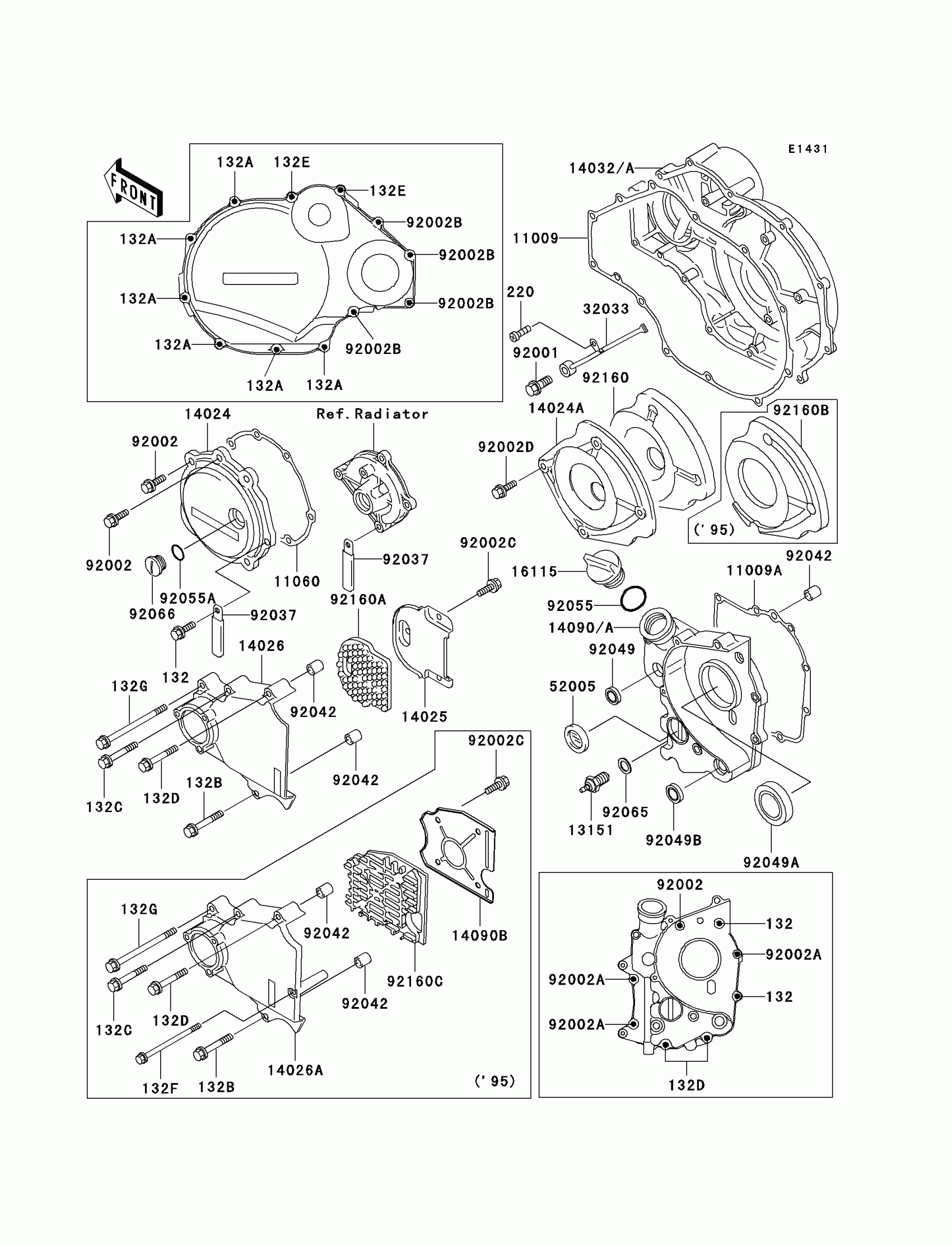

1995 Kawasaki Ninja® ZX™-11 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X35

132J0635

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X40

132J0640

1
Out of stock

11009

GASKET,CLUTCH COVER

11009-1860

1
Out of stock

11009A

GASKET,TRANSMISSION COVER

11009-1982

1
Out of stock

11060

GASKET,PULSING COVER

11060-1695

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1
Out of stock

14024

COVER,PULSING

14024-1721

1
Out of stock

14024A

COVER,SOUND ARRESTER

14024-1925

1
Out of stock

14026A

COVER-CHAIN

14026-1213

1
Out of stock

14032A

COVER-CLUTCH

14032-1401

1
Out of stock

14090A

COVER,TRANSMISSION

14090-1526

1
Out of stock

14090B

COVER,SOUND ARRESTER

14090-1527

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

32033

PIPE,CLUTCH COVER

32033-1204

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1057

1
Out of stock

92001

BOLT,BANJO,8X20

92001-1855

1
Out of stock

92002

BOLT,6X20

92002-1343

1
Out of stock

92002A

BOLT,6X25

92002-1344

1
Out of stock

92002B

BOLT,6X40

92002-1345

1
Out of stock

92002C

BOLT,6X10

92002-1449

1
Out of stock

92002D

BOLT,6X10

92002-1541

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92049

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049A

SEAL-OIL,AE2343F0

92049-1070

1
Out of stock

92049B

SEAL-OIL,TB13205

92049-1186

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92055A

RING-O,20X2

92055-1146

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG,COVER

92066-1163

1
Out of stock

92160B

DAMPER,SOUND ARRESTER

92160-1567

1
Out of stock

92160C

DAMPER,SOUND ARRESTER

92160-1568

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X50

132J0650

1
Out of stock

132E

BOLT-FLANGED-SMALL,6X55

132J0655

1
Out of stock

132F

BOLT-FLANGED-SMALL

132J0665

1
Out of stock

132G

BOLT-FLANGED-SMALL

132J0680

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock
