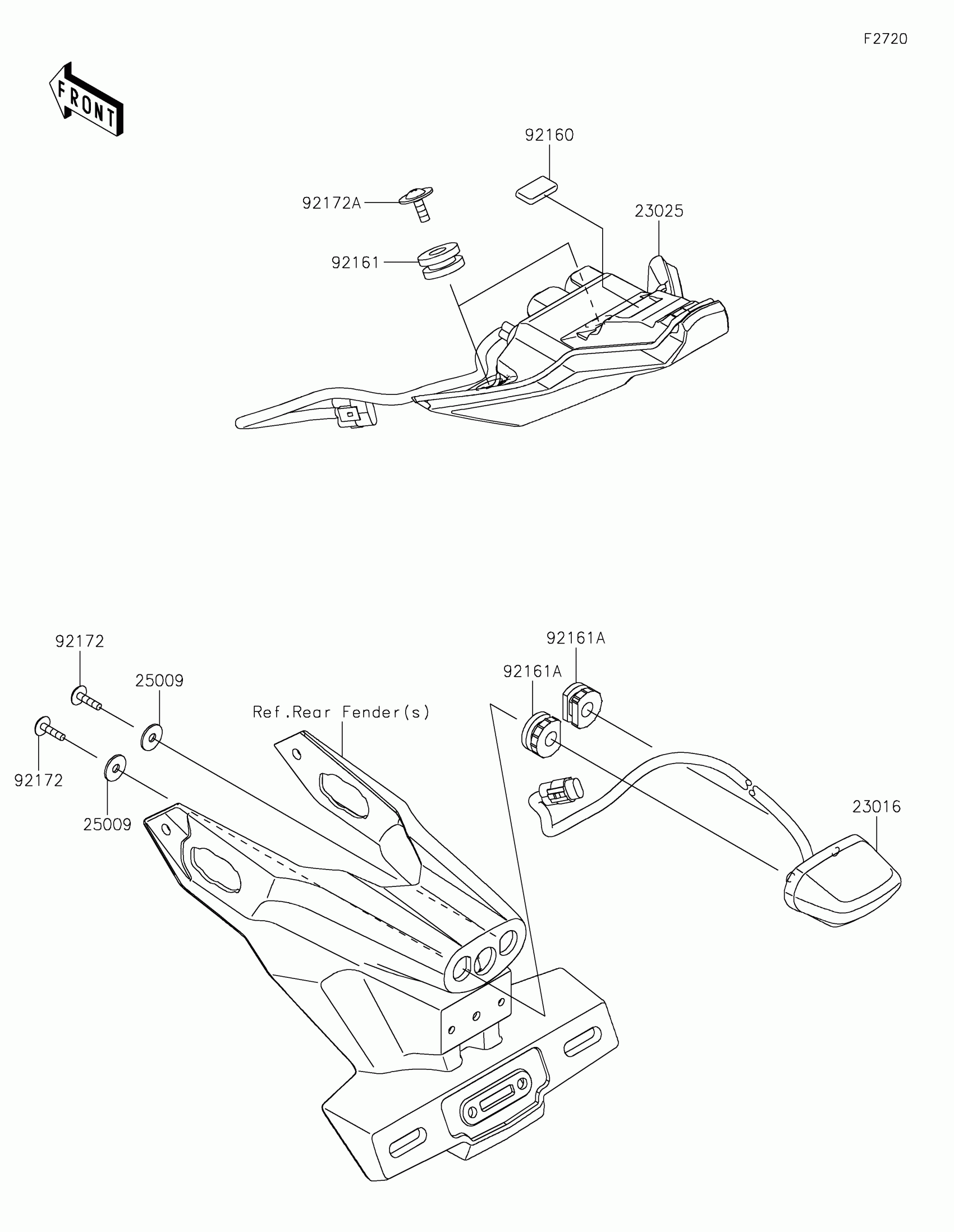

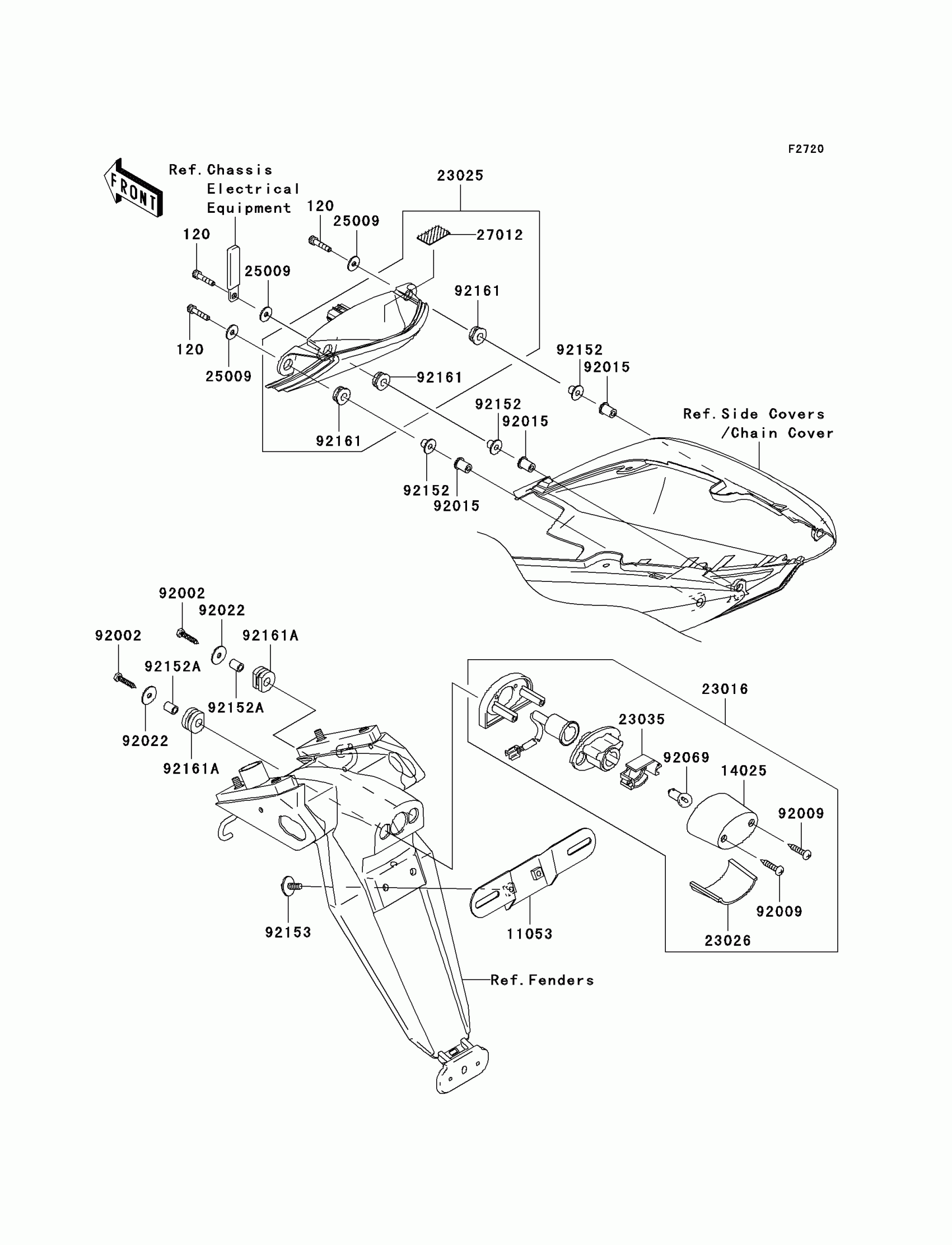

Kawasaki Ninja® ZX™-10R Taillight(s) Diagram

Description

Price

120

BOLT-SOCKET,5X22

120W0522

Unavailable

11053

BRACKET,LICENSE

11053-0400

$12.55

14025

COVER,LICENSE LAMP

14025-1725

$17.20

23016

LAMP-ASSY,LICENSE

23016-0003

$70.19

23025

LAMP-TAIL

23025-0004

$250.66

23026

LENS,LICENSE LAMP

23026-1064

Unavailable

23035

REFLECTOR-LAMP,LICENSE

23035-1066

$17.92

25009

WASHER,5.2X16X1.2

25009-004

$2.88

27012

MAGIC TAPE

27012-0049

$4.14

92002

BOLT,TAPPING,5X25

92002-1831

Unavailable

92009

SCREW,TAPPING,4X20

92009-1378

$3.68

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,5.5X20X1.2

92022-1581

Unavailable

92069

BULB,12V 5W

92069-1055

$3.95

92152

COLLAR

92152-0092

$4.96

92152A

COLLAR,6X9X11.5

92152-1458

Unavailable

92153

BOLT,6X16

92153-0684

$3.42

92161

DAMPER

92161-1188

$1.95

92161A

DAMPER

92161-1313

Unavailable
