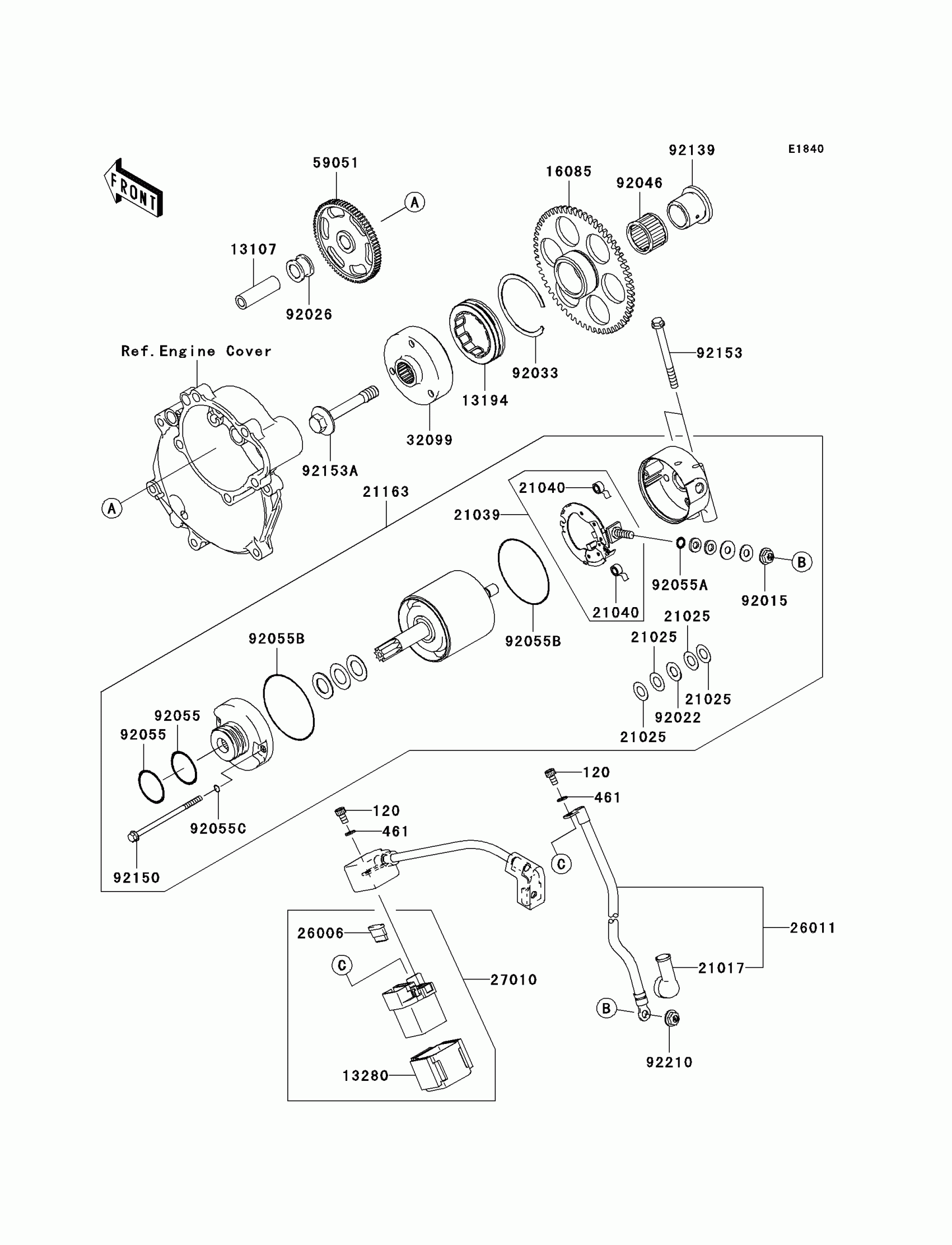

Kawasaki Ninja® ZX™-10R Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120S0510

Unavailable

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

13107

SHAFT,IDLE GEAR

13107-0023

$5.54

13194

CLUTCH-ONEWAY

13194-3704

$110.70

13280

HOLDER

13280-1263

$13.05

16085

GEAR,58T

16085-0012

$139.94

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21039

BRUSH

21039-1066

$28.79

21040

SPRING-BRUSH

21040-1057

$8.24

21163

STARTER-ELECTRIC

21163-0013

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD

26011-0033

$42.28

27010

SWITCH,MAGNETIC

27010-1446

$130.78

32099

CASE

32099-0007

$118.76

59051

GEAR-SPUR,IDLE

59051-0012

$84.03

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER

92026-0024

$4.61

92033

RING-SNAP

92033-3731

$5.37

92046

BEARING-NEEDLE,RS263020

92046-0004

$22.86

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O

92055-1550

$9.58

92055C

RING-O

92055-1551

$4.17

92139

BUSHING

92139-0024

$26.03

92150

BOLT,FLANGED,4X80

92150-1969

$7.24

92153

BOLT,FLANGED,6X70

92153-0018

$3.51

92153A

BOLT,10X62

92153-0451

$5.44

92210

NUT,6MM

92210-0188

$1.81
