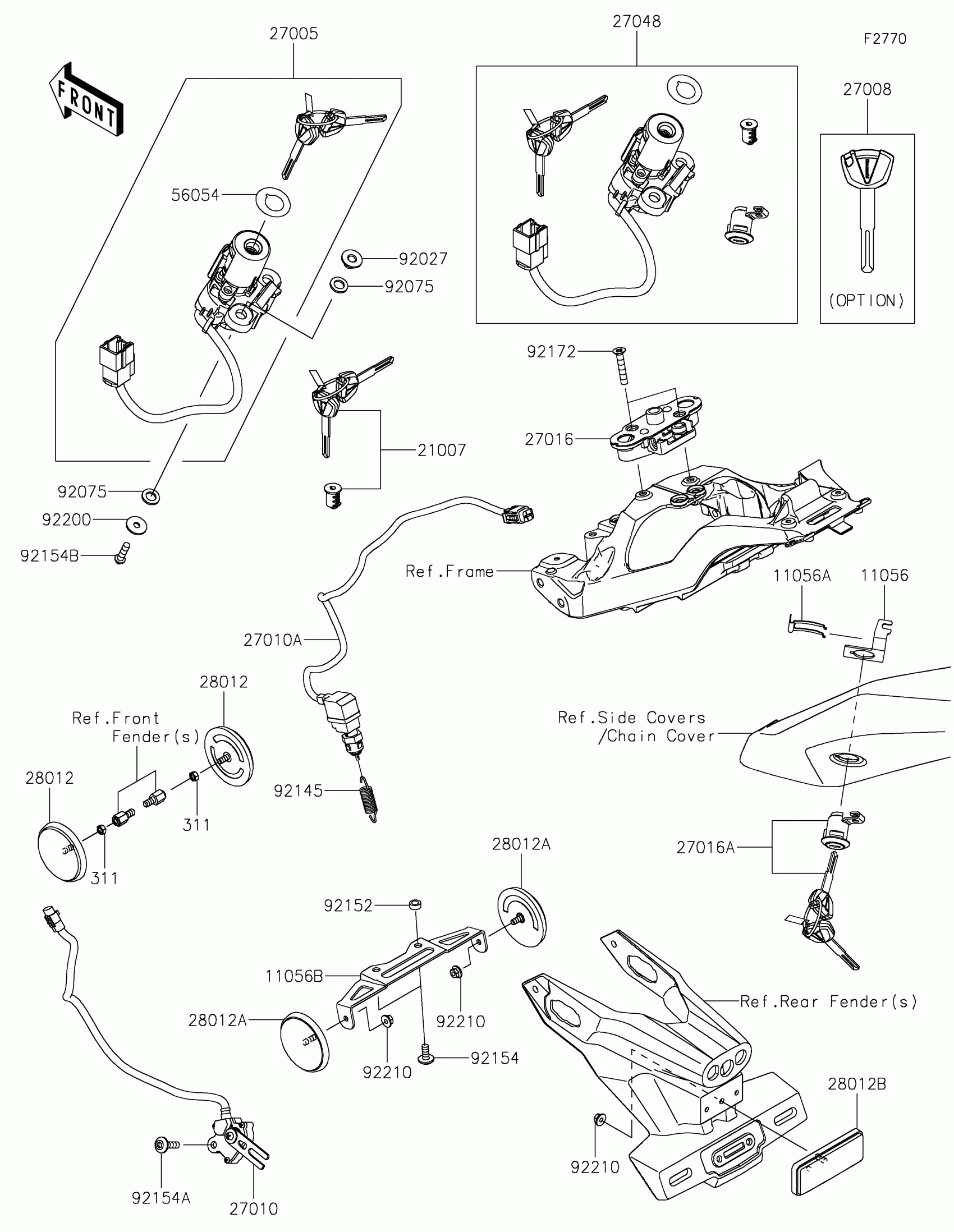

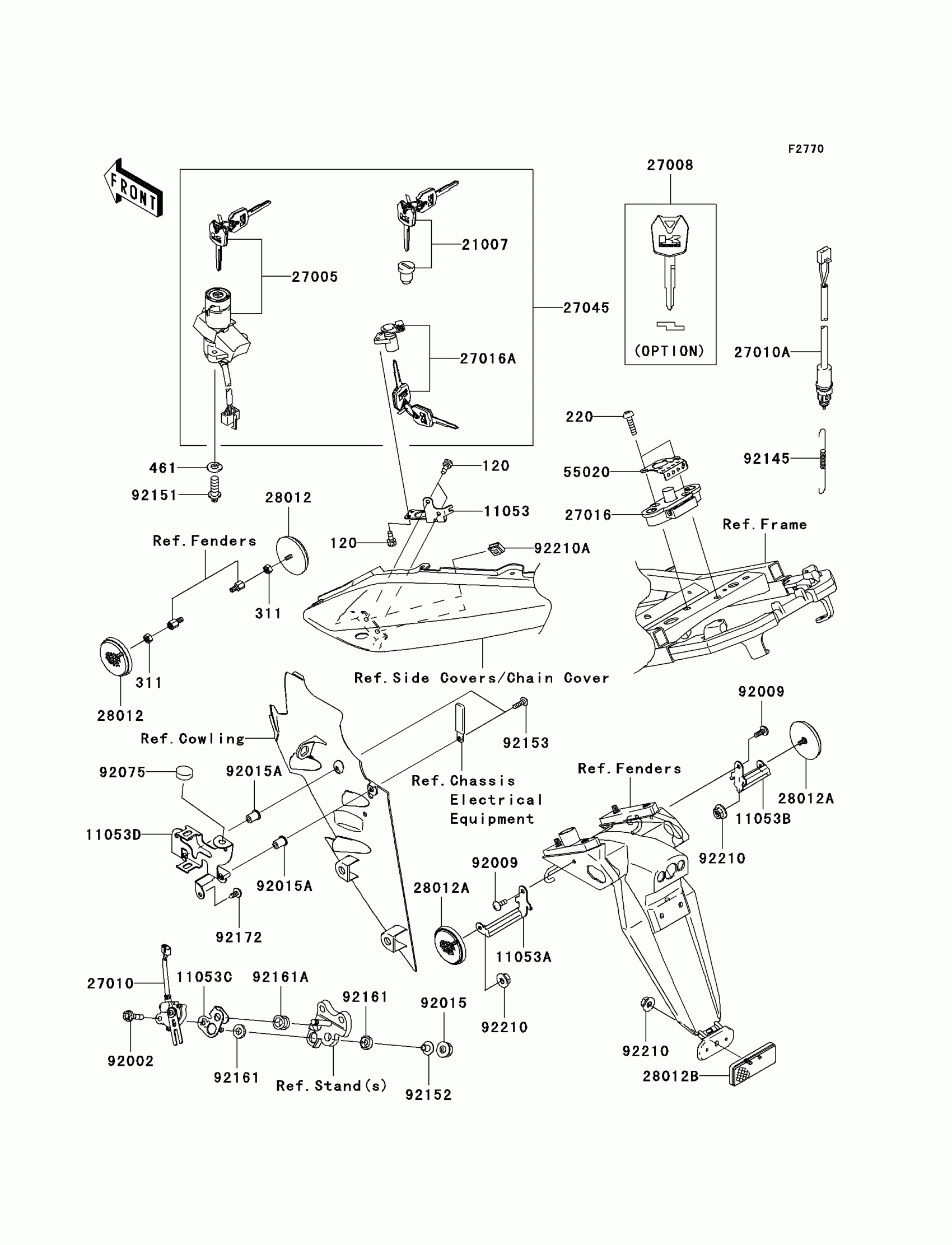

Kawasaki Ninja® ZX™-10R Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

120

BOLT-SOCKET,5X12

120W0512

Unavailable

220

SCREW-PAN-CROSS

220F0630

Unavailable

311

NUT-HEX

311C0500

Unavailable

461

WASHER-SPRING

461L0600

$0.66

11053

BRACKET,SEAT LOCK

11053-0399

$9.63

11053A

BRACKET,REAR REFLECTOR,LH

11053-0405

$12.47

11053B

BRACKET,REAR REFLECTOR,RH

11053-0406

$12.47

11053C

BRACKET,SIDE STAND SWITCH

11053-0723

$10.88

11053D

BRACKET,AMPLIFIER

11053-1252

$32.41

21007

ROTOR,LOCK,TANK CAP

21007-5057

$86.34

27005

SWITCH-ASSY-IGNITION

27005-5130

$190.44

27008

KEY-LOCK,BLANK

27008-0030

$14.07

27010

SWITCH,SIDE STAND

27010-1455

$120.30

27010A

SWITCH,REAR BRAKE

27010-1479

$26.58

27016

LOCK-ASSY,SEAT STRIKER

27016-0003

$90.04

27016A

LOCK-ASSY,SEAT

27016-5309

$88.67

27045

SWITCH-ASSY

27045-5236

Unavailable

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-0002

$19.59

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

55020

GUARD,SEAT STRIKER

55020-0082

$4.22

92002

BOLT,FLANGED,6X25

92002-1582

$4.17

92009

SCREW,5X14

92009-1653

$3.03

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,WELL,5MM

92015-1757

$5.58

92075

DAMPER,9X24X14

92075-281

$4.67

92145

SPRING,REAR BRAKE SWITCH

92145-0091

$2.80

92151

BOLT,TORX,6X16

92151-1911

$1.85

92152

COLLAR

92152-1074

$4.67

92153

BOLT,SOCKET,5X16

92153-1244

$1.73

92161

DAMPER

92161-0117

$2.36

92161A

DAMPER

92161-0118

Unavailable

92172

SCREW,TAPPING,5X14

92172-0006

$1.98

92210

NUT,FLANGED,5MM

92210-0007

$1.90

92210A

NUT,5MM

92210-1266

$5.89
