2004 Kawasaki Ninja® ZX™-10R Generator Diagram

← All diagrams

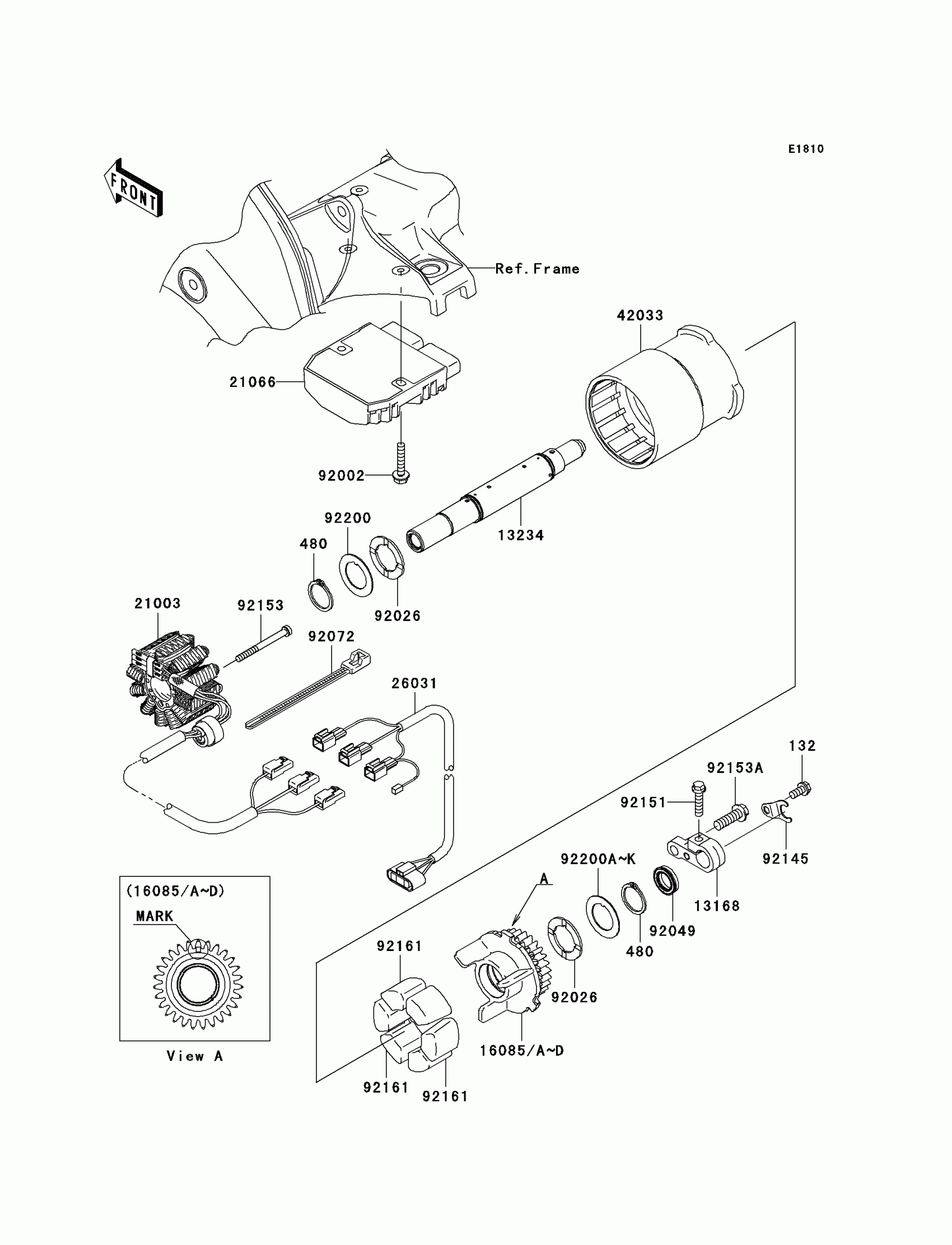

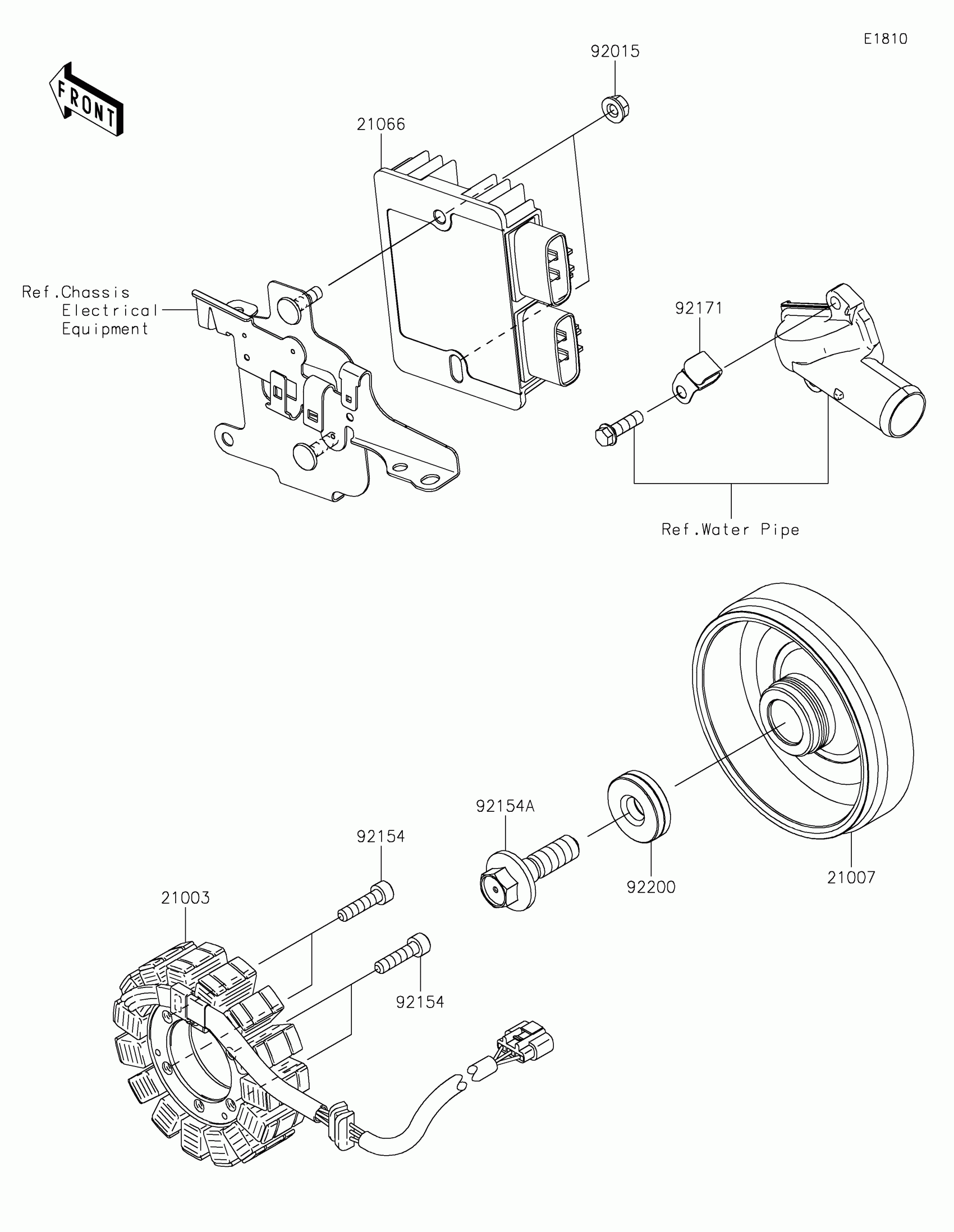

Find the part on the Generator diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Ninja® ZX™-10R Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132L0612

1
Out of stock

480

1

$4.98

In stock

13168

LEVER

13168-0035

1

$43.08

In stock

13234

SHAFT-COMP

13234-0021

1

$326.29

In stock

16085

GEAR,"A" MARK

16085-0041

1

$663.14

In stock

16085A

GEAR,"B" MARK

16085-0042

1

$663.14

In stock

16085B

GEAR,NO MARK

16085-0043

1

$895.67

In stock

16085C

GEAR,"C" MARK

16085-0044

1

$895.67

In stock

16085D

GEAR,"D" MARK

16085-0045

1

$895.67

In stock

21003

STATOR

21003-0019

1

$642.73

In stock

21066

REGULATOR-VOLTAGE

21066-0008

1
Out of stock

26031

HARNESS

26031-0143

1

$112.64

In stock

42033

COUPLING-ASSY

42033-0010

1

$1,124.87

In stock

92002

BOLT,FLANGED,M6X30

92002-1138

1

$3.88

In stock

92026

SPACER,24.3X38.0X2.0

92026-0071

1
Out of stock

92049

SEAL-OIL

92049-0043

1
Out of stock

92072

BAND,L=140

92072-1293

1

$5.61

In stock

92145

SPRING

92145-0140

1

$4.17

In stock

92151

1

$2.06

In stock

92153

BOLT,5X55

92153-0450

1
Out of stock

92153A

BOLT,8X25

92153-0758

1
Out of stock

92161

DAMPER,COUPLING

92161-0189

1

$91.12

In stock

92200

WASHER,24.2X38X1.2

92200-0124

1
Out of stock

92200A

WASHER,24.2X38X1.4

92200-0125

—
Out of stock

92200B

WASHER,24.2X38X1.6

92200-0126

—
Out of stock

92200C

WASHER,24.2X38X1.8

92200-0127

—
Out of stock

92200D

WASHER,24.2X38X2.0

92200-0128

—
Out of stock

92200E

WASHER,24.2X38X2.3

92200-0129

—
Out of stock

92200F

WASHER,24.2X38.0X1.3

92200-0179

—
Out of stock

92200G

WASHER,24.2X38.0X1.5

92200-0180

—
Out of stock

92200H

WASHER,24.2X38.0X1.7

92200-0181

—
Out of stock

92200I

WASHER,24.2X38.0X1.9

92200-0182

—
Out of stock

92200J

WASHER,24.2X38.0X2.1

92200-0183

—
Out of stock

92200K

WASHER,24.2X38.0X2.2

92200-0184

—
Out of stock
