2004 Kawasaki Ninja® ZX™-10R Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

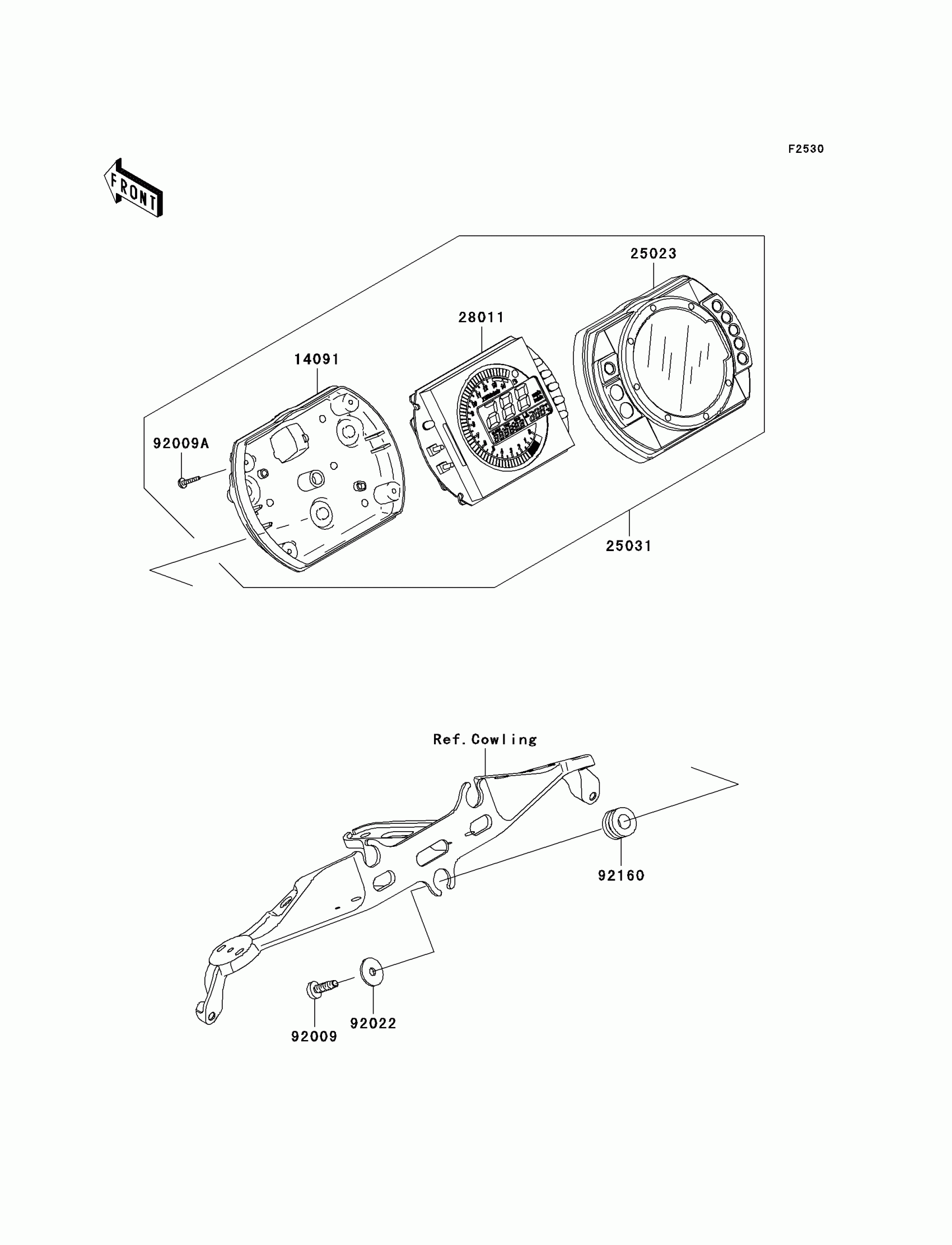

2004 Kawasaki Ninja® ZX™-10R Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER,LWR

14091-1569

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1268

1
Out of stock

25031

METER-ASSY,LCD

25031-0045

1
Out of stock

28011

METER,LCD

28011-0013

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92009A

SCREW,TAPPING,3X14

92009-1592

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock
