2004 Kawasaki Ninja® ZX™-10R Ignition System Diagram

← All diagrams

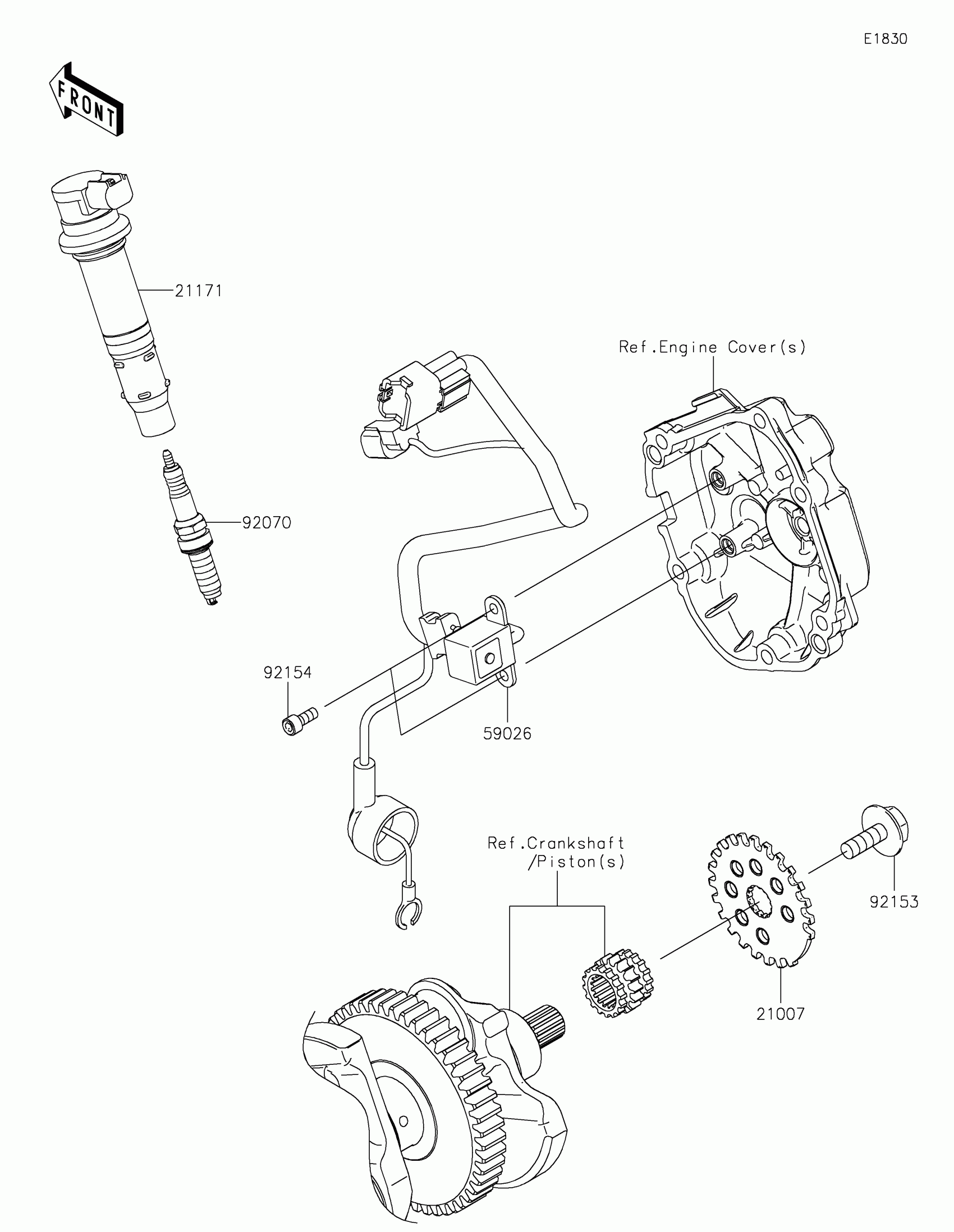

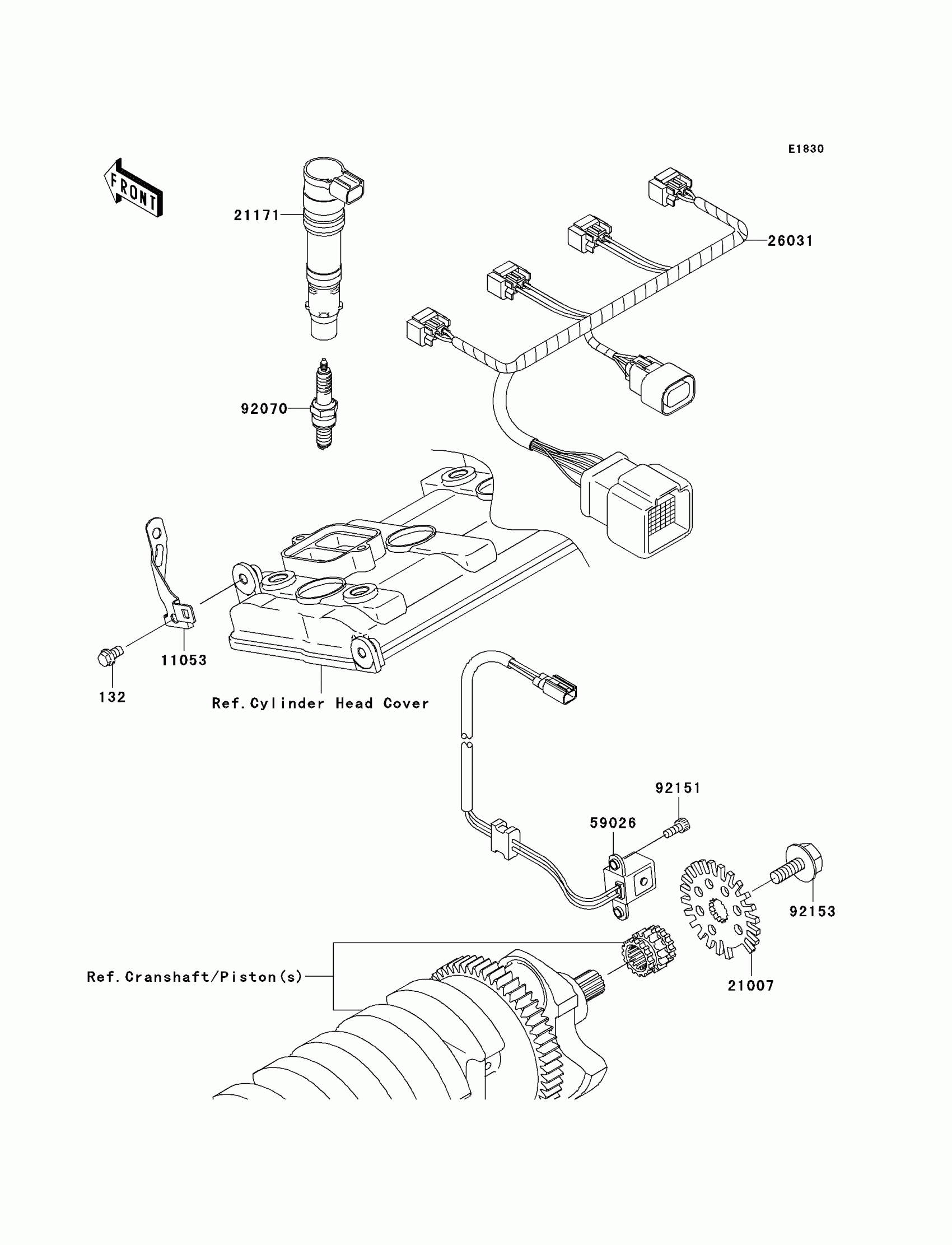

Find the part on the Ignition System diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Ninja® ZX™-10R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X10

132L0610

1
Out of stock

11053

BRACKET

11053-1310

1
Out of stock

21007

ROTOR,PULSING

21007-0019

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-0005

1
Out of stock

26031

HARNESS,IGNITION COIL

26031-0203

1
Out of stock

59026

COIL-PULSING

59026-0009

1
Out of stock

92070

PLUG-SPARK,CR9EIA(NGK)

92070-0014

1
Out of stock

92151

BOLT,SOCKET,5X12

92151-1118

1
Out of stock

92153

BOLT,FLANGED,8X23

92153-0549

1
Out of stock
