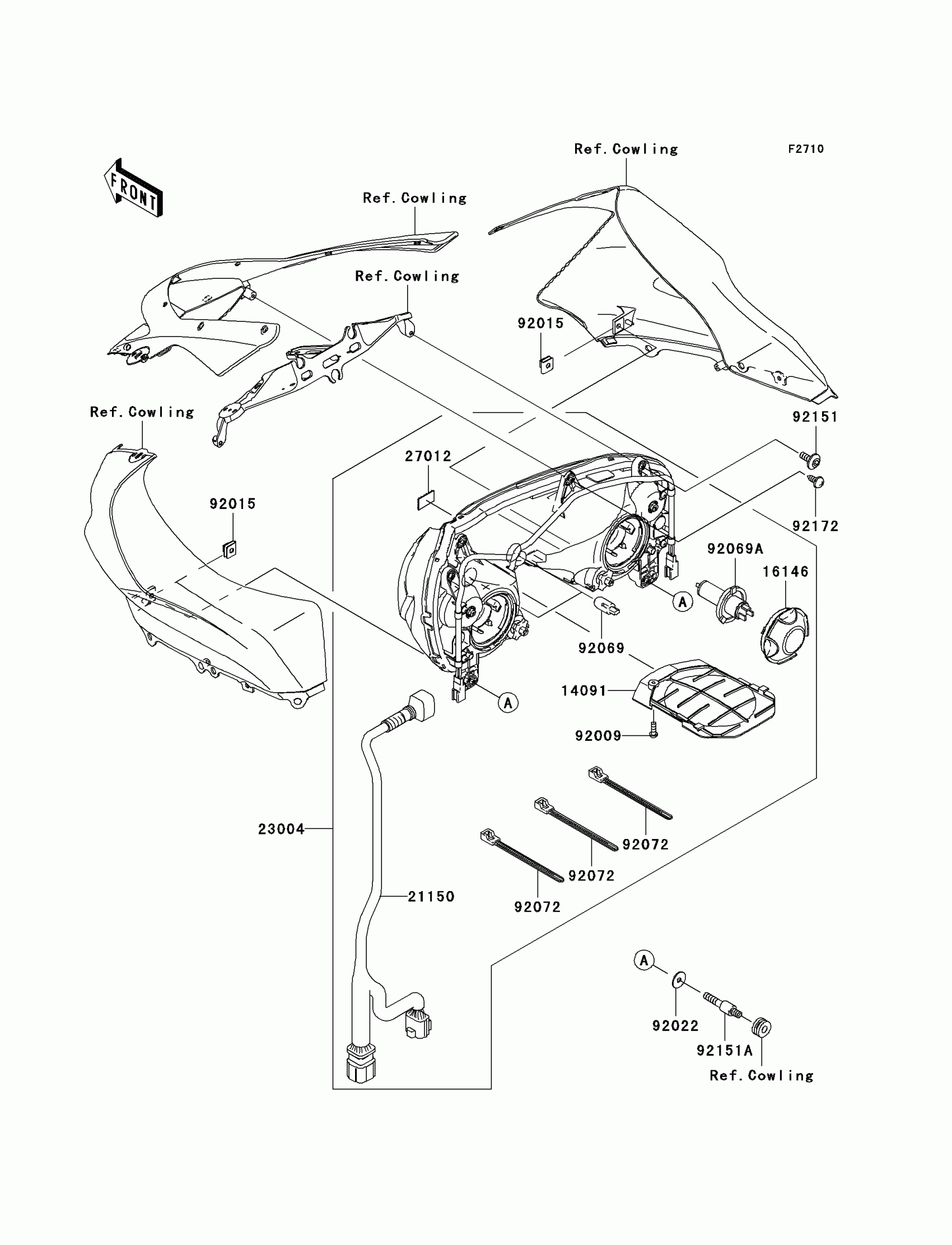

2004 Kawasaki Ninja® ZX™-10R Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Ninja® ZX™-10R Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,CITY LIGHT

14091-0454

1
Out of stock

16146

COVER-ASSY,BULB,WITH O-RING

16146-0030

1
Out of stock

21150

CORD-ASSY,HEAD LAMP

21150-0002

1
Out of stock

23004

LAMP-HEAD

23004-0029

1
Out of stock

27012

MAGIC TAPE

27012-0049

1
Out of stock

92009

SCREW,TAPPING,4X12

92009-1395

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92022

WASHER,7X24X1.6

92022-1160

1
Out of stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92069A

BULB,12V 55W,H7

92069-1126

1
Out of stock

92072

BAND,L=152

92072-3874

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92151A

BOLT

92151-1765

1
Out of stock

92172

SCREW,TAPPING,5X14

92172-0006

1
Out of stock
