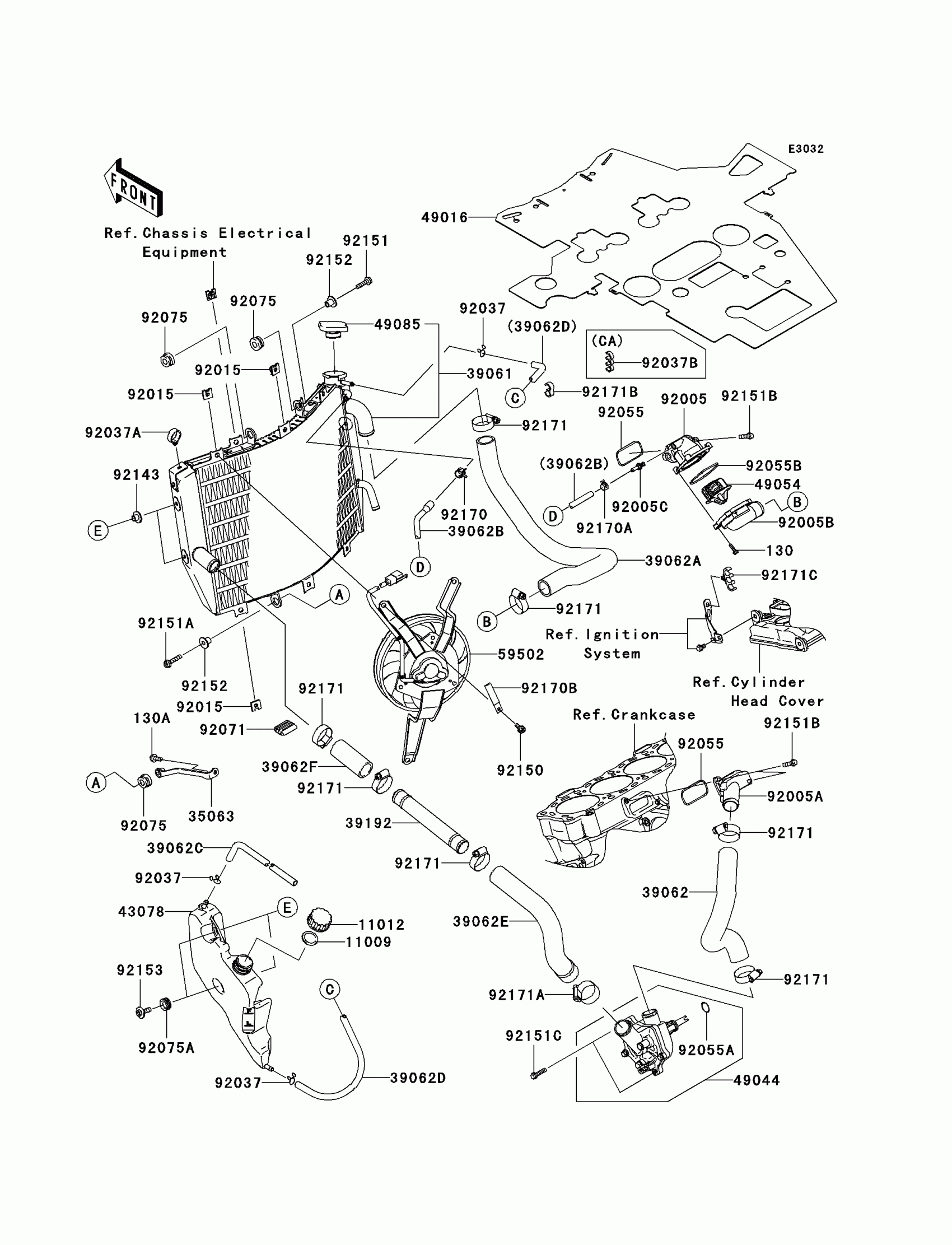

Find the part on the Radiator diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

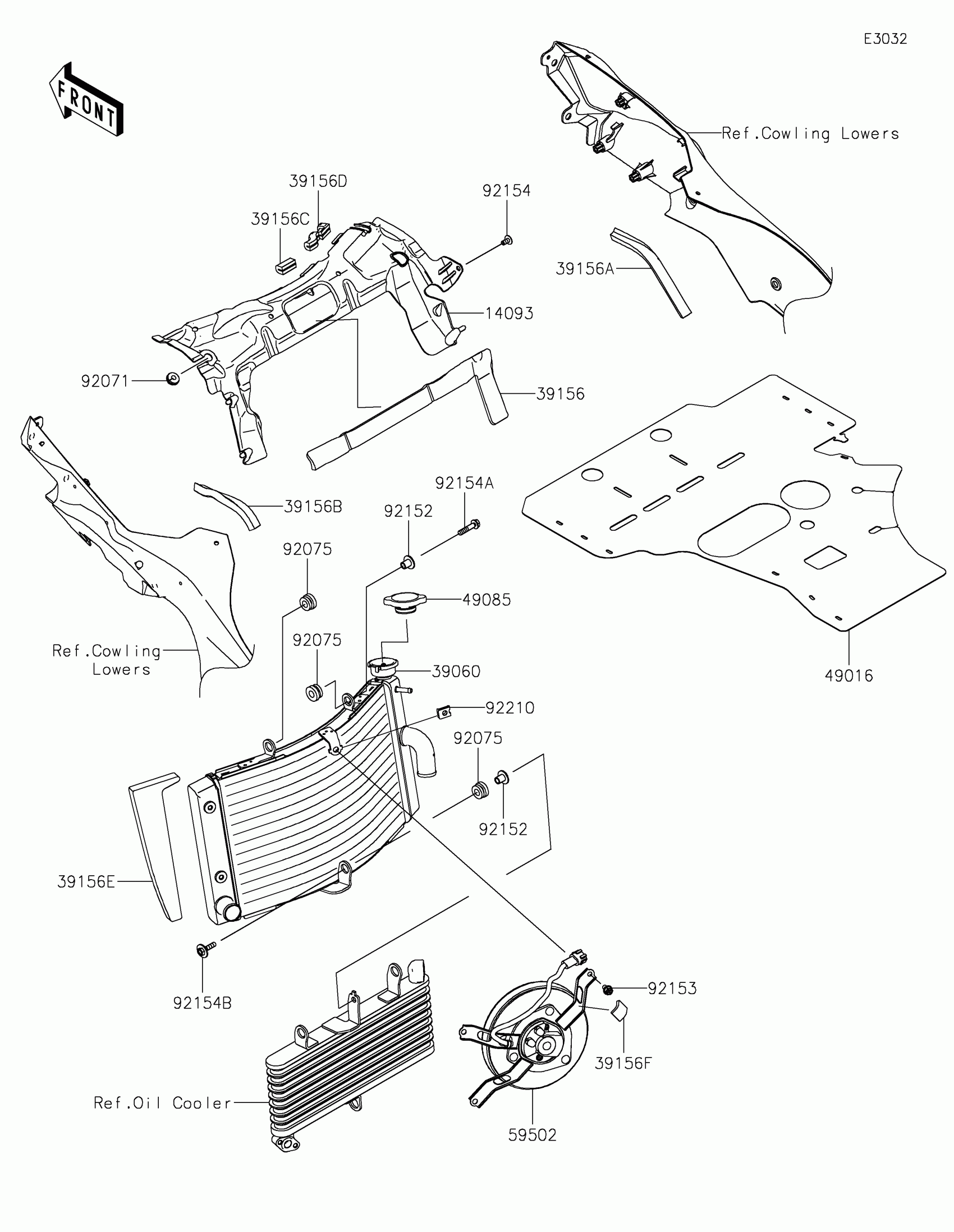

2004 Kawasaki Ninja® ZX™-10R Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

35063

STAY

35063-0148

1

$14.90

In stock

39061

RADIATOR-ASSY

39061-0041

1

$1,268.66

In stock

39062

1

$40.39

In stock

39062A

1

$80.11

In stock

39062B

1

$21.71

In stock

39062C

HOSE-COOLING,OVER FLOW

39062-0039

1
Out of stock

39062D

HOSE-COOLING,RETURN

39062-0057

1

$25.17

In stock

39062E

1

$40.39

In stock

39062F

1

$9.90

In stock

39192

PIPE-WATER

39192-0029

1
Out of stock

43078

RESERVOIR

43078-0021

1

$73.53

In stock

49016

COVER-SEAL

49016-0006

1

$84.20

In stock

49044

PUMP-WATER

49044-0003

1

$344.48

In stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1078

1

$47.06

In stock

59502

FAN-ASSY

59502-0017

1

$900.92

In stock

92005

FITTING,THERMO CASE

92005-0009

1
Out of stock

92005A

FITTING

92005-0010

1
Out of stock

92005B

FITTING,THERMO CAP

92005-1275

1
Out of stock

92005C

FITTING,BLEED PIPE

92005-1337

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

1
Out of stock

92055A

RING-O

92055-0069

1
Out of stock

92055B

1

$7.20

In stock

92071

GROMMET

92071-1226

1

$5.11

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92075A

DAMPER

92075-1634

1

$3.72

In stock

92143

COLLAR

92143-1962

1

$4.42

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92151

BOLT,FLANGED,6X25

92151-1225

1

$2.03

In stock

92151A

BOLT,FLANGED,M6X30

92151-1228

1

$2.34

In stock

92151B

BOLT,FLANGED-SMALL,6X20

92151-1252

1
Out of stock

92151C

1

$2.06

In stock

92152

COLLAR

92152-1074

1

$4.93

In stock

130

BOLT-FLANGED,5X18

130L0518

1
Out of stock

130A

BOLT-FLANGED,6X14

130L0614

1
Out of stock

92153

BOLT,UPSET-WP,6X22

92153-0640

1
Out of stock

92170

CLAMP

92170-1201

1

$4.42

In stock

92170A

CLAMP

92170-1493

1

$3.97

In stock

92170B

CLAMP

92170-1937

1

$2.15

In stock

92171

CLAMP

92171-0179

1

$6.51

In stock

92171A

CLAMP

92171-0180

1

$12.73

In stock

92171C

CLAMP

92171-1213

1

$8.54

In stock

92037B

CLAMP,TUBE

92037-1941

1

$5.64

In stock

92171B

CLAMP

92171-1184

1

$2.03

In stock
