2004 Kawasaki Ninja® ZX™-10R Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

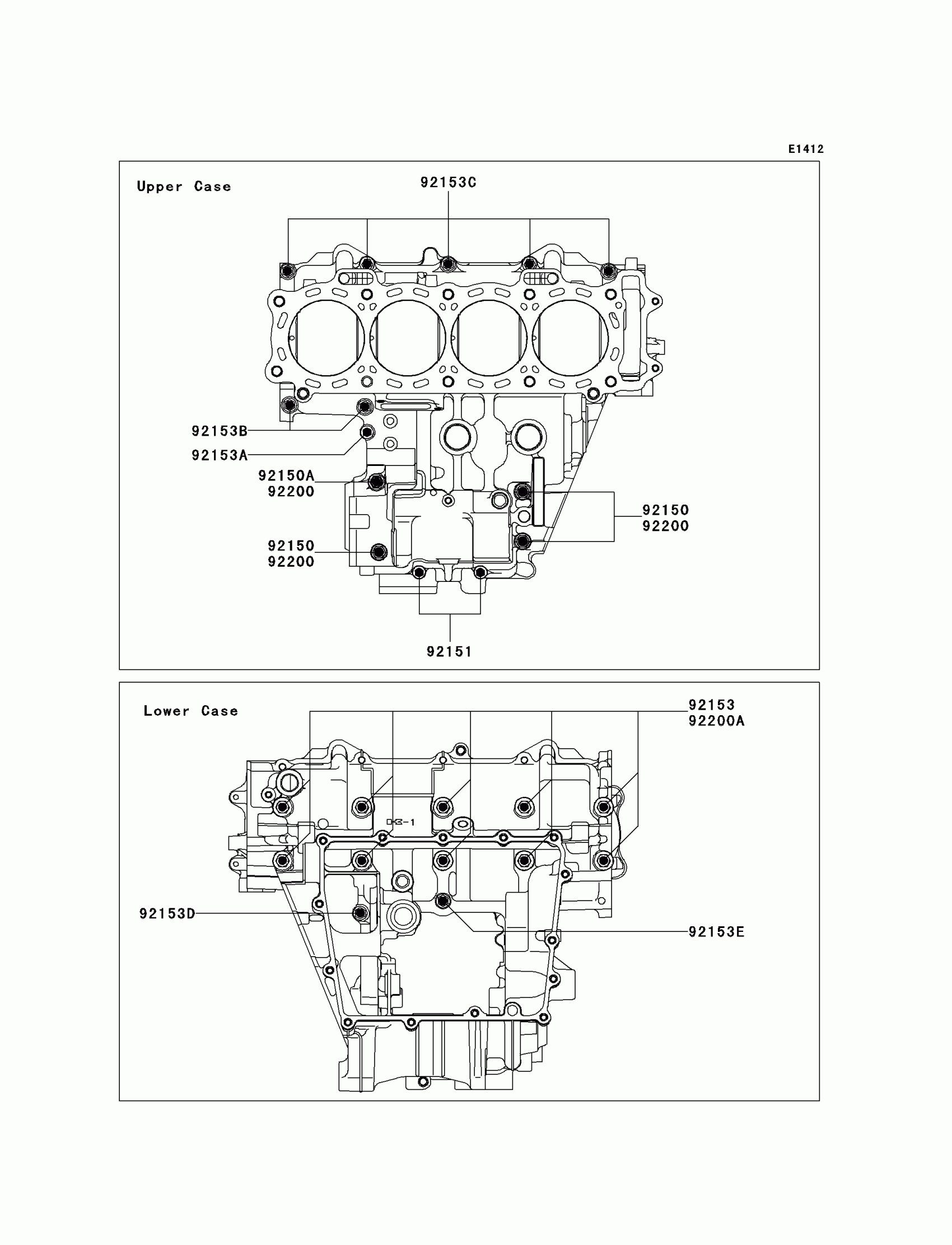

2004 Kawasaki Ninja® ZX™-10R Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,8X90

92150-1163

1

$9.27

In stock

92150A

BOLT,FLANGED,8X45

92150-1487

1

$5.21

In stock

92151

BOLT,FLANGED,6X40

92151-1583

1

$2.25

In stock

92153

BOLT,FLANGED,9X100

92153-0447

1
Out of stock

92153A

BOLT,6X22

92153-0619

1
Out of stock

92153B

BOLT,7X32

92153-0742

1
Out of stock

92153C

BOLT,7X45

92153-0743

1
Out of stock

92153D

BOLT,7X50

92153-0744

1
Out of stock

92153E

BOLT,7X85

92153-0745

1
Out of stock

92200

WASHER,8.2X16X1.6

92200-0047

1
Out of stock

92200A

WASHER,9.2X19X2.3

92200-0115

1
Out of stock
