2004 Kawasaki Ninja® ZX™-10R Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

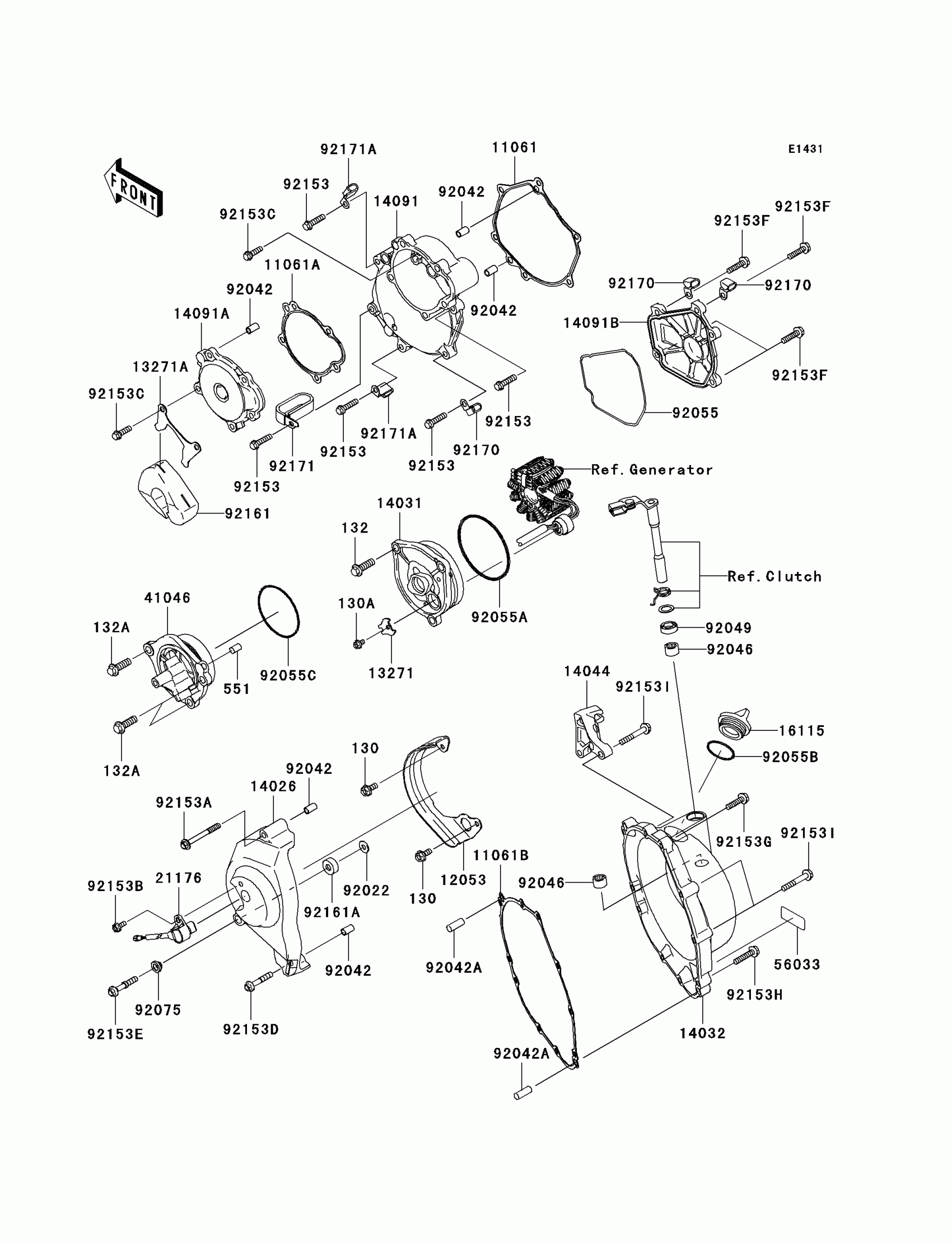

2004 Kawasaki Ninja® ZX™-10R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$13.72

In stock

11061A

1

$9.01

In stock

11061B

GASKET,CLUTCH COVER

11061-0049

1

$30.79

In stock

12053

GUIDE-CHAIN

12053-0044

1
Out of stock

13271

PLATE

13271-0149

1
Out of stock

13271A

PLATE,STARTER COVER

13271-0265

1
Out of stock

14026

COVER-CHAIN

14026-0017

1

$190.42

In stock

14031

COVER-GENERATOR

14031-0012

1

$106.49

In stock

14032

COVER-CLUTCH

14032-0039

1
Out of stock

14044

HOLDER-CABLE,CLUTCH

14044-0011

1

$54.88

In stock

14091

COVER,STARTER,LARGE

14091-0108

1

$311.25

In stock

14091A

COVER,STARTER,SMALL

14091-0109

1

$237.91

In stock

14091B

COVER,PULSING

14091-0303

1

$123.26

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

21176

SENSOR,SPEED

21176-0032

1

$134.28

In stock

41046

HOUSING-BEARING

41046-0005

1
Out of stock

56033

1

$5.71

In stock

92022

WASHER,6.2X15X1.2

92022-2373

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92042A

PIN,DOWEL,8X22

92042-044

1

$4.37

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92055

RING-O

92055-0020

1
Out of stock

92055A

RING-O,80.8X3.5

92055-0038

1
Out of stock

92055B

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055C

RING-O,65.2X2.4

92055-1408

1

$5.21

In stock

92075

DAMPER

92075-1855

1

$7.93

In stock

92153

BOLT,FLANGED,6X25

92153-0604

1
Out of stock

92153A

BOLT,FLANGED,M6X55

92153-0609

1
Out of stock

92153B

BOLT,5X12

92153-0630

1
Out of stock

92153C

BOLT,6X20

92153-0631

1
Out of stock

92153D

BOLT,FLANGED,6X35

92153-0690

1
Out of stock

92153E

BOLT,6X38

92153-0691

1
Out of stock

92153F

BOLT,6X22

92153-0732

1
Out of stock

92153G

BOLT,FLANGED,6X25

92153-0764

1
Out of stock

92153H

BOLT,6X30

92153-0765

1
Out of stock

92153I

BOLT,6X40

92153-0766

1
Out of stock

92161

1

$20.93

In stock

92161A

DAMPER

92161-0177

1

$4.97

In stock

92170

CLAMP

92170-1577

1

$3.03

In stock

130

BOLT-FLANGED,6X14

130L0614

1
Out of stock

130A

BOLT-FLANGED,5X8

130Y0508

1
Out of stock

132

BOLT-FLANGED-SMALL

132L0825

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X25

132Y0825

1
Out of stock

551

PIN-DOWEL,8X12

551A0812

1

$2.51

In stock

92171

CLAMP

92171-0254

1

$10.46

In stock

92171A

CLAMP,HARNESS

92171-0255

1

$7.75

In stock
