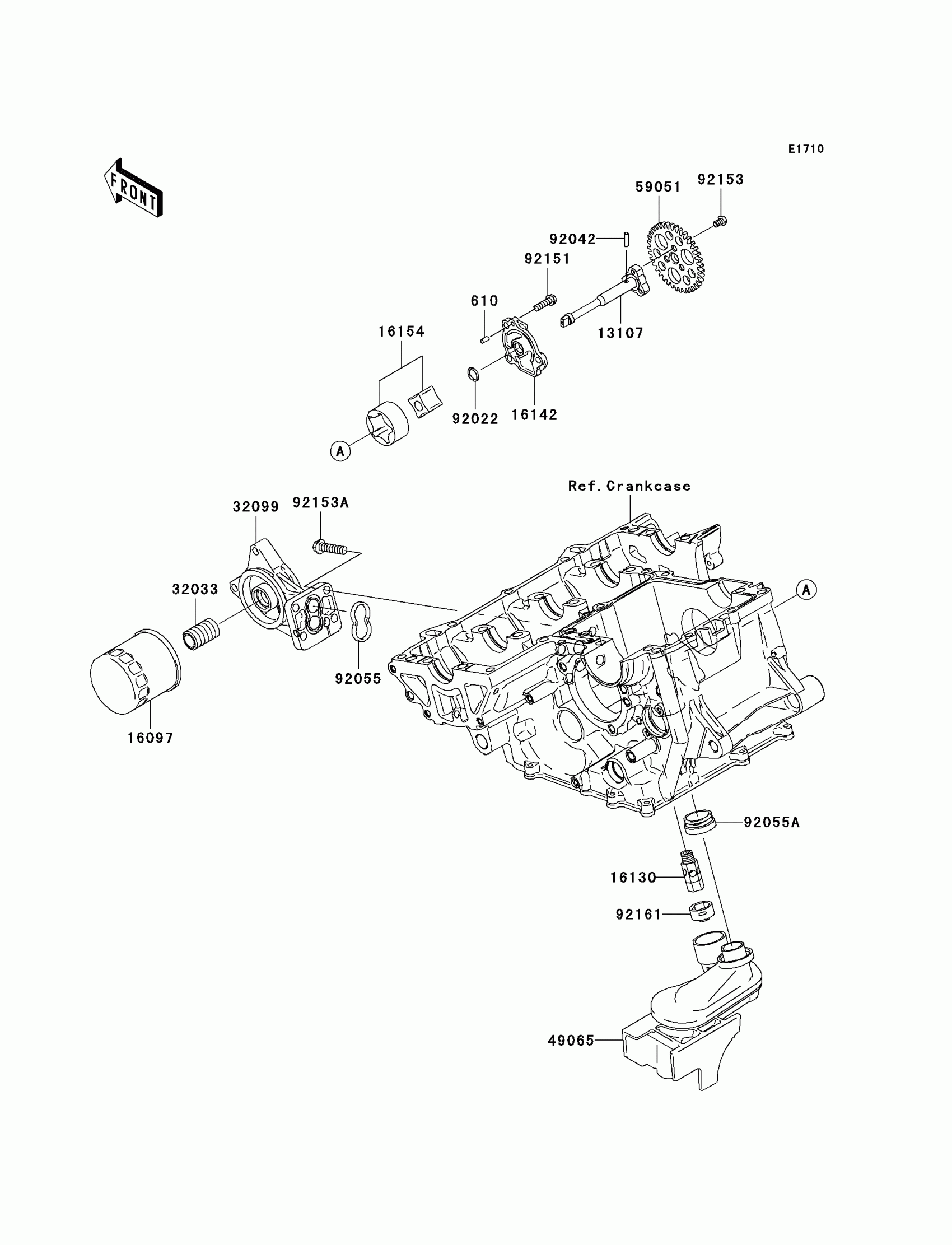

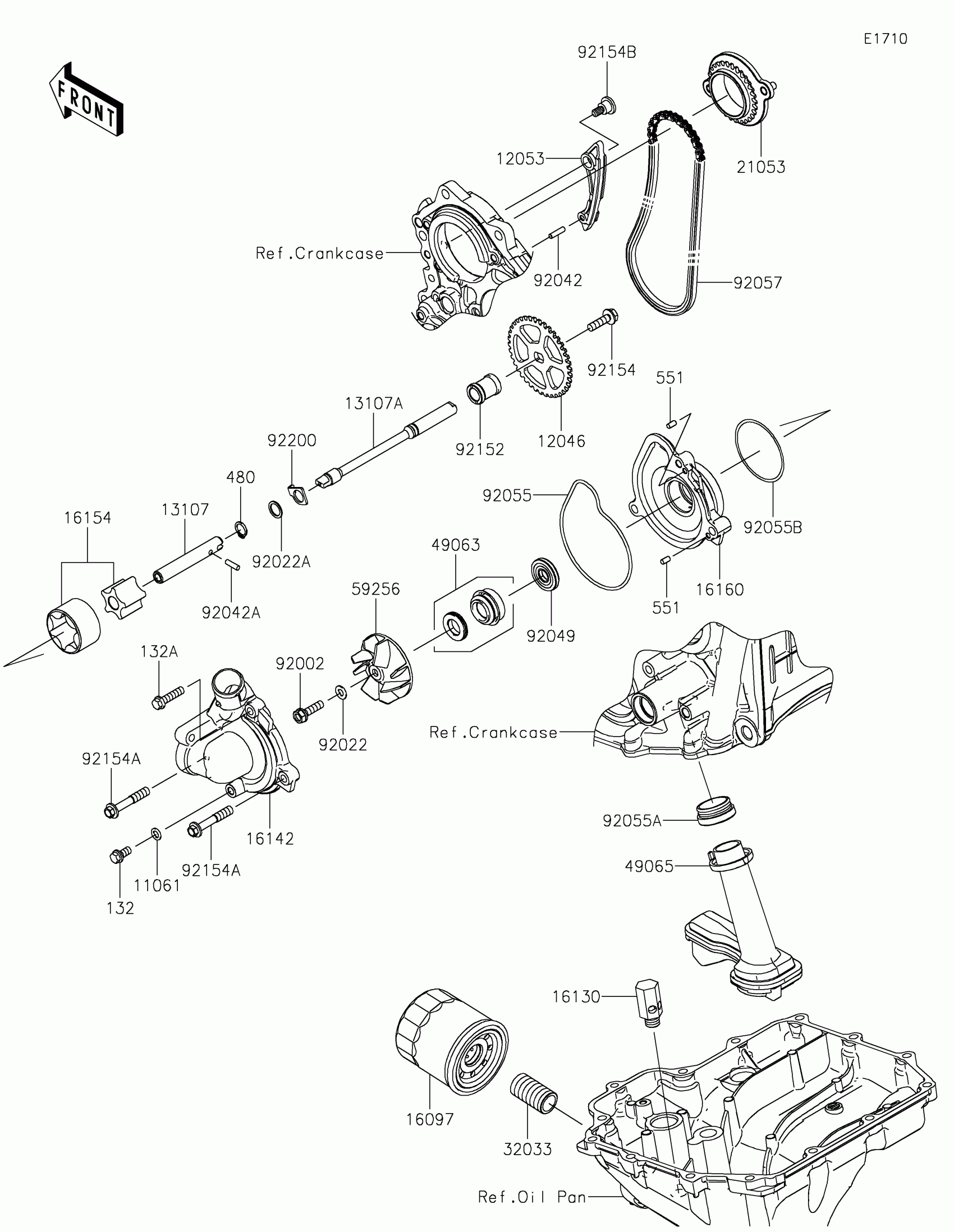

Kawasaki Ninja® ZX™-10R Oil Pump/Oil Filter Diagram

Description

Price

610

ROLLER,4X8

610A0408

$3.29

13107

SHAFT

13107-0060

Unavailable

16097

FILTER-ASSY-OIL

16097-0002

$11.00

16130

VALVE-ASSY-RELIEF

16130-1059

$37.32

16142

COVER-PUMP

16142-0005

$51.02

16154

ROTOR-PUMP,40.56X22

16154-1115

$62.78

32033

PIPE,OIL FILTER

32033-1535

$9.85

32099

CASE,OIL FILTER

32099-0013

$135.06

49065

FILTER-OIL

49065-0003

$52.21

59051

GEAR-SPUR,37T

59051-0038

Unavailable

92022

WASHER,11.2X15X1

92022-311

$3.53

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92055

RING-O,OIL LINE

92055-0018

$3.27

92055A

RING-O,OIL FILTER

92055-1503

$7.25

92151

BOLT,FLANGED-SMALL,6X20

92151-1252

Unavailable

92153

BOLT,TORX,6X10

92153-0661

$1.98

92153A

BOLT,FLANGED,8X30

92153-1086

$2.03

92161

DAMPER

92161-0070

$3.42
