2004 Kawasaki Ninja® ZX™-10R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

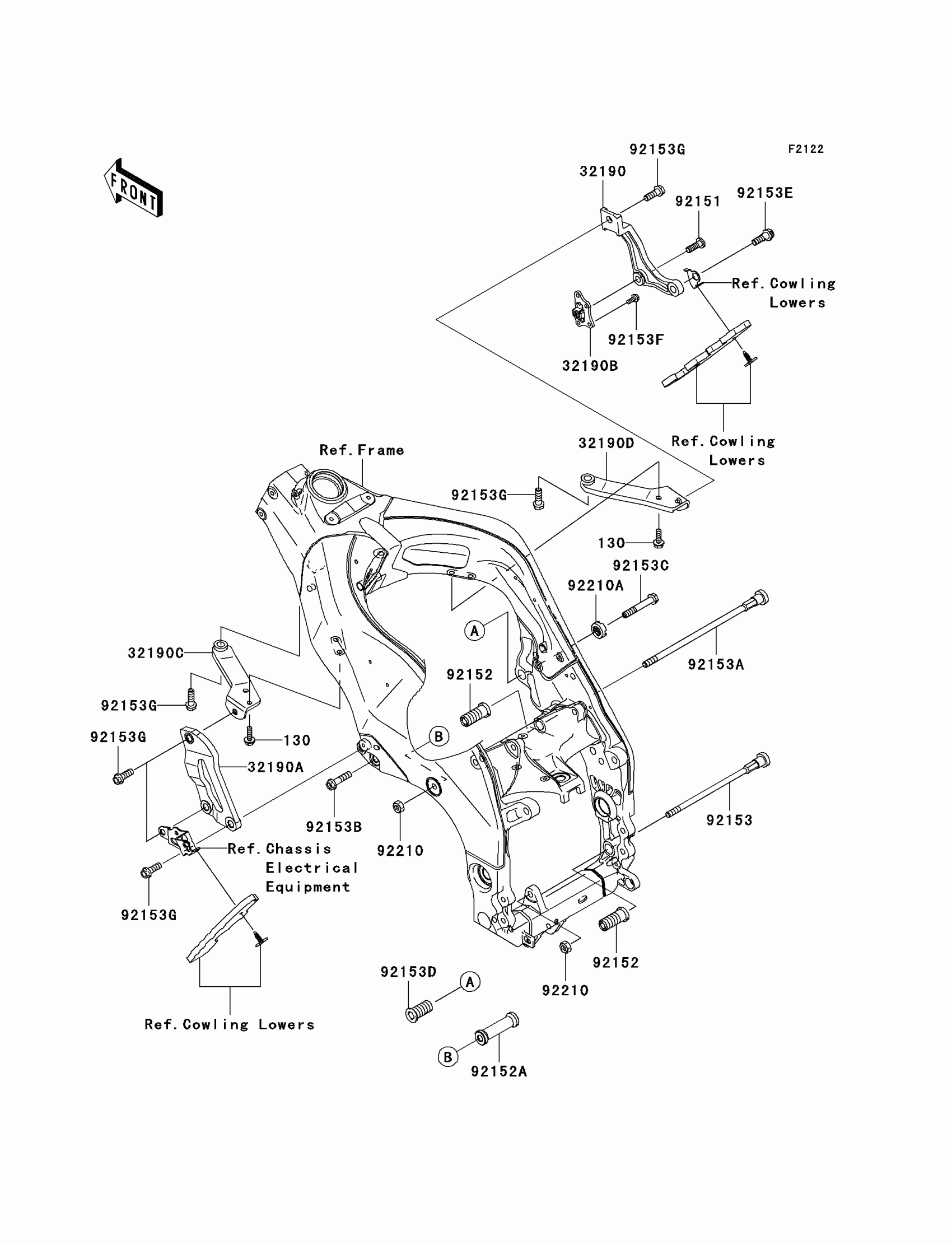

2004 Kawasaki Ninja® ZX™-10R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130W0822

1
Out of stock

32190

1

$88.24

In stock

32190A

1

$92.45

In stock

32190B

1

$33.29

In stock

32190C

1

$93.60

In stock

32190D

1

$93.60

In stock

92151

BOLT,SOCKET,10X30

92151-1372

1

$6.06

In stock

92152

COLLAR,ENGINE MOUNT

92152-0076

1

$26.35

In stock

92152A

COLLAR,ENGINE MOUNT

92152-0096

1

$38.33

In stock

92153

BOLT,SOCKET,10X227

92153-0436

1
Out of stock

92153A

BOLT,SOCKET,10X279

92153-0437

1
Out of stock

92153B

BOLT,FLANGED,10X42

92153-0438

1
Out of stock

92153C

BOLT,FLANGED,10X67

92153-0439

1
Out of stock

92153D

BOLT,SOCKET,20X43

92153-0488

1
Out of stock

92153E

BOLT,FLANGED,10X31

92153-0588

1
Out of stock

92153F

BOLT,FLANGED,6X16

92153-0713

1
Out of stock

92153G

BOLT,FLANGED,10X30

92153-0801

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,20MM

92210-1365

1
Out of stock
