2004 Kawasaki Ninja® ZX™-10R Crankcase Diagram

← All diagrams

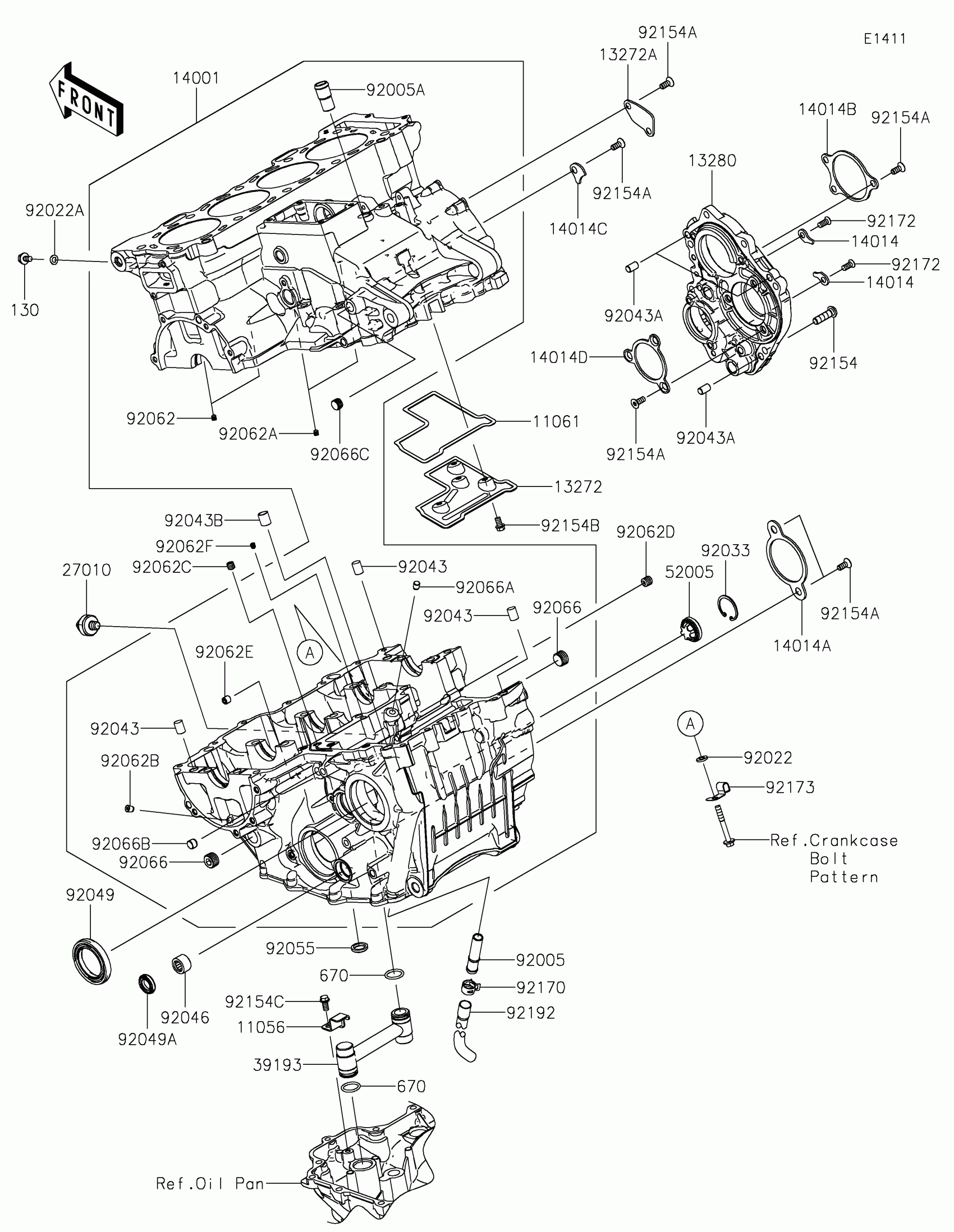

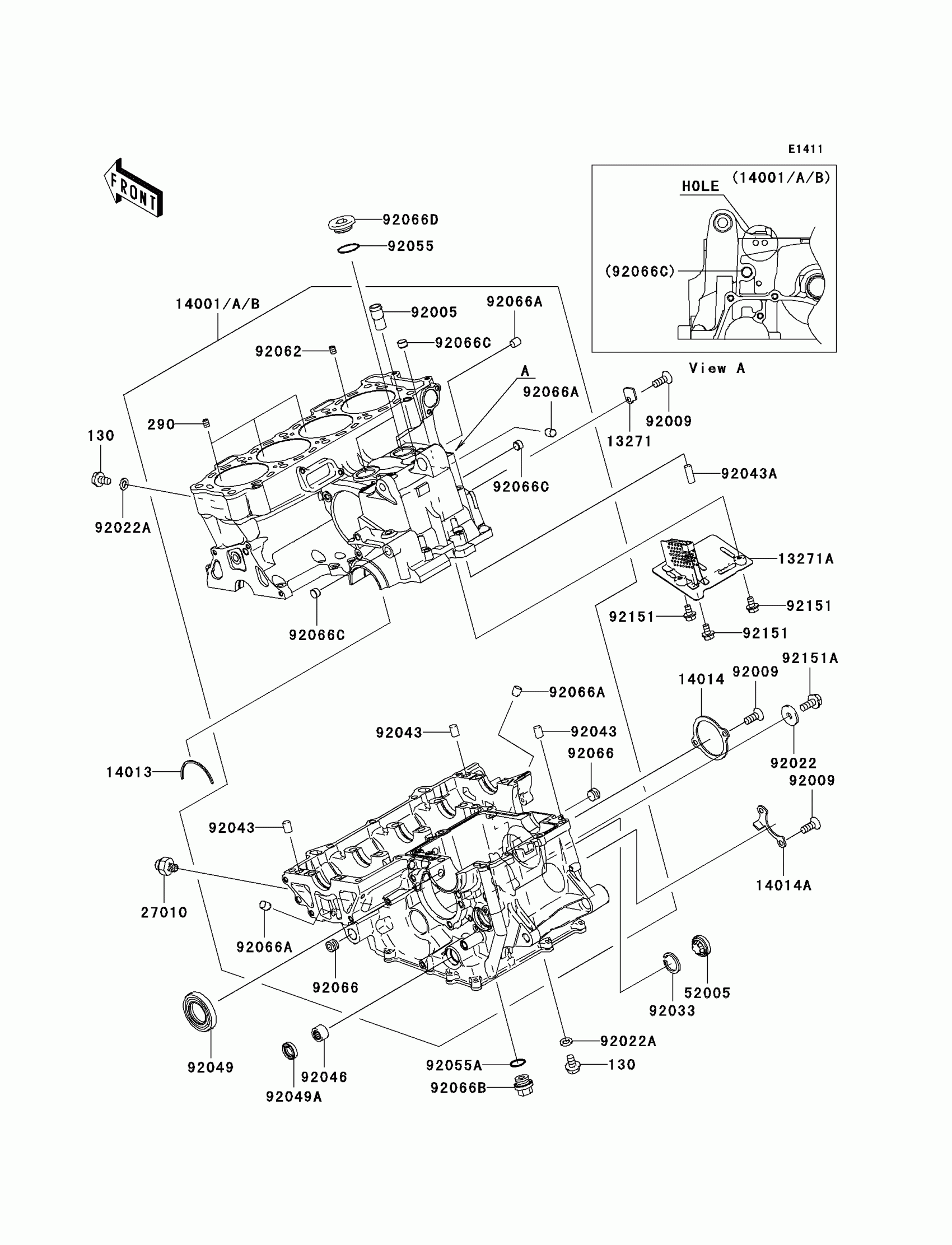

Find the part on the Crankcase diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Ninja® ZX™-10R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130Y0610

1
Out of stock

290

SCREW-SET-SOCKET,5X6

290Q0506

1
Out of stock

13271

PLATE

13271-0148

1
Out of stock

13271A

PLATE,BREATHER

13271-0361

1
Out of stock

14001

SET-CRANKCASE,2 HOLE

14001-0040

—
Out of stock

14001A

SET-CRANKCASE,NO HOLE

14001-0041

—
Out of stock

14001B

SET-CRANKCASE,1 HOLE

14001-0042

—
Out of stock

14013

RING-POSITION

14013-1051

1
Out of stock

14014

PLATE-POSITION

14014-0012

1
Out of stock

14014A

PLATE-POSITION

14014-0015

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

52005

GAUGE

52005-1120

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92009

SCREW,6X16

92009-1360

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92033

RING-SNAP

92033-1305

1
Out of stock

92043

PIN,10X14

92043-1506

1
Out of stock

92043A

PIN,6X16

92043-1690

1
Out of stock

92046

BEARING-NEEDLE,7E-HK1412

92046-037

1
Out of stock

92049

SEAL-OIL,TC32578

92049-1474

1
Out of stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92055A

RING-O,20X2

92055-1146

1
Out of stock

92062

NOZZLE

92062-0004

1
Out of stock

92066

PLUG,PT3/8X10

92066-0003

1
Out of stock

92066A

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066B

PLUG,MAIN GALLERY,18X9,BLACK

92066-1096

1
Out of stock

92066C

PLUG

92066-1110

1
Out of stock

92066D

PLUG,25X8

92066-1161

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X10

92151-1389

1
Out of stock

92151A

BOLT,FLANGED,6X14

92151-1476

1
Out of stock
