1989 Kawasaki Ninja® 750R Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

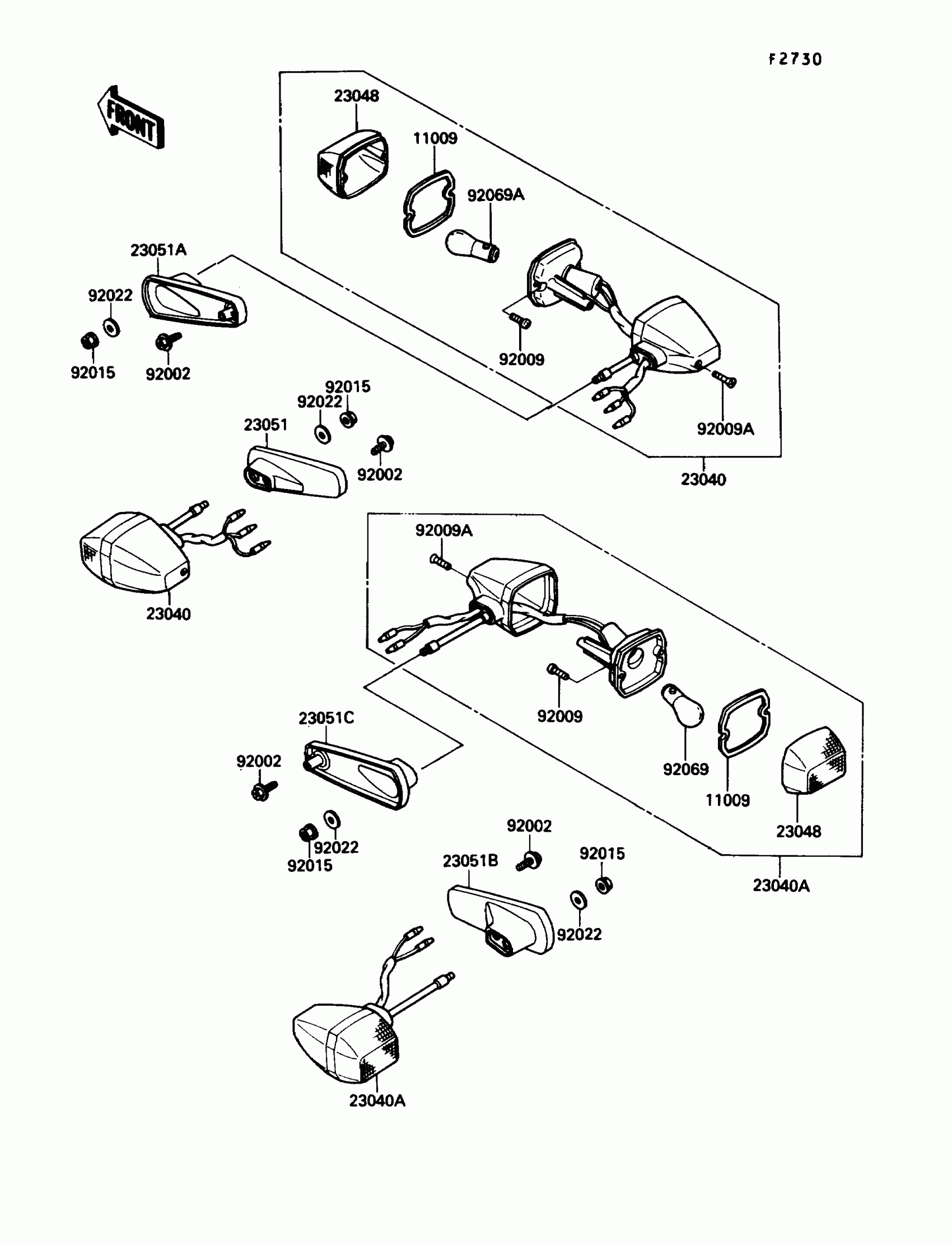

1989 Kawasaki Ninja® 750R Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1402

1
Out of stock

23040

LAMP-SIGNAL,FR

23040-1157

1
Out of stock

23040A

LAMP-SIGNAL,RR

23040-1158

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-1054

1
Out of stock

23051

BRACKET-SIGNAL LAMP,FR,LH

23051-1185

1
Out of stock

23051A

BRACKET-SIGNAL LAMP,FR,RH

23051-1186

1
Out of stock

23051B

BRACKET-SIGNAL LAMP,RR,LH

23051-1187

1
Out of stock

23051C

BRACKET-SIGNAL LAMP,RR,RH

23051-1188

1
Out of stock

92002

BOLT,TAPPING,5X16

92002-1921

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1115

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1304

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock
