1989 Kawasaki Ninja® 750R Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

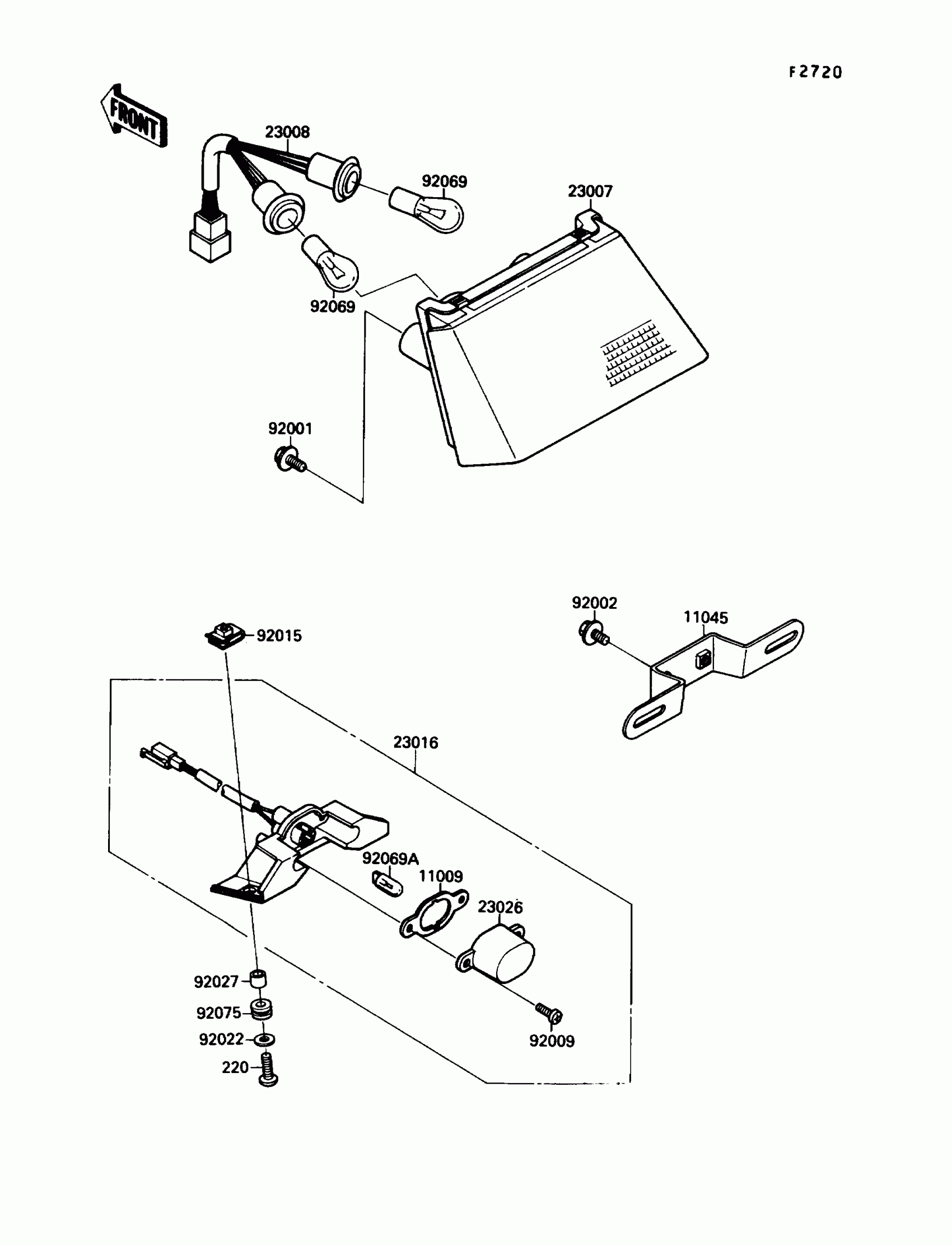

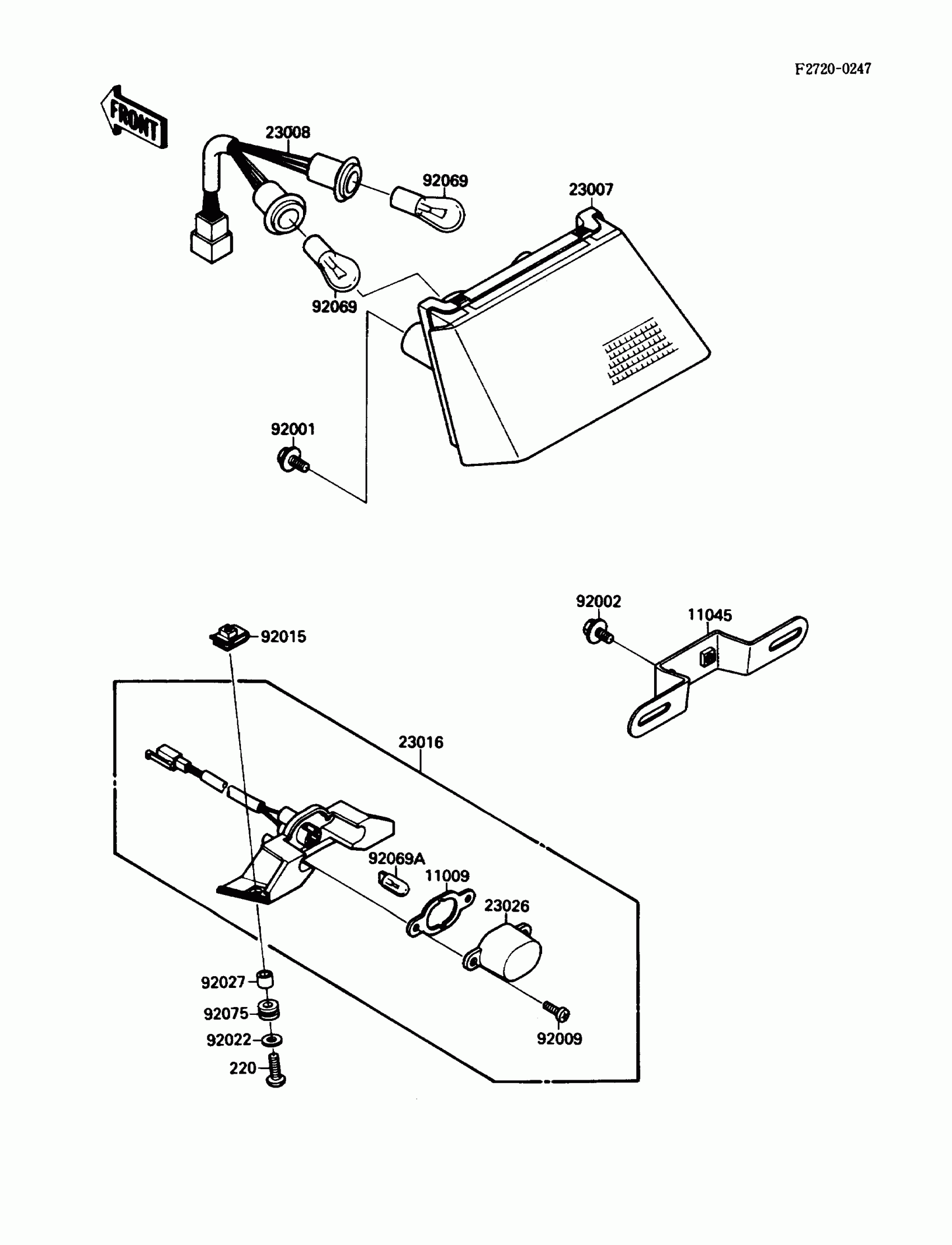

1989 Kawasaki Ninja® 750R Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS

220C0520

1

$1.58

In stock

11009

GASKET,LICENSE PLATE LAMP

11009-1619

1
Out of stock

11045

BRACKET,LICENSE LAMP

11045-1356

1
Out of stock

23007

LENS-COMP,TAIL LAMP

23007-1157

1

$150.53

In stock

23008

1

$37.85

In stock

23016

1

$69.29

In stock

23026

1

$50.16

In stock

92001

BOLT,6X12

92001-1771

1

$3.53

In stock

92002

BOLT,6X14

92002-1351

1

$3.43

In stock

92009

SCREW,TAPPING,4X12

92009-1395

1
Out of stock

92015

NUT,5MM

92015-1621

1

$5.45

In stock

92022

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

92027

COLLAR,5.6X8X8.8

92027-1923

1

$4.61

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 3CP

92069-1066

1

$5.80

In stock

92075

DAMPER

92075-1912

1

$5.07

In stock
