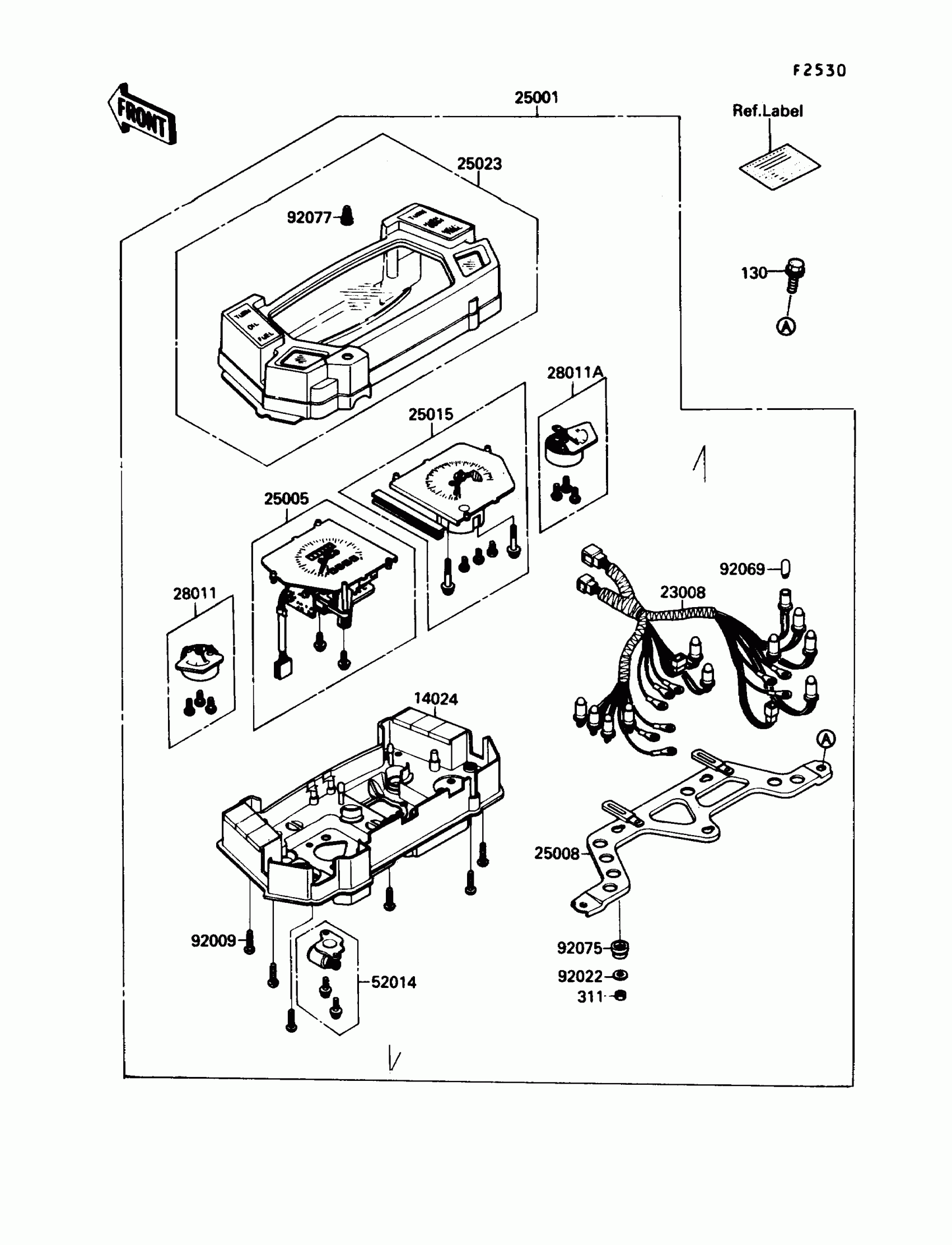

Kawasaki Ninja® 750R Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130C0614

Unavailable

311

NUT-HEX

311B0500

$0.47

14024

COVER,METER HOUSING

14024-1448

Unavailable

23008

SOCKET-ASSY,METER

23008-1327

$131.08

25001

METER-ASSY,MPH

25001-1666

$895.00

25005

SPEEDOMETER,MPH

25005-1342

$294.99

25008

BRACKET-METER

25008-1138

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-1265

$379.80

25023

COVER-METER CASE,UPP

25023-1150

$217.26

28011

METER,FUEL

28011-1092

Unavailable

28011A

METER,TEMP

28011-1093

$110.11

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

Unavailable

92009

SCREW,TAPPING,4X16

92009-1163

$3.13

92022

WASHER,5.2X16X1.2

92022-263

$1.22

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92075

DAMPER

92075-1805

$5.19

92077

BOOT,TRIP RESET KNOB

92077-1061

$7.56
