1989 Kawasaki Ninja® 750R Chassis Electrical Equipment Diagram

← All diagrams

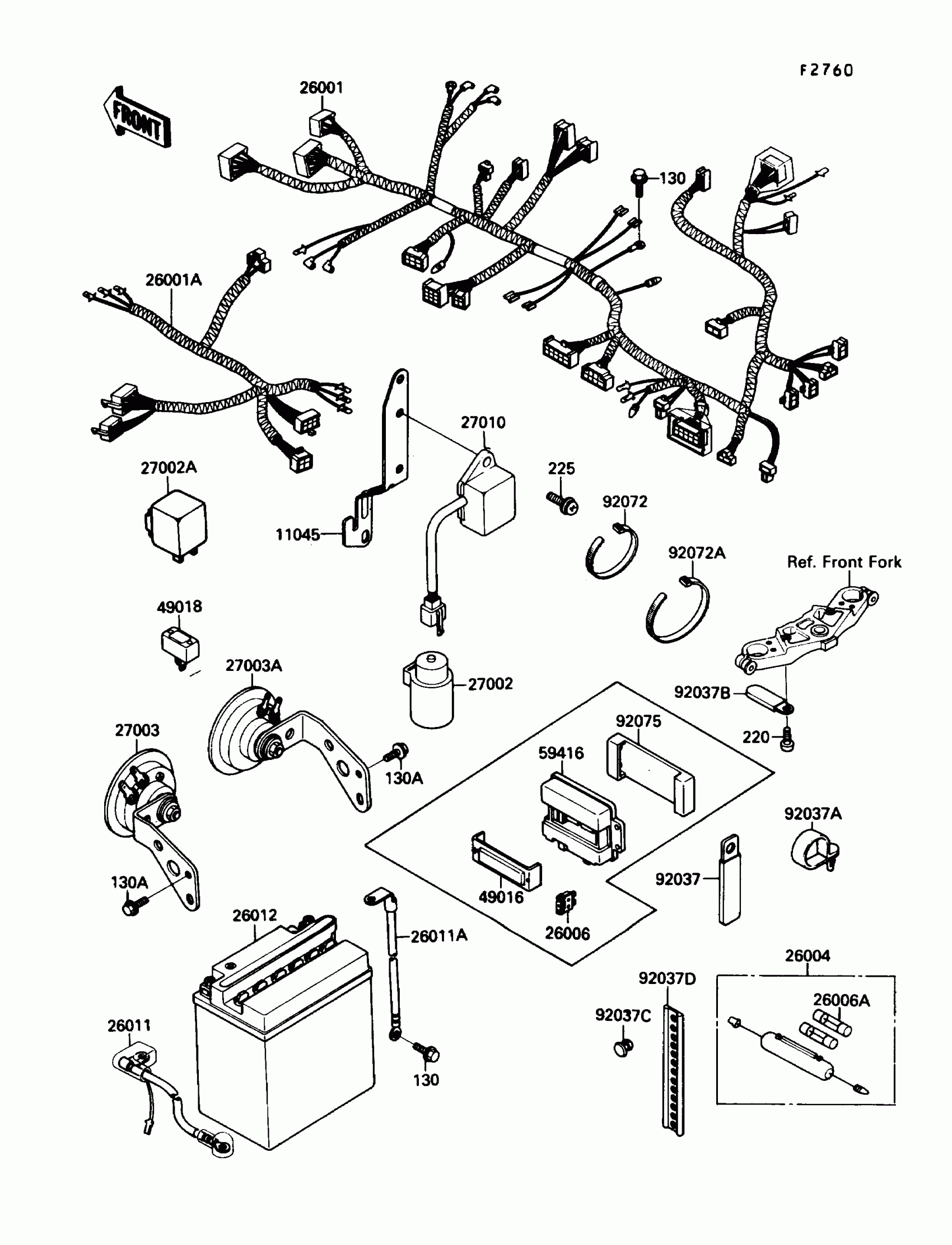

Find the part on the Chassis Electrical Equipment diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® 750R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED

130J0610

1
Out of stock

220

SCREW-PAN-CROS,5X10

220C0510

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock

11045

BRACKET,RELAY

11045-1369

1
Out of stock

26001

HARNESS,MAIN

26001-1819

1
Out of stock

26001A

HARNESS,FR

26001-1841

1
Out of stock

26004

FUSE-ASSY

26004-1075

1
Out of stock

26006

FUSE,BLADE,10A,RED

26006-1007

1
Out of stock

26006A

FUSE,30A,L=30

26006-1059

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1377

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1395

1
Out of stock

26012A

BATTERY,12V 14AH,YB14L-A2

26012-1233

1
Out of stock

27002

RELAY-ASSY

27002-1051

1
Out of stock

27002A

RELAY-ASSY,TURN SIGNAL

27002-1061

1
Out of stock

27003

HORN,LH,LOW TONE

27003-1271

1
Out of stock

27003A

HORN,RH,HIGH TONE

27003-1272

1
Out of stock

27010

SWITCH,RESERV LIGHTING

27010-1066

1
Out of stock

49016

COVER-SEAL,JUNCTION BOX

49016-1128

1
Out of stock

49018

DIODE

49018-1055

1
Out of stock

59416

CASE-ELECTRIC,JUNCTION BOX

59416-1064

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037B

CLAMP,L=45

92037-1539

1
Out of stock

92037C

CLAMP

92037-1579

1
Out of stock

92037D

CLAMP,BAND,L=72

92037-1883

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92072A

BAND,L=202

92072-1195

1
Out of stock

92075

DAMPER,JUNCTION BOX

92075-1688

1
Out of stock
