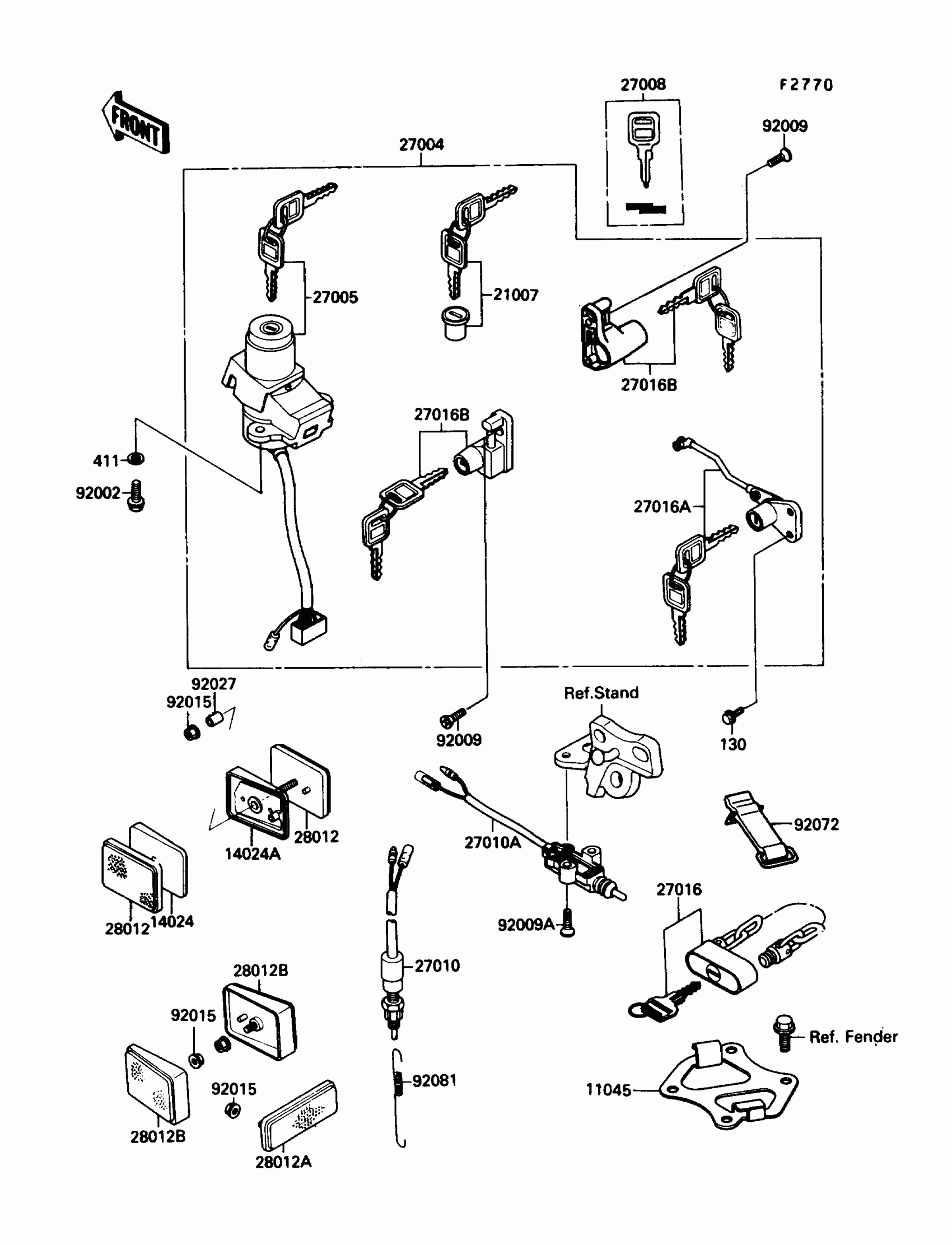

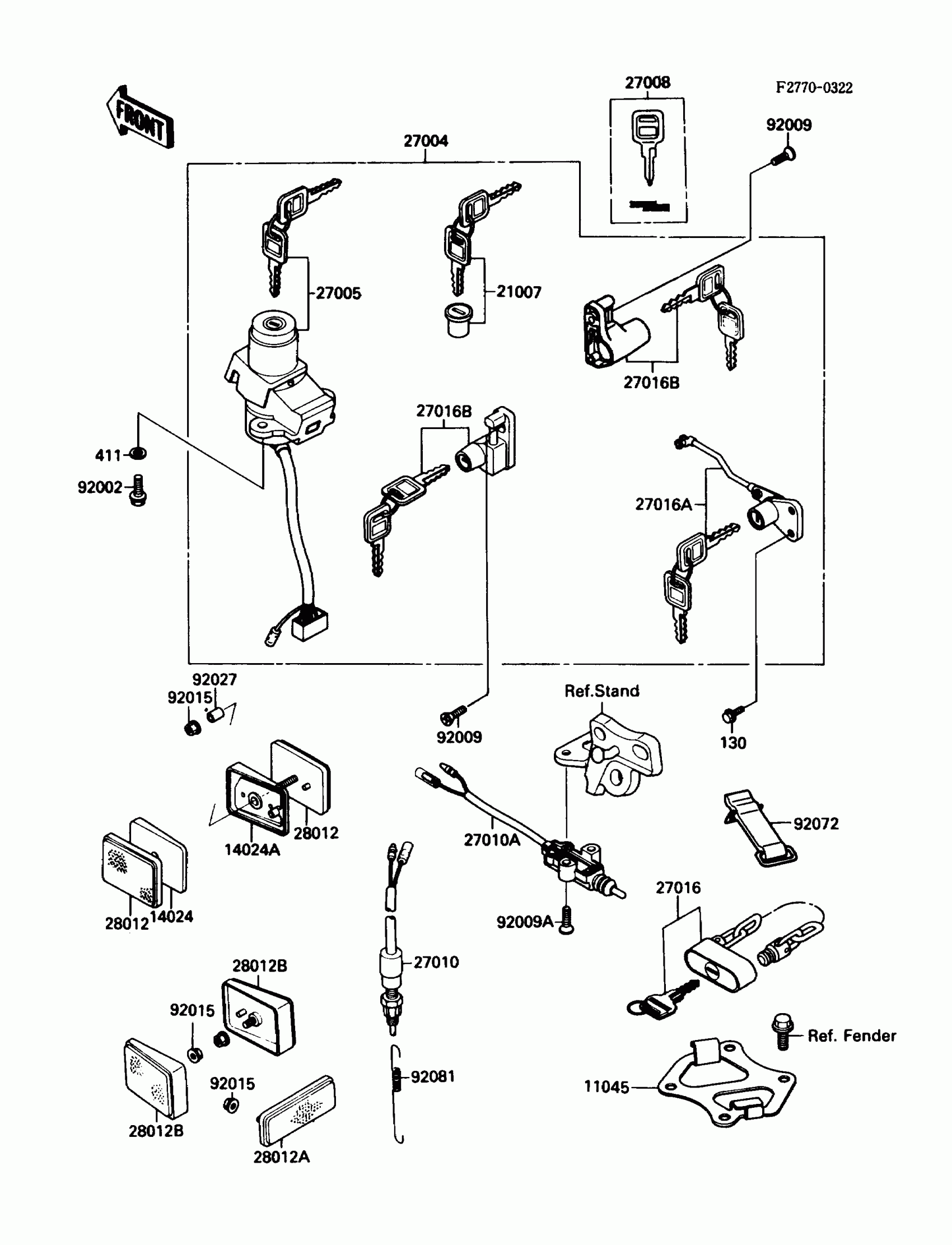

Find the part on the Ignition Switch/locks/reflectors diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® 750R Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130C0510

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1

$1.19

In stock

11045

BRACKET,CHAIN LOCK

11045-1678

1
Out of stock

14024

COVER,REFLECTOR,FR

14025-1886

1
Out of stock

14024A

COVER,REFLECTOR,FR

14025-1887

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5019

1

$94.15

In stock

27004

SWITCH-ASSY

27004-5294

1

$447.84

In stock

27005

SWITCH-ASSY-IGNITION

27005-5067

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,BRAKE LAMP

27010-1093

1

$27.22

In stock

27010A

SWITCH,SIDE STAND

27010-1223

1

$73.52

In stock

27016

LOCK-ASSY,WHEEL

27016-1051

1

$134.03

In stock

27016A

LOCK-ASSY,SEAT

27016-5118

1

$97.31

In stock

27016B

LOCK-ASSY,HELMET

27016-5121

1

$72.53

In stock

28012

REFLECTOR-REFLEX,FR

28012-1052

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1057

1

$21.76

In stock

28012B

1

$21.29

In stock

92002

BOLT,TORX,6X16

92002-1333

1

$2.15

In stock

92009

SCREW,5X12

92009-1401

1
Out of stock

92009A

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1

$4.42

In stock

92072

BAND,TOOL

92072-1176

1

$12.34

In stock

92081

1

$9.73

In stock
