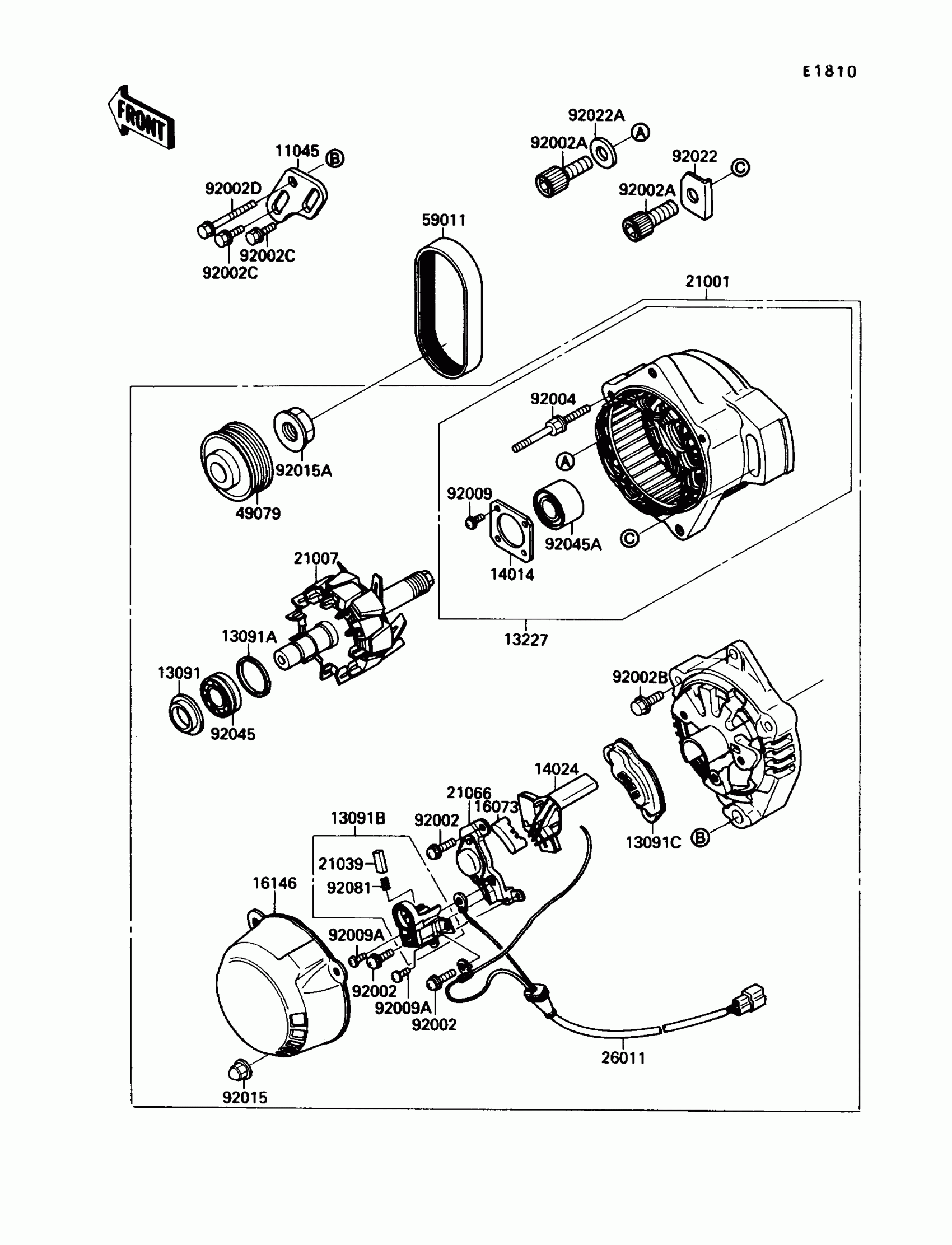

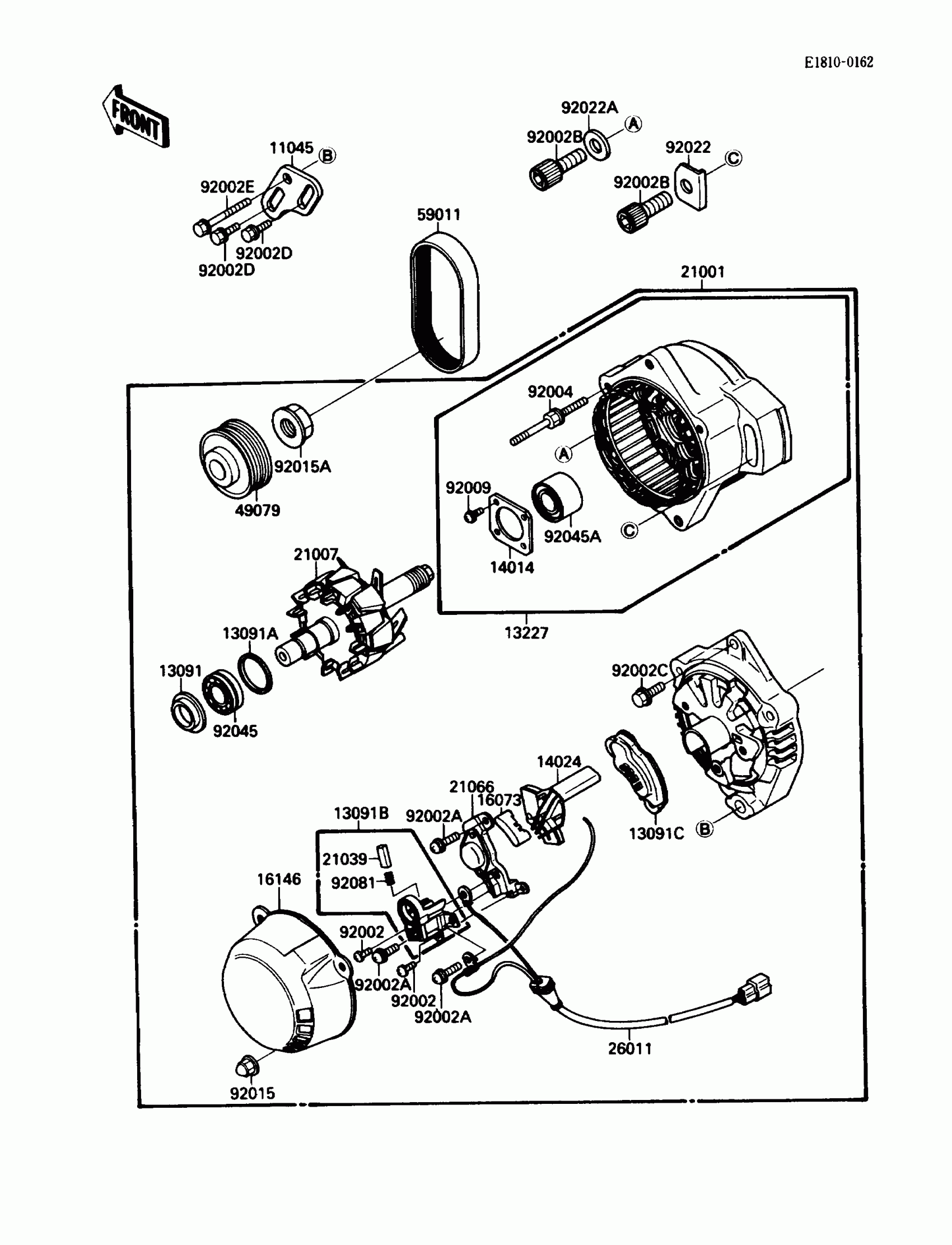

Kawasaki Ninja® 750R Generator Diagram

#

Description
Price

11045

BRACKET,GENERATOR

11045-1166

Unavailable

13091

HOLDER,COVER

13091-1327

$18.17

13091A

HOLDER,BEARING

13091-1328

$12.90

13091B

HOLDER,BRUSH

13091-1465

$113.58

13091C

RECTIFIER

13091-1466

$522.25

13227

HOUSING,GENERATOR

13227-1067

Unavailable

14014

PLATE-POSITION

14014-1085

Unavailable

14024

COVER,RECTIFIER

14025-1942

$10.61

16073

INSULATOR

16073-1062

$20.58

16146

COVER-ASSY,GENERATOR

16146-1076

$198.13

21001

GENERATOR

21001-1077

$1,313.88

21007

ROTOR,GENERATOR

21007-1158

$661.43

21039

BRUSH,CARBON

21039-1052

$29.01

21066

REGULATOR-VOLTAGE

21066-1056

$424.45

26011

WIRE-LEAD

26011-1393

$156.97

49079

PULLEY-BELT

49079-1052

Unavailable

59011

BELT,GENERATOR

59011-1052

Unavailable

92002

SCREW,4X8

92002-1379

$4.61

92002A

SCREW,5X17.5

92002-1380

$4.46

92002B

BOLT,SOCKET,10X45

92002-1854

Unavailable

92002C

BOLT

92002-1919

$9.17

92002D

BOLT,6X16

92002-1933

$3.60

92002E

BOLT,8X50

92002-1934

Unavailable

92004

STUD

92004-1167

$23.20

92009

SCREW

92009-1462

$4.39

92015

NUT,PULLEY LOCK

92015-1650

$9.86

92015A

NUT

92015-1657

$1.90

92022

WASHER

92022-1819

Unavailable

92022A

WASHER,10.5X19X3.2

92022-1820

$3.85

92045

BEARING-BALL,#6002NC

92045-1133

$54.40

92045A

BEARING-BALL

92045-1195

$99.30

92081

SPRING,BRUSH

92081-1759

$7.88
