1989 Kawasaki Ninja® 750R Ignition System Diagram

← All diagrams

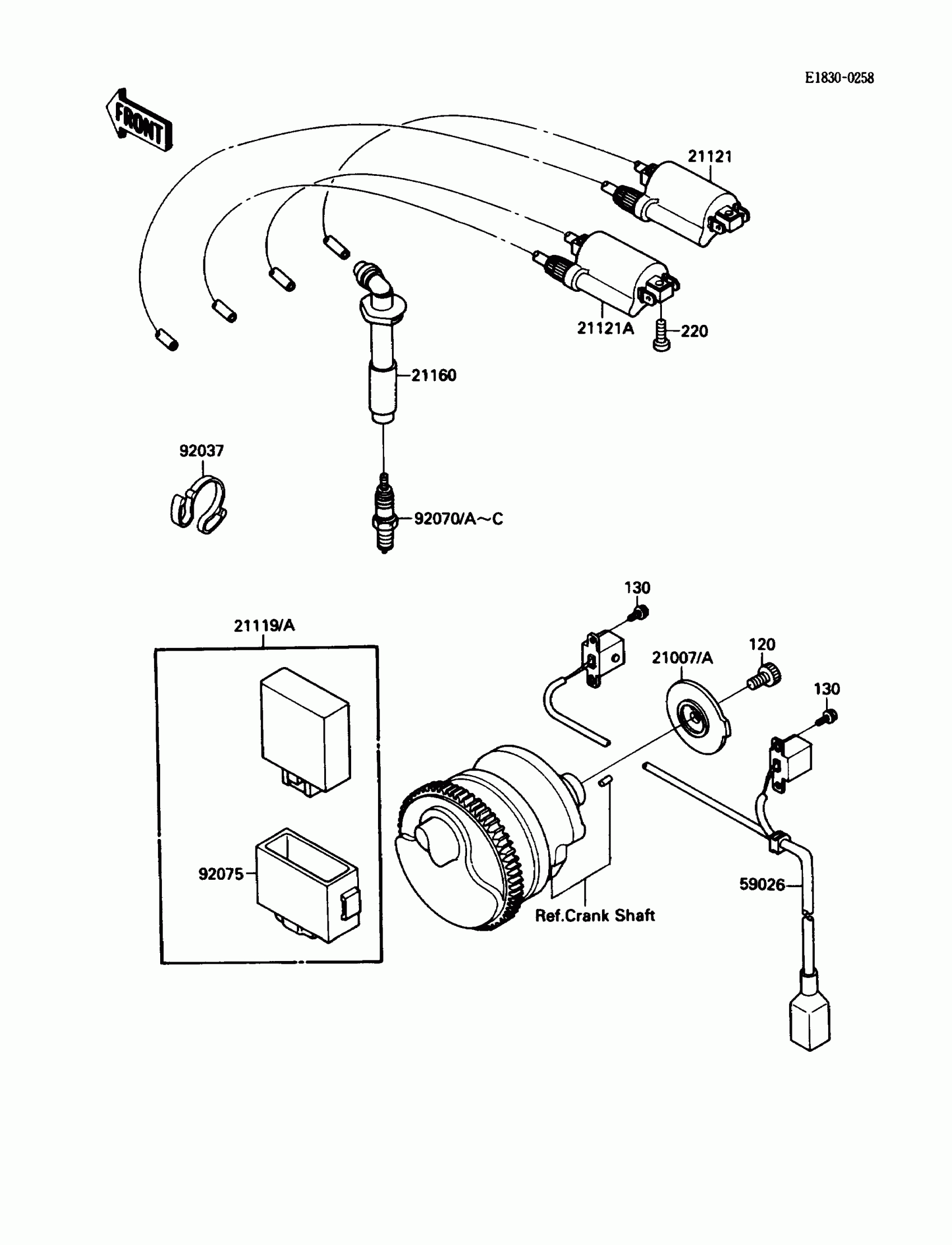

Find the part on the Ignition System diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® 750R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X20

120P0820

1
Out of stock

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

220

1

$2.92

In stock

21121

COIL-IGNITION,#1

21121-1149

1

$179.97

In stock

21121A

COIL-IGNITION,#2

21121-1150

1

$179.97

In stock

21160

CAP-ASSY-PLUG

21160-1068

1
Out of stock

59026

COIL-PULSING

59026-1081

1

$215.24

In stock

92037

CLAMP

92037-1887

1

$4.17

In stock

92070A

PLUG-SPARK,D8EA(NGK)

92070-1011

1
Out of stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92075

DAMPER,IGNITER

92075-1592

1

$46.64

In stock

21007

ROTOR,PULSING COIL

21007-1148

1

$46.43

In stock

21007A

ROTOR,PULSING COIL

21007-1160

1

$29.69

In stock

21119

IGNITER

21119-1204

1

$732.80

In stock

21119A

IGNITER

21119-1222

1

$732.80

In stock
