1986 Kawasaki Ninja® 600 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

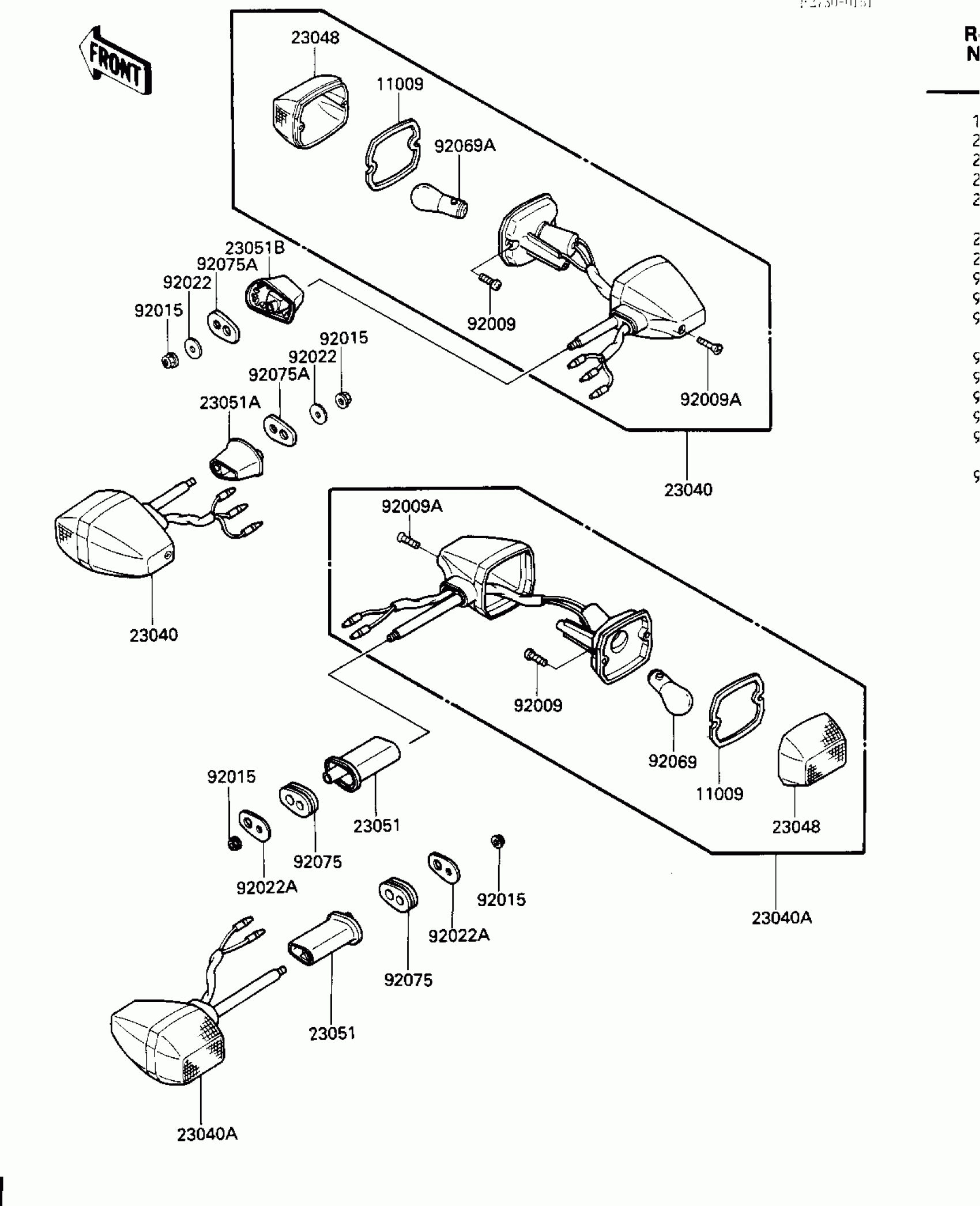

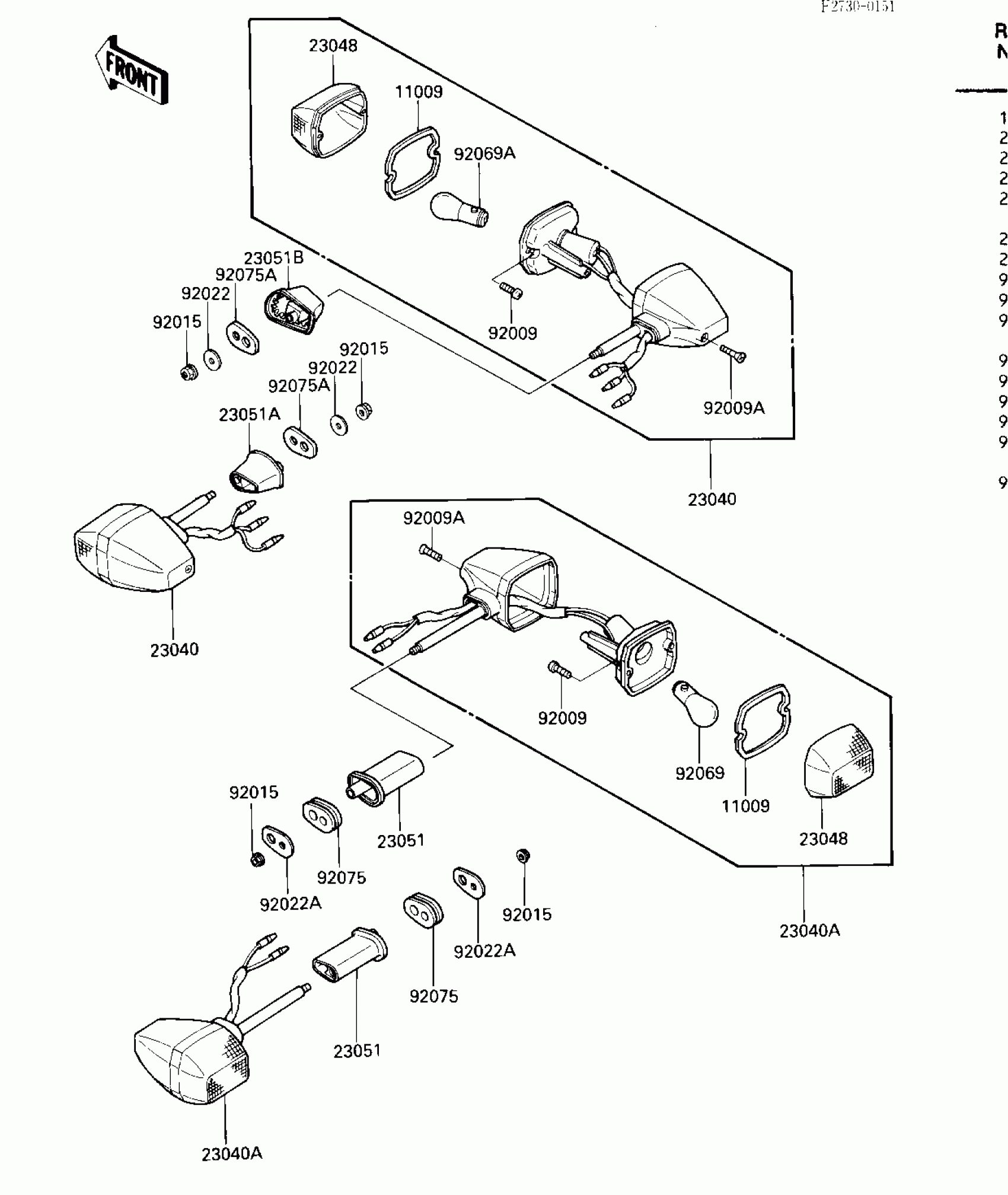

1986 Kawasaki Ninja® 600 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1402

1

$4.39

In stock

23040

LAMP-SIGNAL,FR

23040-1107

1
Out of stock

23040A

LAMP-SIGNAL,RR

23040-1108

1

$61.35

In stock

23048

LENS-SIGNAL LAMP

23048-1054

1

$8.30

In stock

23051

BRACKET-SIGNAL LAMP

23051-1165

1

$22.73

In stock

23051A

BRACKET-SIGNAL LAMP,F

23051-1172

1
Out of stock

23051B

BRACKET-SIGNAL LAMP,F

23051-1173

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1115

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1304

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92022A

WASHER,SIGNAL LAMP

92022-1672

1

$4.44

In stock

92069

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

92069A

1

$7.70

In stock

92075

DAMPER,SIGNAL LAMP

92075-1698

1

$7.60

In stock

92075A

DAMPER

92075-1749

1
Out of stock
