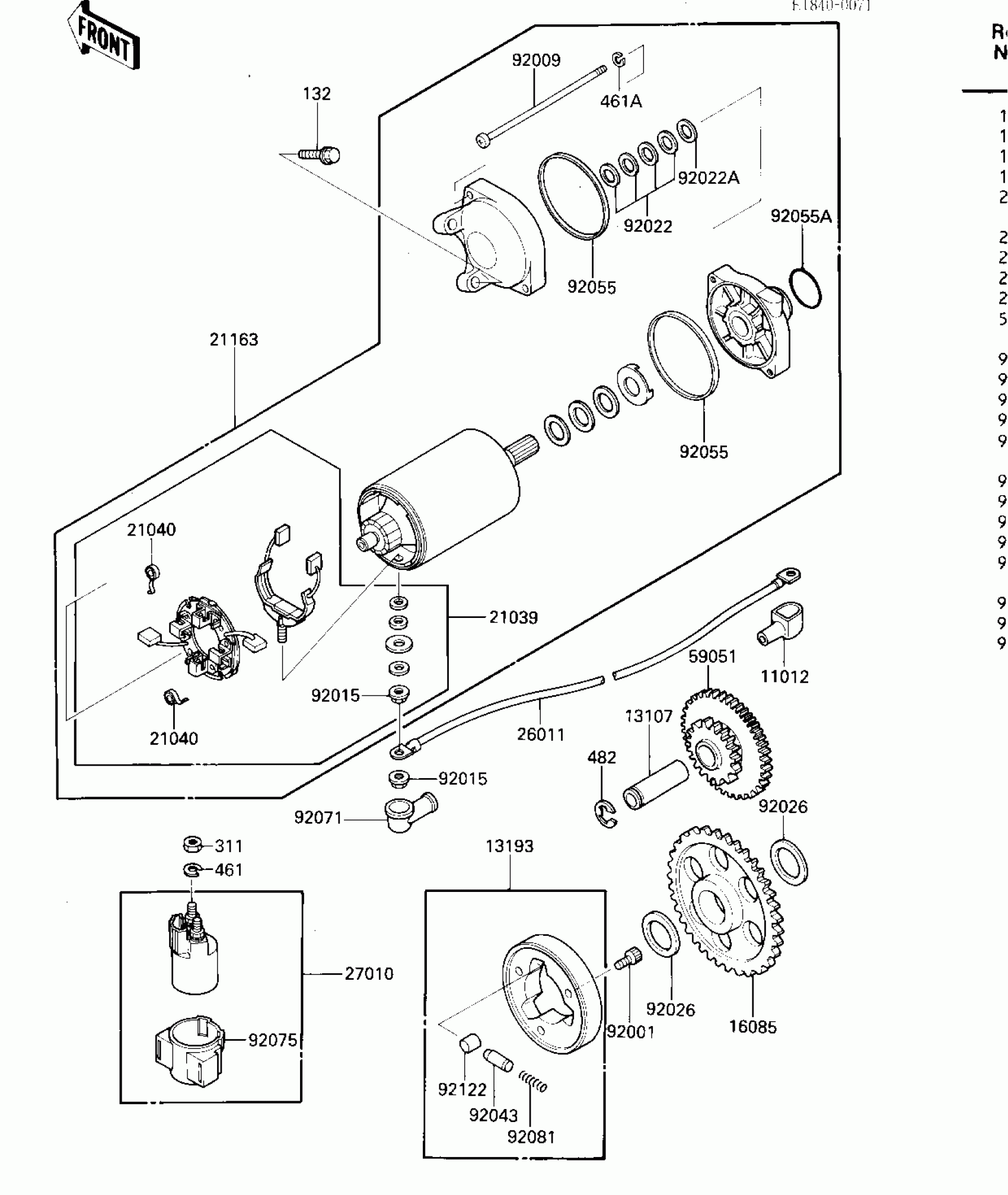

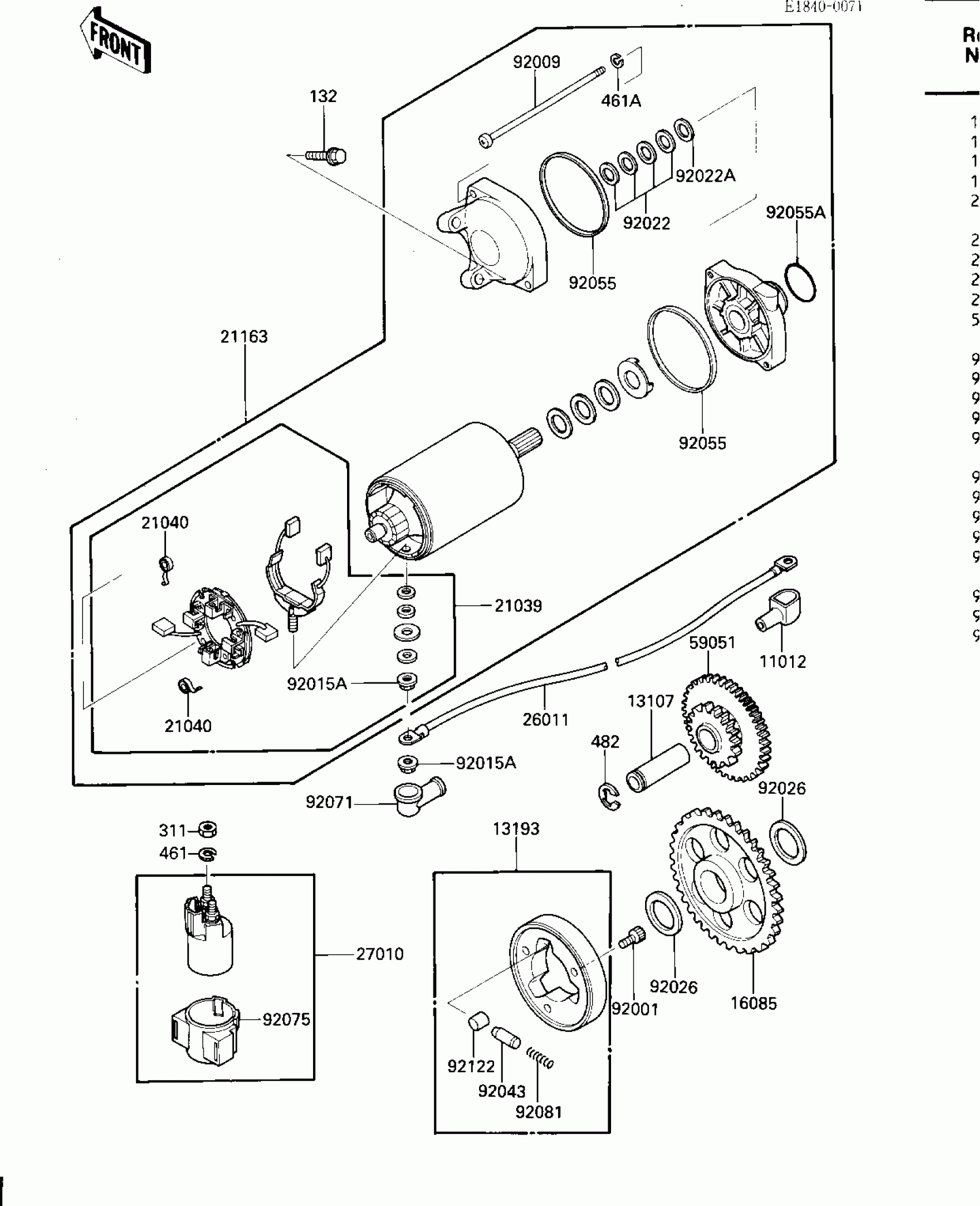

Kawasaki Ninja® 600 STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

11012

CAP,TERMINAL

11012-1354

$9.85

13107

SHAFT,IDLE GEAR

13107-1144

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$104.26

16085

GEAR,ONEWAY CLUTCH

16085-1030

$131.93

21039

BRUSH,CARBON

21039-1053

$96.05

21040

SPRING-BRUSH

21040-1003

$9.12

21163

STARTER-ELECTRIC

21163-1072

$604.15

26011

WIRE-LEAD,STARTER MOTOR

26011-1251

$79.27

27010

SWITCH,MAGNETIC

27010-1209

Unavailable

59051

GEAR-SPUR,IDLE

59051-1138

Unavailable

92001

BOLT,SOCKET,8X10

92001-1424

$4.42

92009

SCREW

92009-1397

$6.27

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.2

21025-011

$4.67

92022A

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER,25X36X3.2

92026-1025

$5.37

92043

PIN

92043-132

$4.67

92055

RING-O,64MM

92055-1086

$9.68

92055A

RING-O

92055-1276

$7.54

92071

GROMMET,STARTER TERMINAL

21017-017

$7.18

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING,COIL

92081-159

$2.72

92122

ROLLER

92122-006

$4.67

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

311

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

482

CIRCLIP-TYPE-E

482J0300

Unavailable
