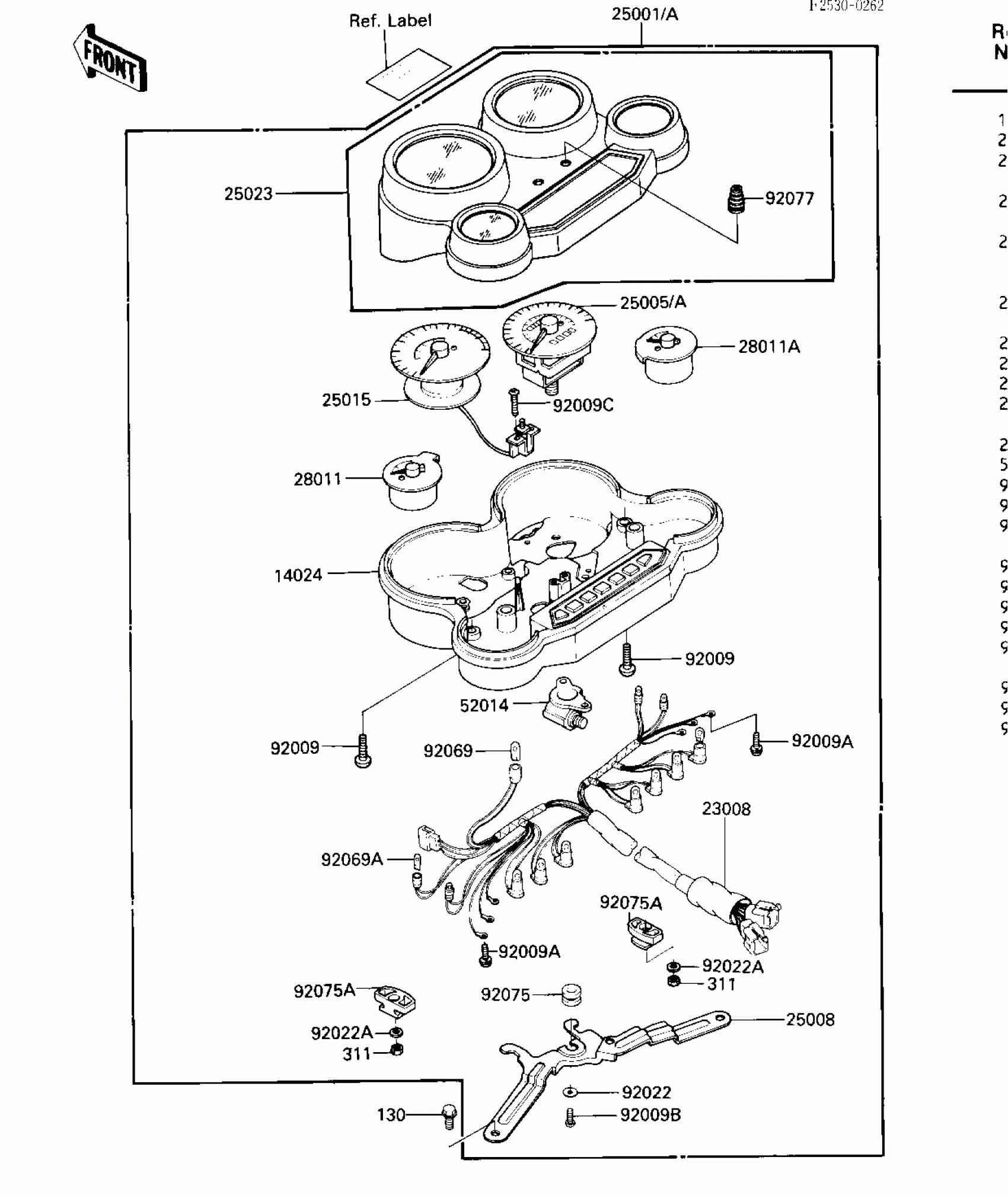

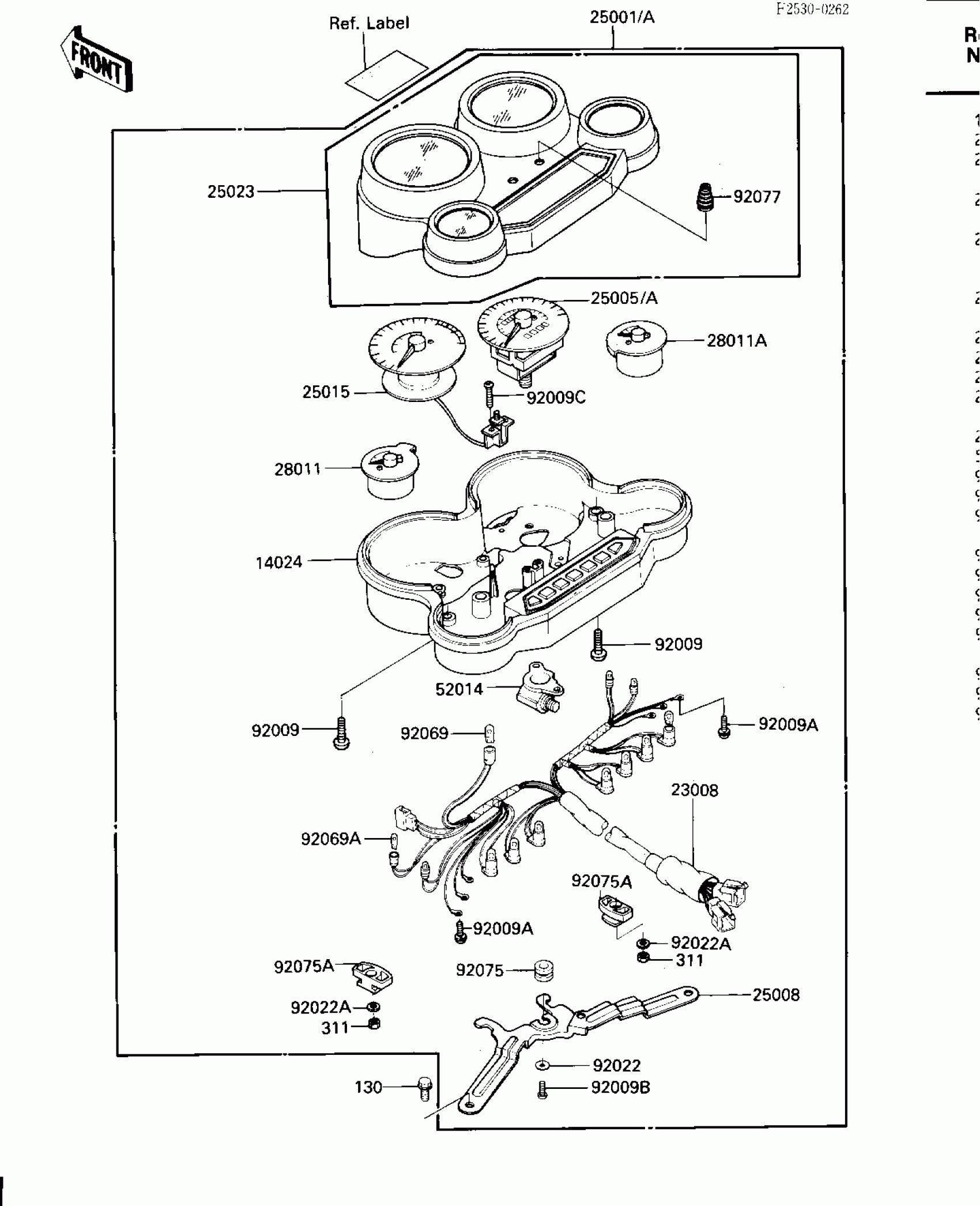

Kawasaki Ninja® 600 METERS Diagram

#

Description
Price

14024

COVER,METER HOUSING

14025-1877

Unavailable

23008

SOCKET-ASSY,METER

23008-1269

$146.34

25001

METER-ASSY,MPH

25001-1597

$882.47

25001A

METER-ASSY,KPH (Canada)

25001-1616

Unavailable

25005

SPEEDOMETER,MPH

25005-1299

$206.39

25005A

SPEEDOMETER,KPH (Canada)

25005-1300

Unavailable

25008

BRACKET-METER

25008-1119

$48.96

25015

TACHOMETER,X1000R/MIN

25015-1237

$361.76

25023

COVER-METER CASE

25023-1127

Unavailable

28011

METER,FUEL

28011-1062

$85.69

28011A

METER,TEMP

28011-1070

$85.69

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

Unavailable

92009

SCREW,4X16,BLACK

92009-1158

$3.20

92009A

SCREW,3X22

92009-1293

$3.53

92009B

SCREW,3X12

92009-1326

$3.20

92009C

SCREW,TAPPING,2.6X12

92009-1330

$2.68

92022

WASHER,3MM

92022-1374

Unavailable

92022A

WASHER,5.2X16X1.2

92022-263

$1.22

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92069A

BULB,12V 3W,T7

92069-1020

Unavailable

92075

DAMPER

92075-1435

$4.84

92075A

DAMPER,METER BRACKET

92075-1495

$12.20

92077

BOOT,TRIP RESET KNOB

92077-1061

$7.56

130

BOLT-FLANGED,6X14

130C0614

Unavailable

311

NUT-HEX

311B0500

$0.47
