1986 Kawasaki Ninja® 600 Ignition Switch/locks/reflectors Diagram

← All diagrams

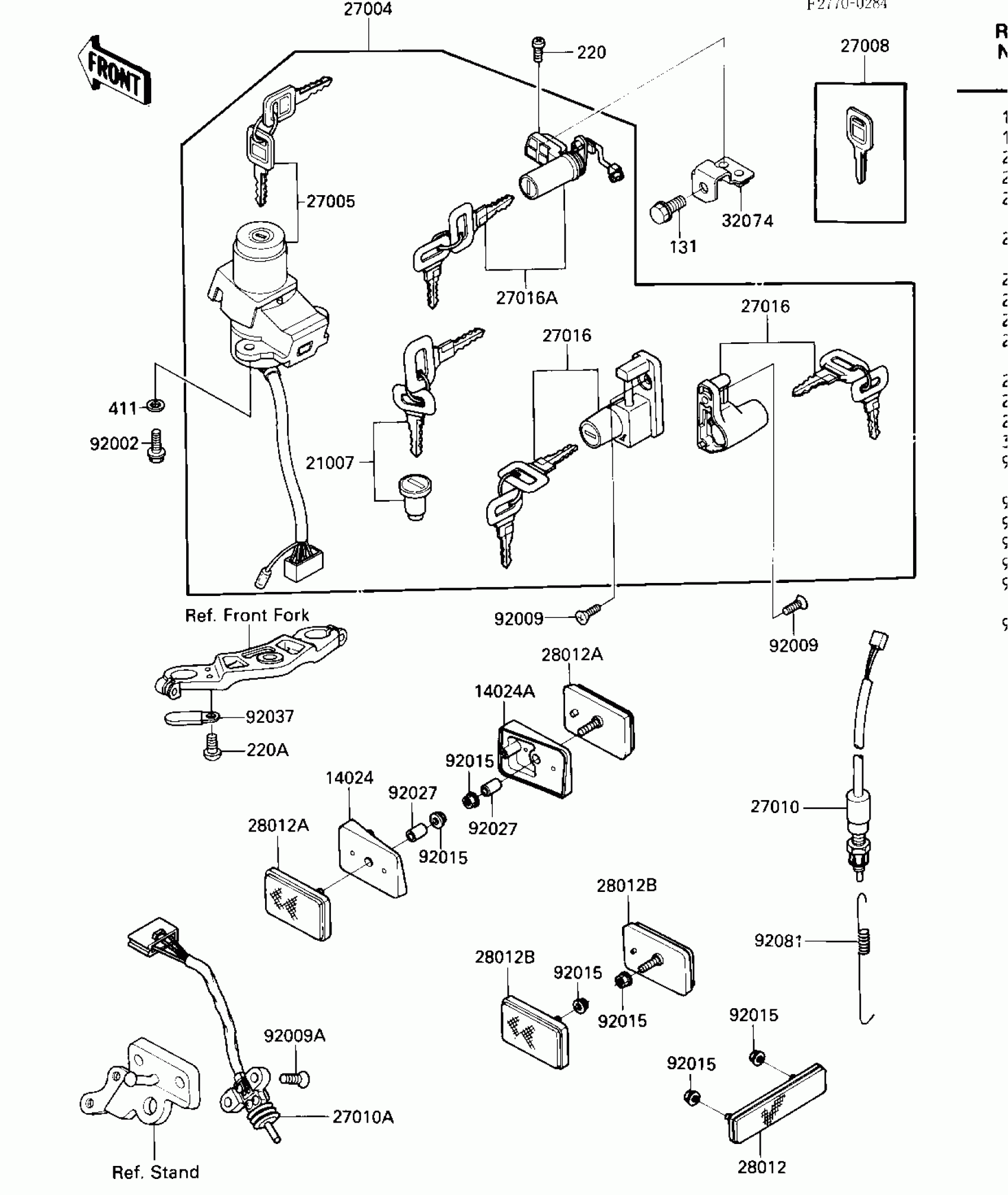

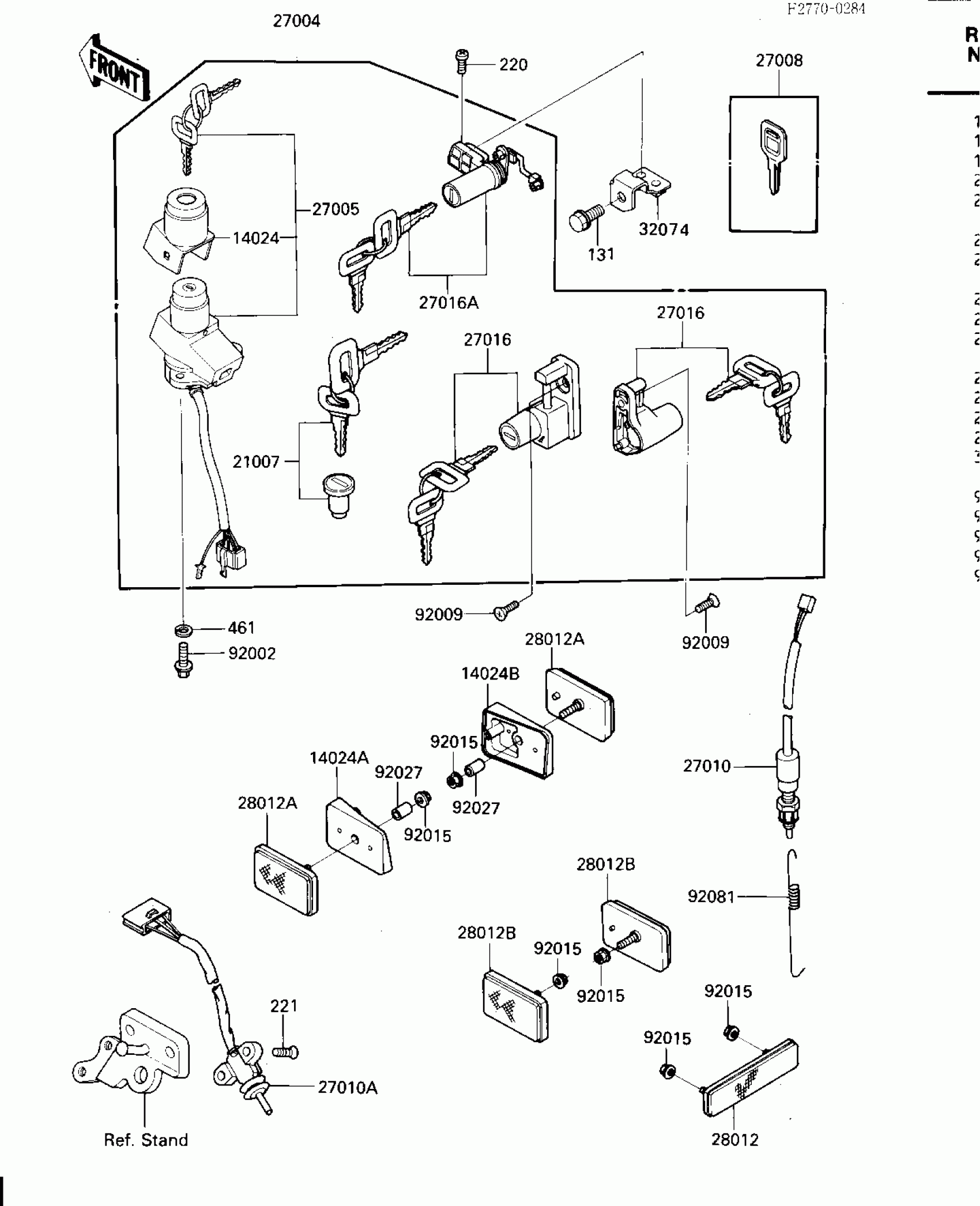

Find the part on the Ignition Switch/locks/reflectors diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,IGNITION SWITCH

14024-1332

1
Out of stock

14024A

COVER,REFLECTOR,FR

14025-1886

1
Out of stock

14024B

COVER,REFLECTOR,FR

14025-1887

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5012

1

$94.15

In stock

27004

SWITCH-ASSY

27004-5262

1

$447.84

In stock

27005

SWITCH-ASSY-IGNITION

27005-5047

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,BRAKE LAMP

27010-1093

1

$27.22

In stock

27010A

SWITCH,SIDE STAND

27010-1190

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5091

1

$72.53

In stock

27016A

LOCK-ASSY,SEAT

27016-5093

1
Out of stock

28012

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

28012A

REFLECTOR-REFLEX,FR

28012-1052

1
Out of stock

28012B

REFLECTOR-REFLEX,RR

28012-1054

1

$20.82

In stock

32074

BRACKET-LOCK,SEAT

32074-1121

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1

$2.15

In stock

92009

SCREW,5X18

92009-1305

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1

$4.42

In stock

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

1
Out of stock

131

BELT,FLANGED,6X12

131B0612

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1

$0.51

In stock

221

SCREW-CSK-CROS

221C0520

1

$3.24

In stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
