1986 Kawasaki Ninja® 600 Ignition Diagram

← All diagrams

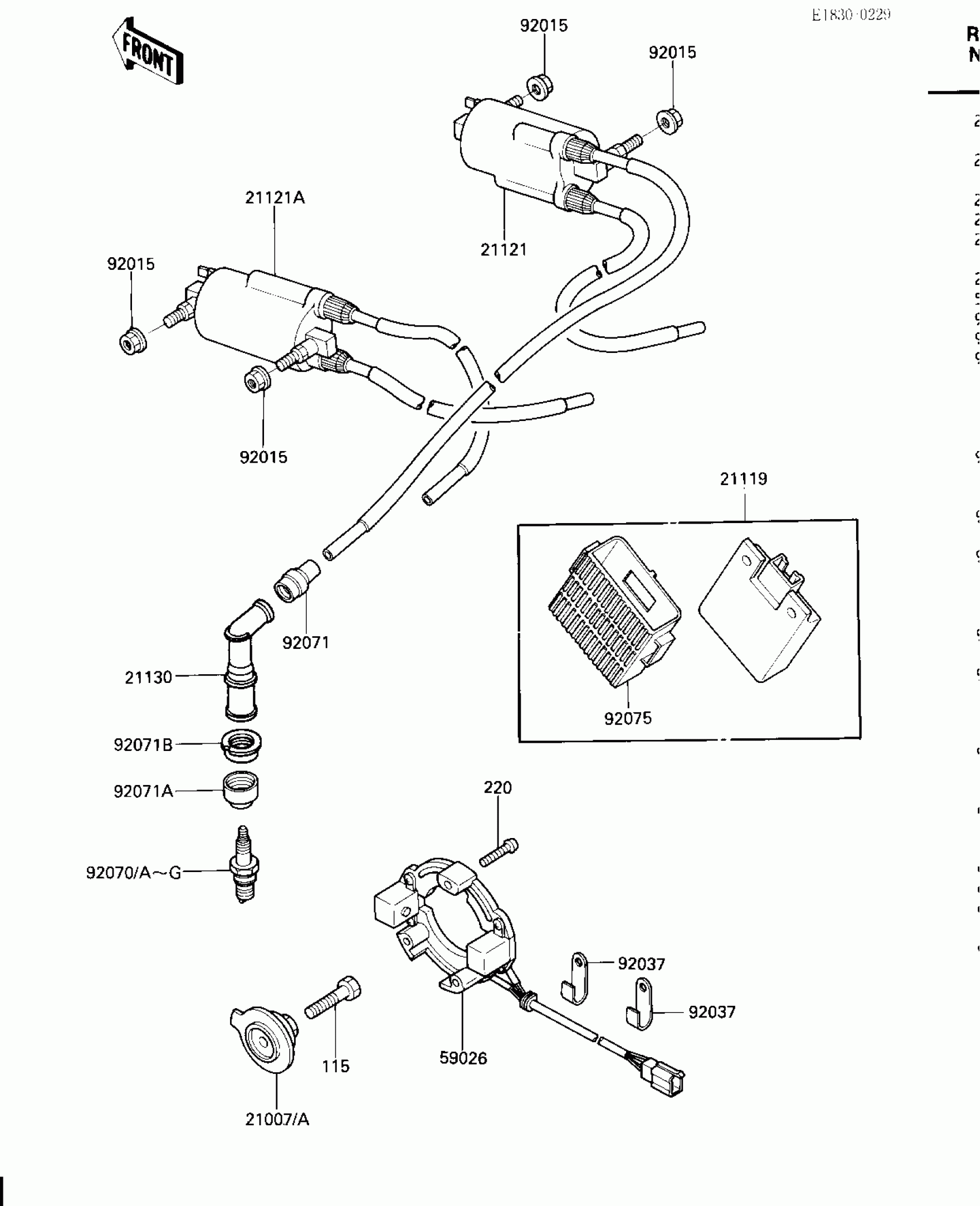

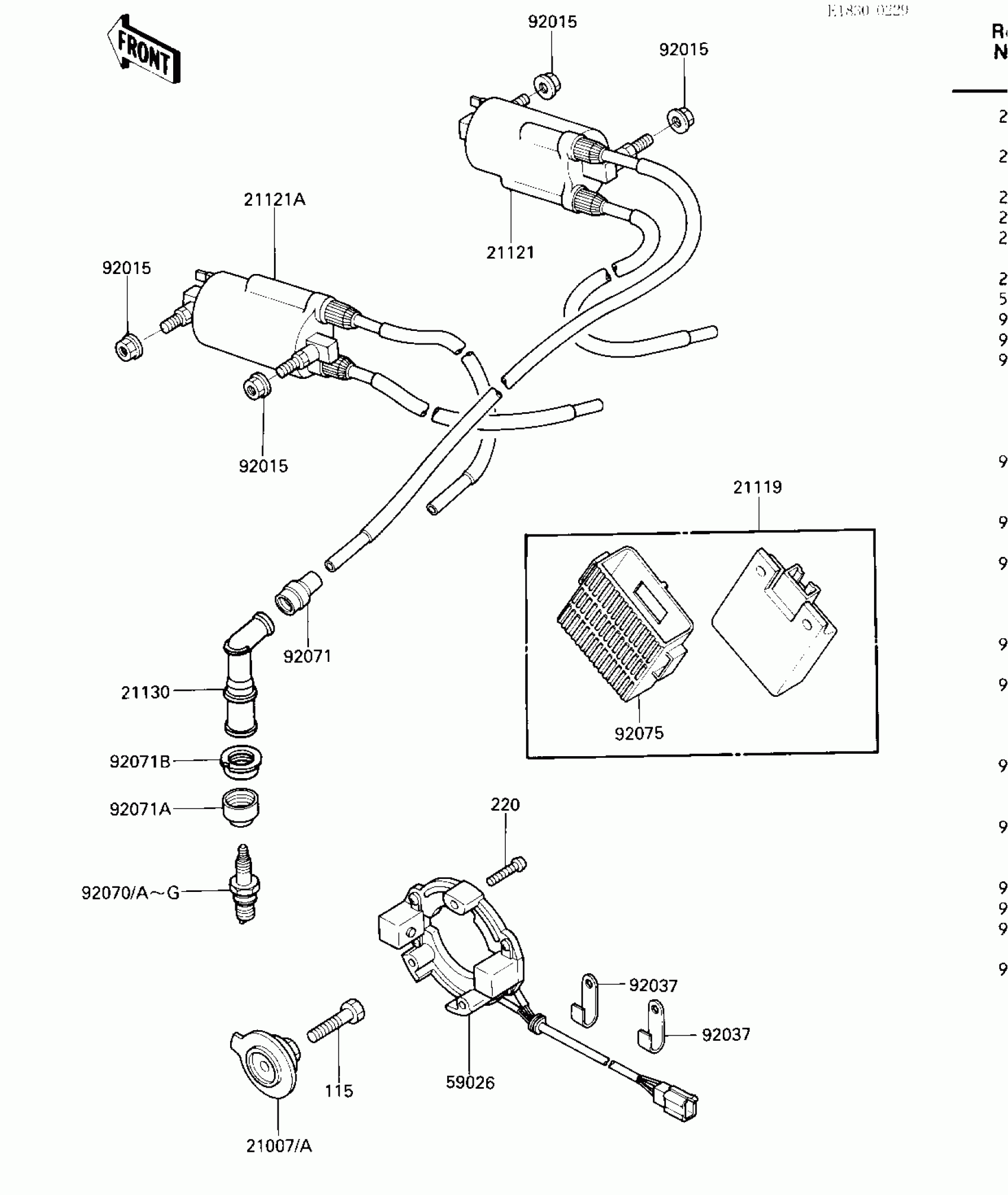

Find the part on the Ignition diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING COIL

21007-1130

1
Out of stock

21007A

ROTOR,PULSING COIL

21007-1135

1
Out of stock

21119

IGNITER

21119-1167

1

$604.69

In stock

21121

COIL-IGNITION,#1

21121-1132

1

$184.84

In stock

21121A

COIL-IGNITION,#2

21121-1133

1
Out of stock

21130

CAP-SPARK PLUG

21130-1057

1

$42.67

In stock

59026

COIL-PULSING

59026-1068

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92037

1

$3.75

In stock

92070A

SPARK PLUG D8EA

D8EA

1
Out of stock

92070B

1

$9.24

In stock

92070D

1

$2.74

In stock

92070G

1

$2.92

In stock

92071

1

$4.88

In stock

92071A

GROMMET,PLUG CAP

92071-1124

1

$9.14

In stock

92071B

GROMMET

92071-1144

1

$9.90

In stock

92075

DAMPER,IGNITER

92075-1504

1

$39.52

In stock

115

BOLT-SMALL-UPSET

115G0835

1
Out of stock

220

1

$3.24

In stock
