1986 Kawasaki Ninja® 600 Chassis Electrical Equipment Diagram

← All diagrams

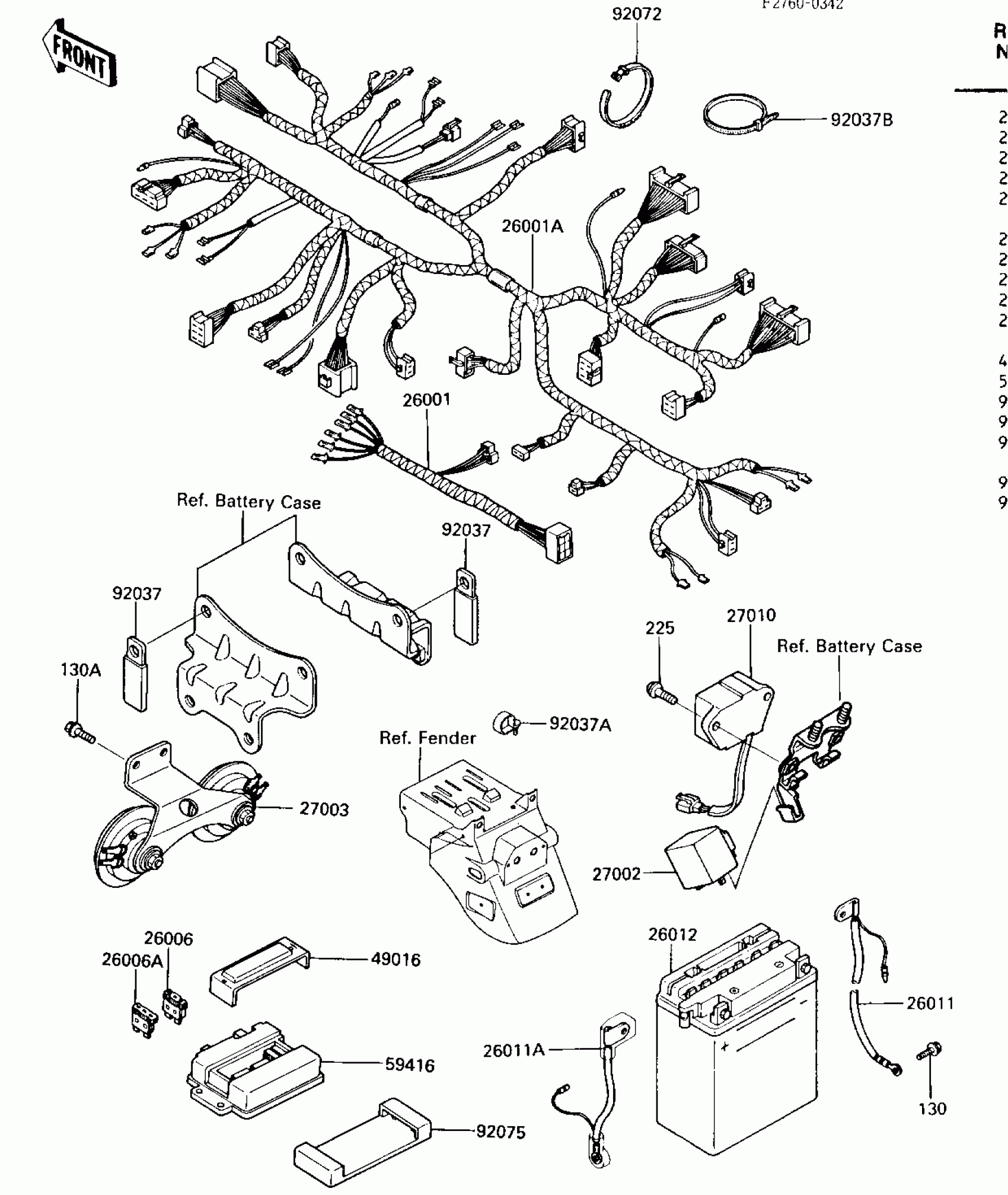

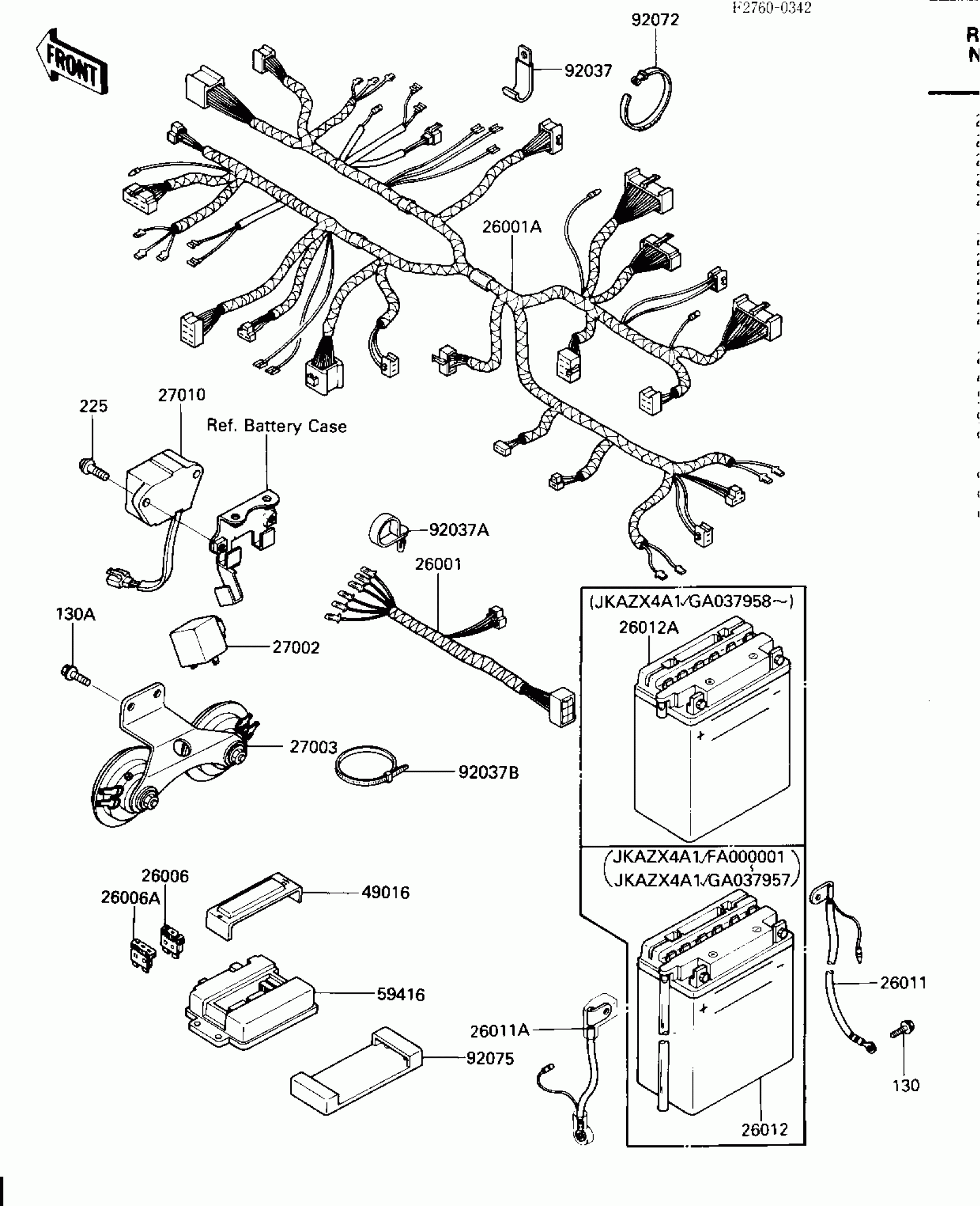

Find the part on the Chassis Electrical Equipment diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001

HARNESS

26001-1726

1

$40.32

In stock

26001A

HARNESS,MAIN

26001-1733

1
Out of stock

26006

1

$4.39

In stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1

$3.94

In stock

26011

WIRE-LEAD,BATTERY GROUND

26011-1195

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1315

1
Out of stock

26012

FB BAT FB12A-A

26012-1004

1

$96.88

In stock

26012A

26012-1210 (Canada)

26012-1132

1

$96.88

In stock

27002

1

$96.83

In stock

27003

HORN,DOUBLE

27003-1259

1

$221.43

In stock

27010

1

$228.55

In stock

49016

COVER-SEAL,FUSE

49016-1106

1

$9.10

In stock

59416

1

$193.84

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037B

CLAMP,L=200

92037-1576

1

$8.22

In stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

92075

DAMPER,JUNCTION BOX

92075-1688

1

$13.64

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130C0612

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock
