1986 Kawasaki Ninja® 600 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

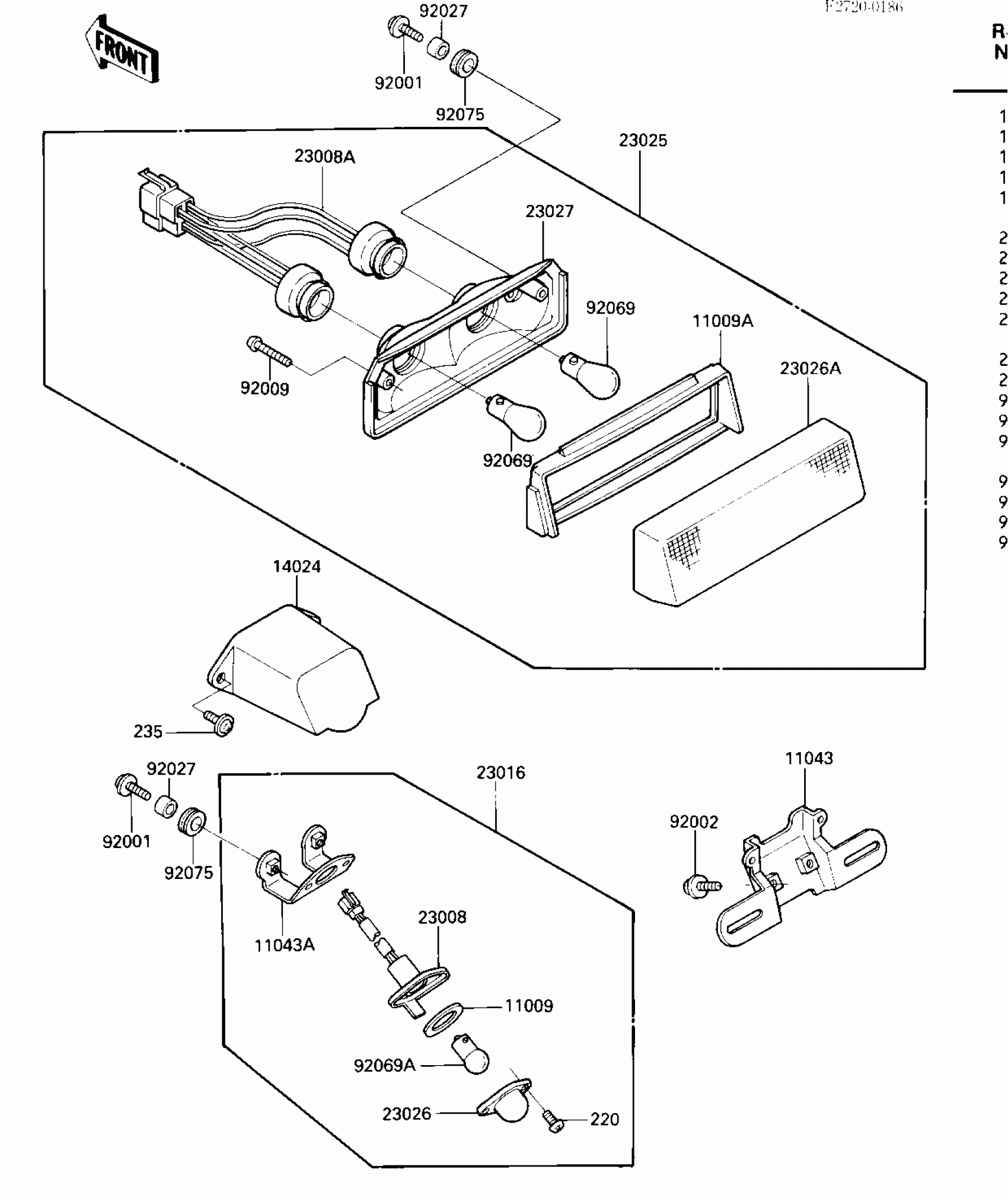

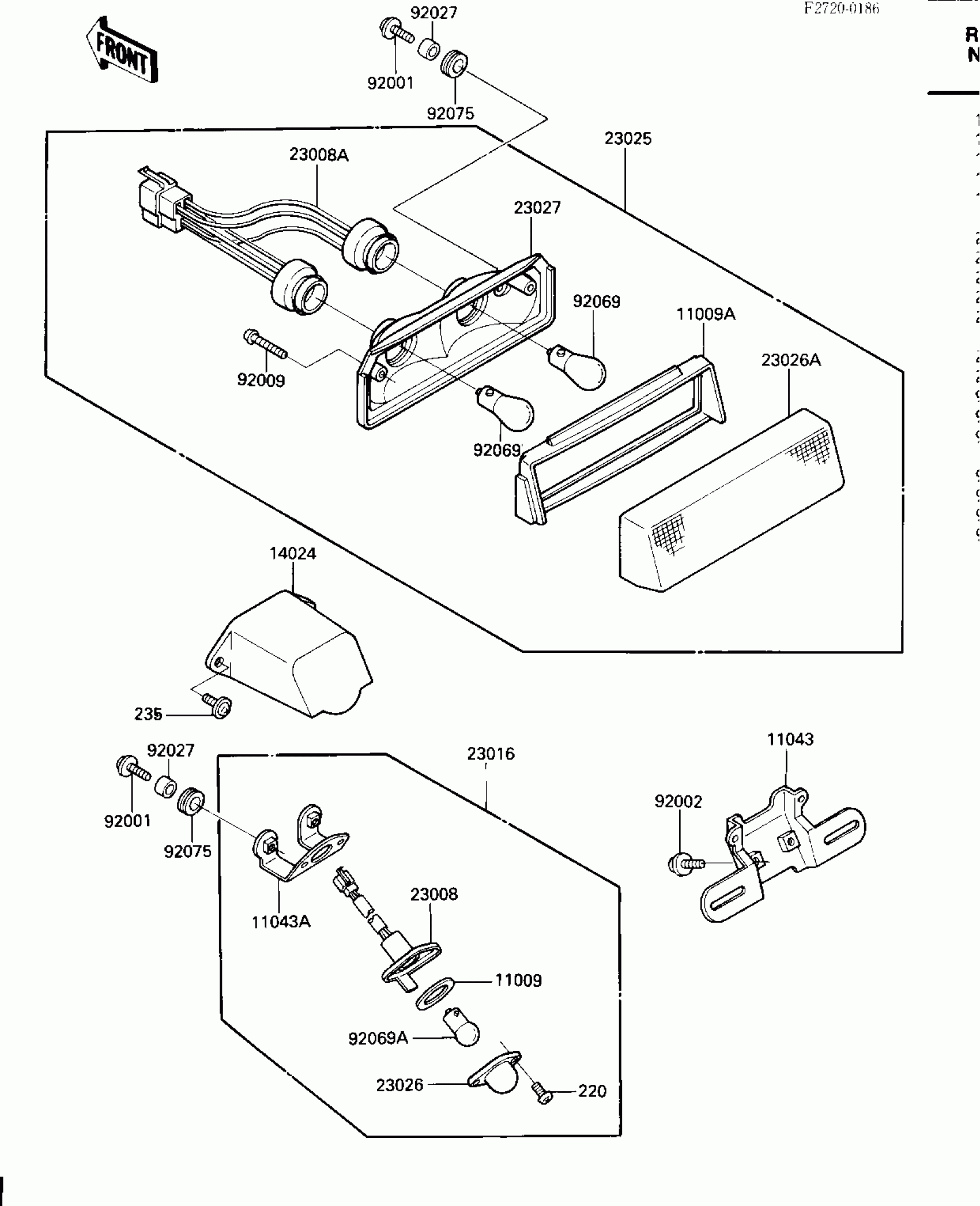

1986 Kawasaki Ninja® 600 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.14

In stock

11009A

GASKET,TAIL LAMP

11009-1404

1

$20.20

In stock

11043

1

$25.68

In stock

11043A

BRACKET,LICENSE PLATE LAMP

11043-1497

1
Out of stock

14024

1

$18.66

In stock

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

1
Out of stock

23008A

1

$37.08

In stock

23016

1

$77.63

In stock

23025

LAMP-TAIL

23025-1105

1
Out of stock

23026

LENS,LAMP

23026-1054

1

$9.02

In stock

23026A

LENS,TAIL LAMP

23026-1056

1

$30.16

In stock

23027

BODY-COMP-TAIL LAMP

23027-1064

1
Out of stock

92001

BOLT,6X20

92001-1773

1

$3.58

In stock

92002

BOLT,6X14

92002-1351

1

$3.43

In stock

92009

SCREW,TAPPING,4X30

92009-1056

1
Out of stock

92027

COLLAR 6.8X10X10.5

92027-120

1

$3.97

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,CASE

92075-222

1

$5.84

In stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

235

SCREW-PAN-WP-CROS,6X16

235C0616

1
Out of stock
