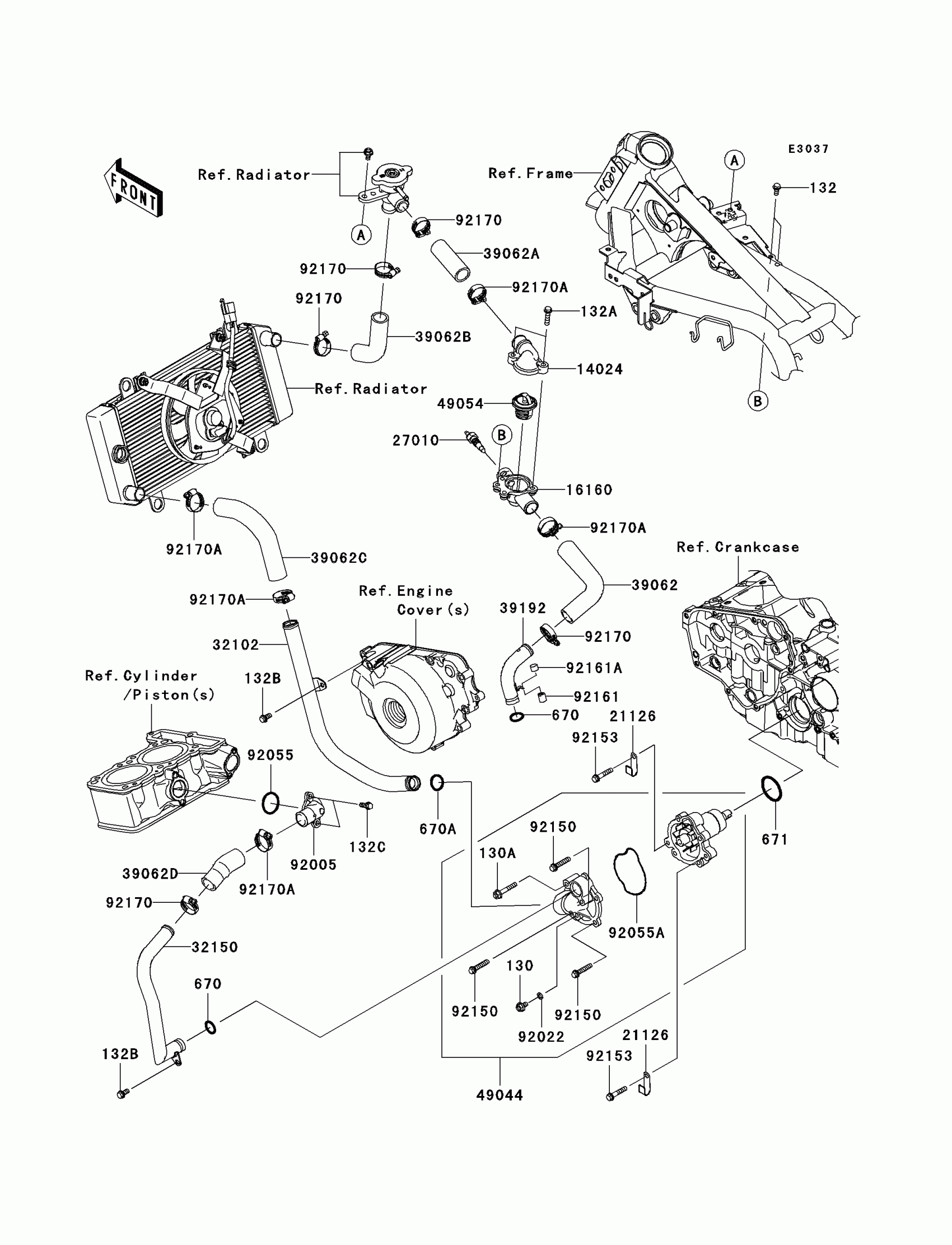

Find the part on the Water Pipe diagram for your 2010 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Ninja® 250R Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130AB0610

1

$3.71

In stock

130A

BOLT-FLANGED,6X35

130BB0635

1

$4.90

In stock

132

1

$1.12

In stock

132A

1

$2.29

In stock

132B

1

$1.73

In stock

132C

1

$2.05

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock

670A

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING

671D2535

1

$4.93

In stock

14024

COVER,THERMOSTAT

14024-1232

1
Out of stock

16160

BODY,THERMO,LWR

16160-0119

1

$46.02

In stock

21126

1

$3.75

In stock

27010

SWITCH,SENSOR WATER

27010-1239

1

$136.56

In stock

32102

PIPE

32102-1531

1
Out of stock

32150

PIPE

32150-1143

1
Out of stock

39062

1

$42.71

In stock

39062A

1

$15.92

In stock

39062B

1

$31.33

In stock

39062C

HOSE-COOLING,RAD.-W/P

39062-0196

1
Out of stock

39062D

1

$11.27

In stock

39192

PIPE-WATER,HEAD-THERMO

39192-0066

1
Out of stock

49044

PUMP-WATER

49044-1086

1

$311.04

In stock

49054

THERMOSTAT

49054-1056

1

$51.04

In stock

92005

FITTING,CYLINDER

92005-1145

1
Out of stock

92022

WASHER,6MM

92022-1976

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92055A

RING-O

92055-1432

1

$9.42

In stock

92150

BOLT

92150-1562

1

$4.08

In stock

92153

BOLT,6X30

92153-0832

1
Out of stock

92161

DAMPER,10X11.5

92161-0690

1

$3.27

In stock

92161A

DAMPER,10X7.5

92161-0691

1

$1.20

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

92170A

CLAMP,HOSE,32MM

92170-1286

1
Out of stock
