1990 Kawasaki Ninja® 250R Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

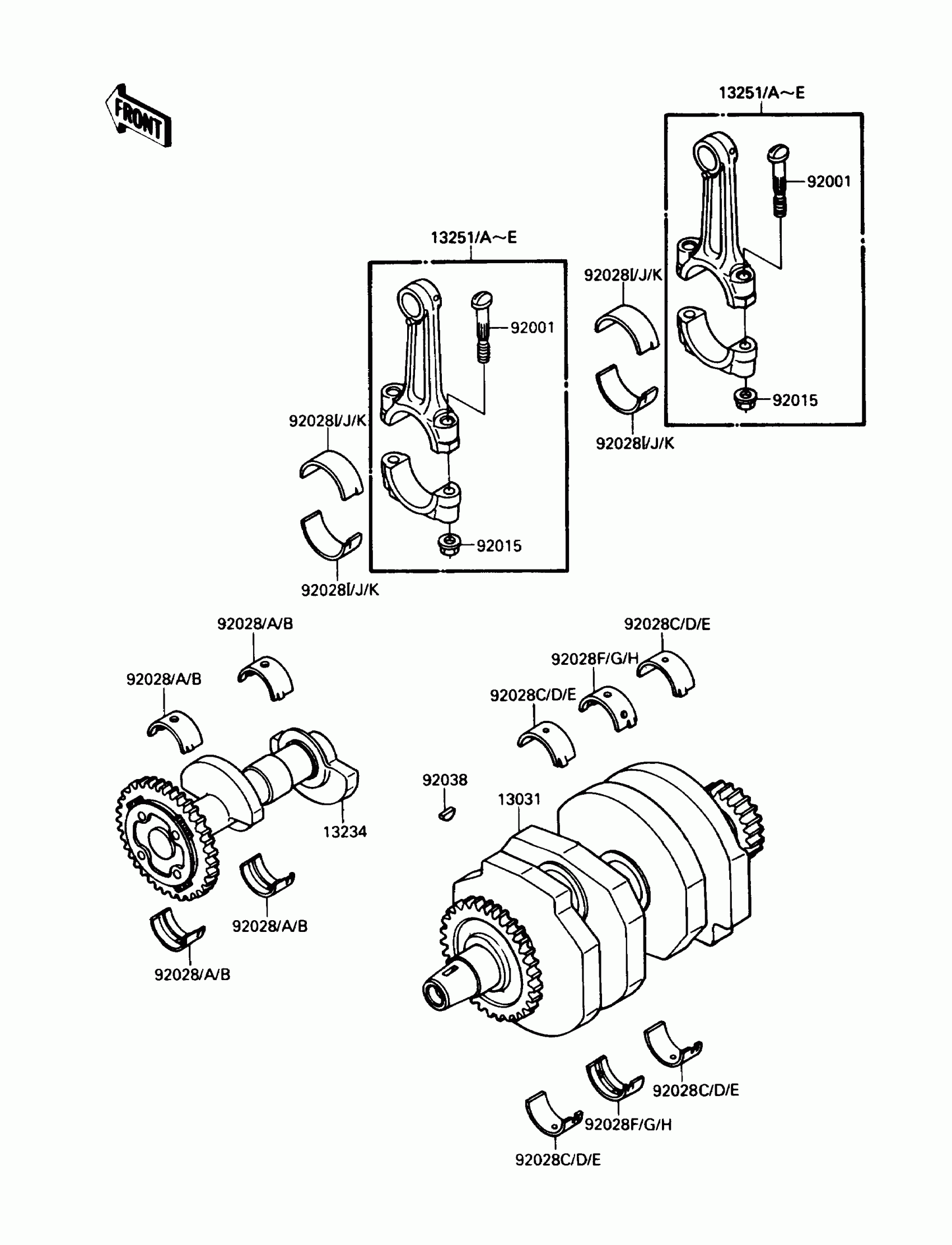

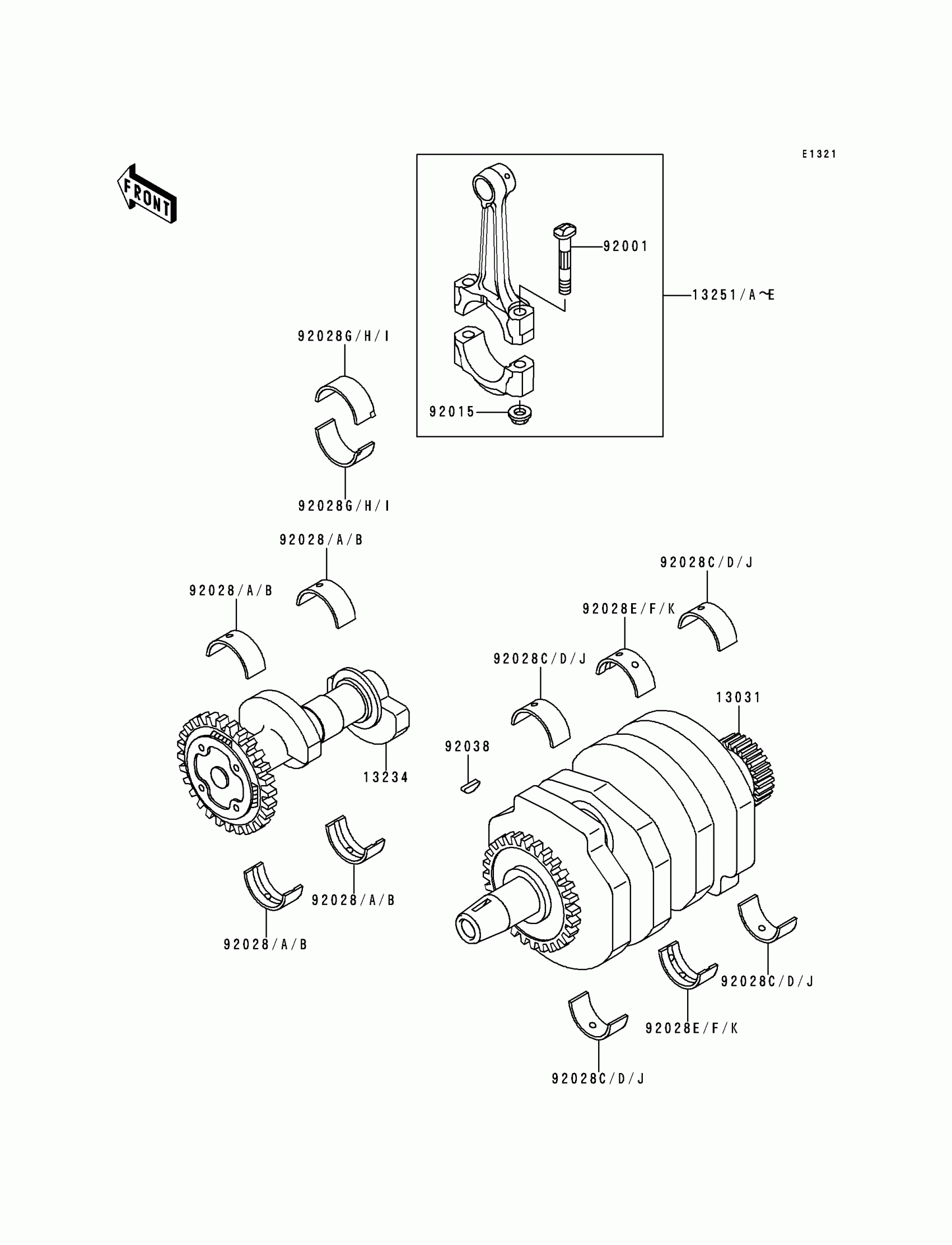

1990 Kawasaki Ninja® 250R Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1247

1
Out of stock

13234

SHAFT-COMP,BALANCER

13234-1065

1
Out of stock

13251

ROD-ASSY-CONNECTING,F

13251-1083-FF

1
Out of stock

13251A

ROD-ASSY-CONNECTING,G

13251-1083-GG

1
Out of stock

13251B

ROD-ASSY-CONNECTING,H

13251-1083-HH

1
Out of stock

13251C

ROD-ASSY-CONNECTING,I

13251-1083-II

1
Out of stock

13251D

ROD-ASSY-CONNECTING,J

13251-1083-JJ

1
Out of stock

13251E

ROD-ASSY-CONNECTING,K

13251-1083-KK

1
Out of stock

92001

1

$6.82

In stock

92015

1

$4.37

In stock

92028

—

$16.83

In stock

92028A

—

$16.83

In stock

92028B

—

$16.83

In stock

92028C

—

$18.32

In stock

92028D

—

$18.44

In stock

92028E

—

$15.41

In stock

92028F

—

$18.44

In stock

92028G

—

$18.44

In stock

92028H

—

$15.36

In stock

92028I

—

$18.32

In stock

92028J

—

$13.53

In stock

92028K

—

$16.12

In stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock
